Standard Ignition Ignition Control Module Connector P/N:S-516
Standard Motor Products

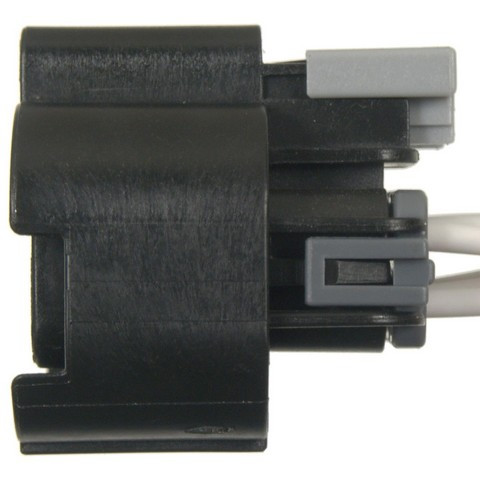

Standard Ignition S-1523 ignition control module connector for the 2004-2007 Chevrolet Malibu and other vehicles joins the ignition control module to the vehicle wiring. It carries the module's electrical connections through nine wires.
A cracked or melted housing, corroded terminals or a plug that no longer holds firmly can go along with misfires, hard starting or a stalling engine. Before you replace the connector, rule out the ignition control module, the coils and the wiring behind it, because those faults can look the same.
The 2004-2007 Chevrolet Malibu, 2005-2009 Chevrolet Cobalt and 2006-2009 Chevrolet HHR are among the cars this connector fits, along with a wide range of other models. The 2006-2009 Chevrolet HHR takes one connector, and this listing is one connector. Look up your own year and model in the "Vehicles it fits" section to see whether yours is covered.
Fit and size
Build and materials

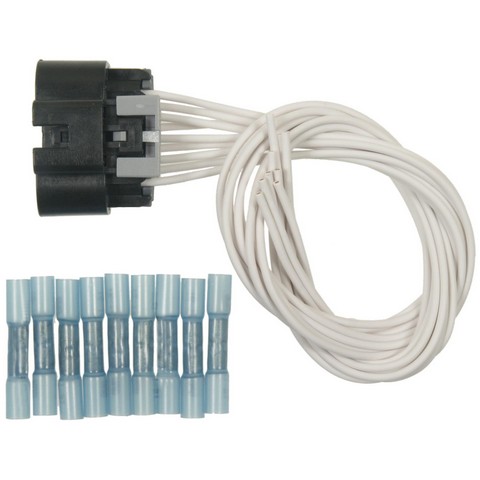

One ignition control module connector with its wiring harness and nine butt splices. A dust shield is not included.
Interchange: PT1021 · 1078 · EC1020 · 15814799 · 88987910 · 88988552
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Standard Ignition S-1523 connector fit a 2004-2007 Chevrolet Malibu?
Yes. Standard Ignition S-1523 fits the 2004-2007 Chevrolet Malibu. Other years and models are covered in the "Vehicles it fits" section of this page.
Does the S-1523 ignition control module connector come with wiring and splices?
Yes. This connector comes with its wiring harness and nine butt splices. A dust shield is not included.
What wire size does the S-1523 connector use?
The nine wires are 16 gauge, and the nine female blade terminals attach by pushing on. The contact terminals are metal and the body is plastic.
Is this ignition control module connector weatherproof?
Yes. The connector is weatherproof sealed and weather resistant, with a plastic body and metal contact terminals.
Do I need special tools to install the Standard Ignition S-1523 connector?
No. Standard Ignition S-1523 is factory-assembled and designed to go in without specialized tools. Wire connectors and extended lead wires are included where applicable.
