Ignition Lock and Cylinder Switch for 1983-1986 Nissan 720 - Standard Ignition US-241

$289.99

Vehicles this part fits

    Part number: US-241
    UPC: 091769258382
    Condition: New
    Weight: 1.30 LBS
    Item Package Quantity: 1
    $289.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-241
    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-241
    $289.99
    $289.99

    Standard Ignition US-241 ignition lock and cylinder switch for the 1983-1986 Nissan 720 combines the key lock cylinder and the ignition switch in one unit. It mounts on the column and takes the key that starts the vehicle.

    • Copper alloy conductors for low resistive losses
    • 100% tested for mechanical and electrical switching performance
    • Seven male blade terminals and three connectors, male and female
    • Two coded keys included; the keys are not programmable
    • Mounting bracket included with the switch

    Quick facts

    • Part: Standard Ignition US-241 ignition lock and cylinder switch
    • Fits: 1983-1986 Nissan 720
    • Condition: New

    A key that sticks or turns loosely, or an engine that will not crank, can mean this ignition lock and cylinder switch is worn, though a weak battery or a failing starter can be behind those signs as well.

    Fits

    This ignition lock and cylinder switch is a direct-fit replacement for the 1983-1986 Nissan 720.

    Specifications

    Fit and size

    • Mounting location: column
    • Quantity per vehicle: 1
    • Connectors: 3, polygon shape
    • Connector gender: male and female
    • Terminal quantity: 7

    Build and materials

    • Terminal type: blade, male
    • Conductors: copper alloy
    • Coding: coded
    • Key programmable: No
    • Keys: 2 included
    • Condition: new
    • Country of origin: Taiwan

    In the box

    One ignition lock and cylinder switch with two keys and a mounting bracket. This listing holds one switch, and the 1983-1986 Nissan 720 takes one. Mounting hardware and an instruction sheet are not included, so plan on new fasteners, since the old ones may not be reusable.

    Interchange: CS606L · KS6207 · LC62931 · 48700F5400 · 48700F5925 · 4871020W10 · D8700F5400

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CS606L, KS6207, LC62931, 48700F5400, 48700F5925, 4871020W10, D8700F5400, US-241

    Frequently Asked Questions

    Does the Standard Ignition US-241 ignition lock and cylinder switch fit the 1983-1986 Nissan 720?

    Yes. Standard Ignition US-241 is listed for the 1983-1986 Nissan 720, and the vehicle takes one.

    How many keys come with this ignition lock and cylinder switch?

    Standard Ignition US-241 includes two coded keys and a mounting bracket. Mounting hardware and an instruction sheet are not included.

    Can the keys for this ignition lock and cylinder switch be programmed?

    No. This part is listed as not key programmable, and its two keys are coded.

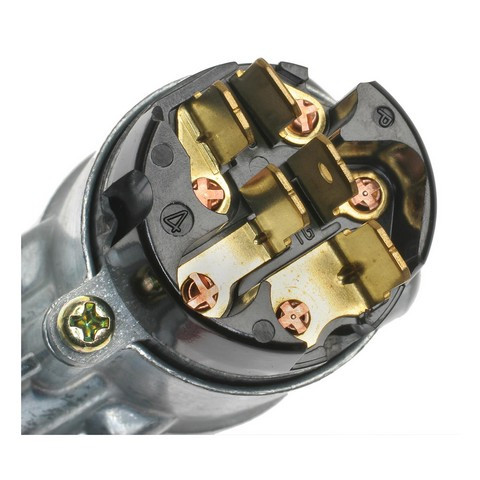

    What connectors and terminals does this ignition lock and cylinder switch have?

    This ignition lock and cylinder switch has three connectors, male and female, in a polygon shape. It carries seven male blade terminals.

    Is every Standard Ignition US-241 ignition lock and cylinder switch tested before use?

    Yes. Each unit is 100% tested to verify both its mechanical and its electrical switching performance.
