Switch for 1993-1995 Suzuki Samurai - Standard Ignition US-824

$331.99

Vehicles this part fits

    Part number: US-824
    UPC: 707390943572
    Condition: New
    Weight: 1.50 LBS
    Item Package Quantity: 1
    $331.99
    Adding to cart… The item has been added

    Have questions?

    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-824
    Standard Ignition Ignition Lock Cylinder and Switch P/N:US-824
    $331.99
    $331.99

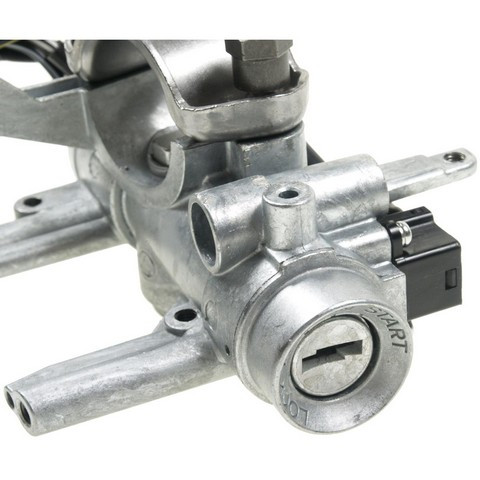

    Standard Ignition US-824 switch for the 1993-1995 Suzuki Samurai combines a lock cylinder and an ignition switch in one unit. Turning the key routes power to the ignition circuits, and the unit mounts on the column.

    • Copper alloy conductors for low resistive losses and good electrical conductivity
    • 100% tested for mechanical and electrical switching performance
    • Lock cylinder with two keys included

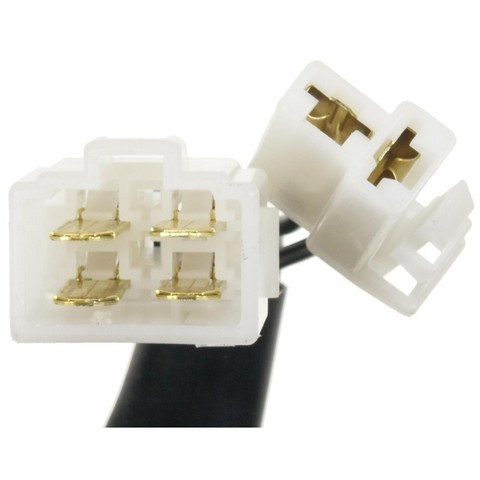

    • Six male blade terminals with two female connectors

    Quick facts

    • Part: Standard Ignition US-824 switch
    • Fits: 1993-1995 Suzuki Samurai
    • Condition: New

    A key that sticks or will not turn, or power that drops out when you turn it, can mean the lock cylinder or switch is worn. Before you replace this switch, rule out a weak battery, loose battery terminals and a worn key, since each can look the same from the driver's seat.

    Fits

    It works as a direct-fit ignition switch for the 1993-1995 Suzuki Samurai.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Mounting location: column
    • Terminals: 6, male blade
    • Connectors: 2, female

    Build and materials

    • Type: ignition switch with lock cylinder
    • Keys: 2 included
    • Coding: coded
    • Mounting bracket: included
    • Condition: New
    • Country of origin: Japan

    In the box

    One switch with its lock cylinder, two keys and a mounting bracket. This listing holds one switch, and the 1993-1995 Suzuki Samurai takes one. Hardware is not included, so plan on new fasteners, since the old ones may not be reusable.

    Interchange: CS1184 · KS7184 · LA2991 · 3710083880

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CS1184, KS7184, LA2991, US-824, 3710083880

    Frequently Asked Questions

    Is the US-824 a Samurai ignition switch that fits the 1993-1995 Suzuki Samurai?

    Yes. Standard Ignition US-824 is a direct-fit ignition switch for the 1993-1995 Suzuki Samurai, and the vehicle takes one.

    Does this Standard Ignition switch come with keys?

    Yes. The US-824 includes two keys with its lock cylinder, plus a mounting bracket. Mounting hardware is not included.

    What kind of terminals and connectors does this switch have?

    This switch has six male blade terminals and two female connectors.

    Is a key that will not turn a sign I need a new ignition switch with lock cylinder?

    It can be. A key that sticks or will not turn, or power that cuts out when you turn it, can come from a worn lock cylinder or switch. A shop can test the switch.

    Does the US-824 interchange with KS7184?

    Yes. KS7184 is on the Interchange line for the US-824, along with CS1184, LA2991 and 3710083880.
