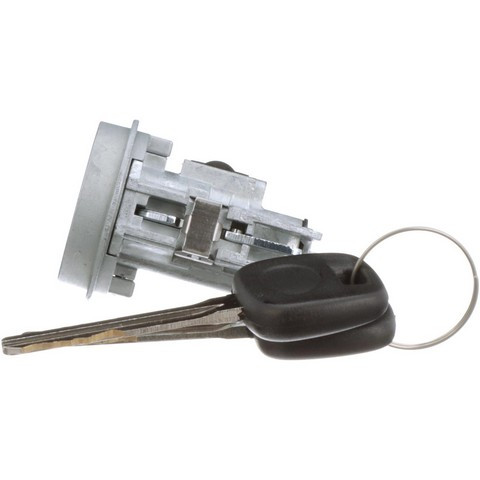

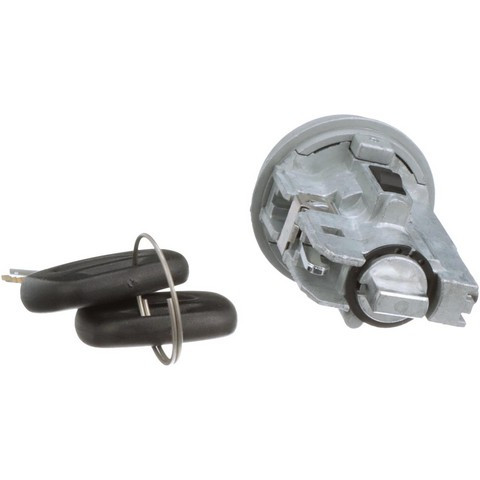

Standard Ignition US-430L ignition lock cylinder for the 2004 Toyota Tacoma 4-cylinder 2.4L or V6 3.4L, the 2004-2019 Tacoma 4-cylinder 2.7L, the 2005-2008 Tacoma V6 4.0L, the 2014-2015 Tacoma V6 4.0L, the 2016-2019 Tacoma V6 3.5L and other vehicles takes the ignition key in the steering column and turns the ignition switch. It is engineered for Toyota vehicles.
- High-grade aluminum construction for strength under demanding conditions
- Solid brass tumblers and chrome-plated brass keys
- Die-cast zinc lock cores
- Mechanical and electrical performance testing for dependable operation
- Coded cylinder supplied with two keys
Quick facts
- Part: Standard Ignition US-430L ignition lock cylinder
- Fits: 2004 Toyota Tacoma 4-cylinder 2.4L or V6 3.4L, the 2004-2019 Tacoma 4-cylinder 2.7L, the 2005-2008 Tacoma V6 4.0L, the 2014-2015 Tacoma V6 4.0L, the 2016-2019 Tacoma V6 3.5L and other vehicles
- Condition: New
A key that sticks, turns hard or feels loose in the ignition can mean the lock cylinder is worn. A worn key or the ignition switch can be behind similar signs, so find the cause before you buy a new cylinder.
Fits
Besides the Tacomas above, it is an ignition lock cylinder for the 2010-2012 Toyota Tundra V6 4.0L and for the 2011 Toyota Sienna 4-cylinder 2.7L or V6 3.5L; each takes one.
Specifications
Fit and size
- Mounting location: column
- Quantity per vehicle: 1
- Keys: 2
Build and materials
- Coding: coded
- Condition: new
- Country of origin: Taiwan
In the box
One ignition lock cylinder, two keys and instructions. A mounting bracket is not included, and the old one may not be reusable.
Installation notes
- Instructions come with the part for the steps.
- Direct-fit OE replacement, designed to match the original for easy installation.
Interchange: CS904L · KS6904L · LC64780 · 6905704020 · 6905708010 · 690570C030 · 6905752530
This part cross-references / interchanges with the following part numbers:
CS904L, KS6904L, LC64780, US-430L, 6905704020, 6905708010, 690570C030, 6905752530
Frequently Asked Questions
Does the Standard Ignition US-430L work as a Toyota Tacoma ignition lock cylinder for a 2016-2019 Tacoma V6 3.5L?
Yes. Standard Ignition US-430L fits the 2016-2019 Toyota Tacoma V6 3.5L, and it takes one. For other years or engines, find your car in the "Vehicles it fits" section.
Does the Standard Ignition US-430L come with keys and a mounting bracket?
Yes, it includes two keys and instructions. No, the mounting bracket is not included.
Are the keys for this ignition lock cylinder made of brass?
Yes, the keys are chrome-plated brass and the tumblers are solid brass. The cylinder is coded and comes with two keys.
My key sticks or turns hard in the ignition. Could the lock cylinder be worn?
Yes, it can be. Look at the key for wear with the vehicle off, and have a shop test the ignition if the key still binds.
Does the Standard Ignition US-430L replace part number 6905704020?
Yes, 6905704020 is among the numbers this Standard Ignition US-430L ignition lock cylinder replaces.
