Neutral Safety Switch for 2005-2015 Toyota Tacoma & More - Standard Ignition NS-517

$234.99

Vehicles this part fits

    Part number: NS-517
    UPC: 025623513300
    Condition: New
    Weight: 0.30 LBS
    Item Package Quantity: 1
    $234.99
    Adding to cart… The item has been added

    Have questions?

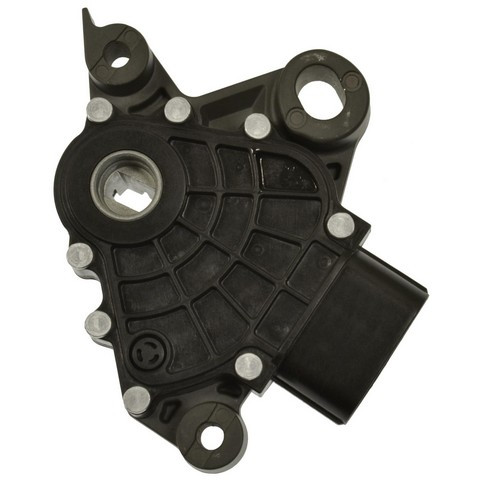

    Standard Ignition Neutral Safety Switch P/N:NS-517
    Standard Ignition Neutral Safety Switch P/N:NS-517
    $234.99
    $234.99

    Standard Ignition NS-517 neutral safety switch for the 2005-2015 Toyota Tacoma and other vehicles allows the engine to start only in Park or Neutral. It is made to OE spec for fit, form and function and replaces damaged OE units.

    • Electrically operated switch that restores neutral safety function
    • Metal construction chosen to withstand extreme conditions
    • 100% end-of-line testing on every switch
    • Bolt-mount body with a rectangular female connector

    Quick facts

    • Part: Standard Ignition NS-517 neutral safety switch
    • Fits: 2005-2015 Toyota Tacoma and other vehicles
    • Material: Metal
    • Condition: New

    A worn or failing switch can mean the engine will not crank in Park or Neutral, or that it cranks in another gear. Before you replace this switch, rule out a weak battery, a faulty starter and a damaged connector, since a no-crank has several possible sources.

    Fits

    This direct-fit replacement fits the 2005-2015 Toyota Tacoma and the 2010 Toyota 4Runner, with one switch per vehicle.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Length: 4 in (101.6 mm)
    • Mounting: bolt mount
    • Voltage: 12V

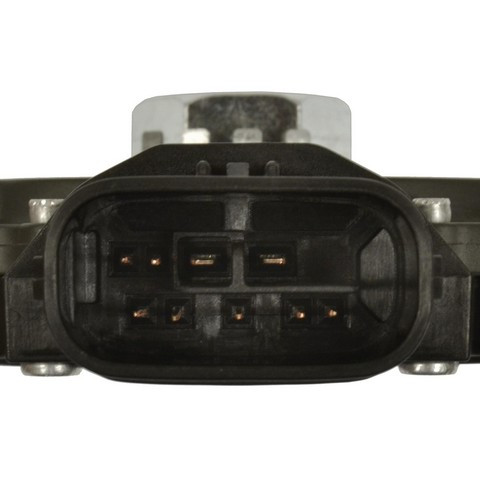

    • Connector: 1 rectangular, female
    • Terminals: 9, male, blade and pin

    Build and materials

    • Material: Metal
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One neutral safety switch. A gasket and mounting hardware are not included, so plan on new bolts, as the old ones may not be reusable.

    Interchange: S41299 · SW4984 · NS6735 · 8454035050

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    S41299, SW4984, NS6735, NS-517, 8454035050

    Frequently Asked Questions

    Is this a 2005-2015 Toyota Tacoma neutral safety switch replacement?

    Yes. Standard Ignition NS-517 fits the 2005-2015 Toyota Tacoma, and each one takes a single switch.

    Is NS-517 a 2010 Toyota 4Runner neutral safety switch?

    Yes. Standard Ignition NS-517 fits the 2010 Toyota 4Runner, which takes one switch.

    Does the NS-517 neutral safety switch come with a gasket or mounting bolts?

    No. This listing is one switch; a gasket and mounting hardware are not included, so plan on new bolts.

    How many terminals does the NS-517 neutral safety switch have?

    This neutral safety switch has nine male blade and pin terminals and one rectangular female connector. It runs on 12V and uses a bolt mount.

    Does this neutral safety switch replace number S41299?

    Yes. Standard Ignition NS-517 is listed as a replacement for S41299, so you can match it to that number.
