Starter Solenoid for 1985-1987 Nissan Sentra & More - Standard Ignition SS-252

$107.99

Vehicles this part fits

    Part number: SS-252
    UPC: 091769026646
    Condition: New
    Weight: 1.60 LBS
    Item Package Quantity: 1
    $107.99
    Adding to cart… The item has been added

    Have questions?

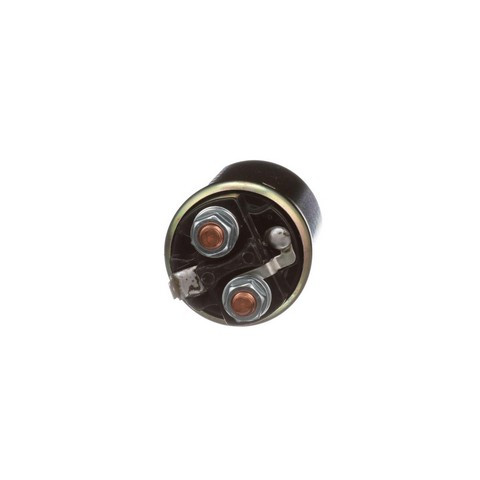

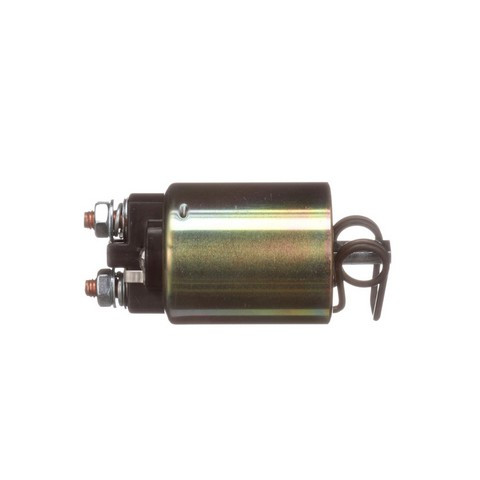

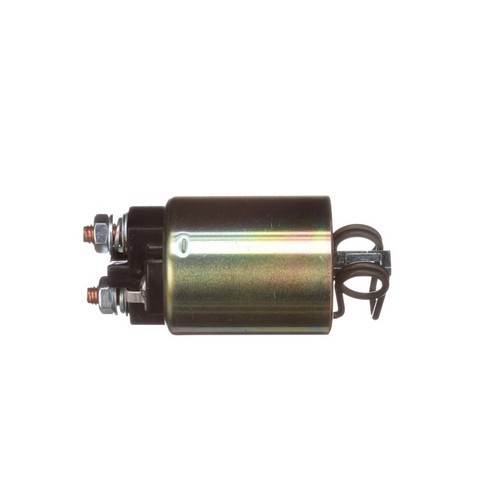

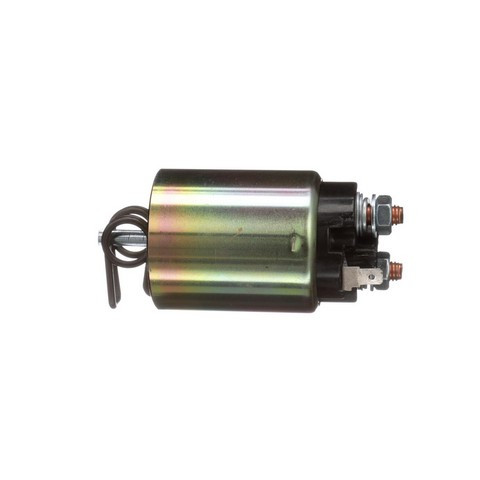

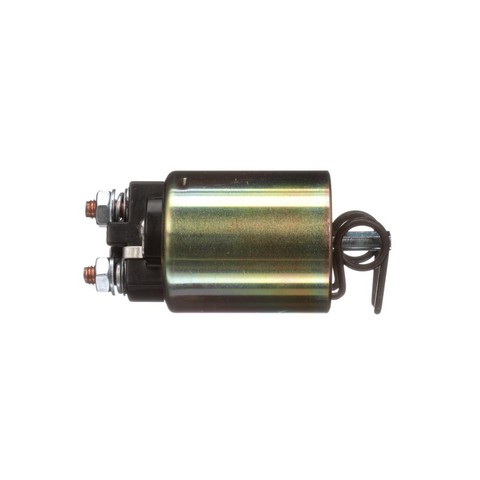

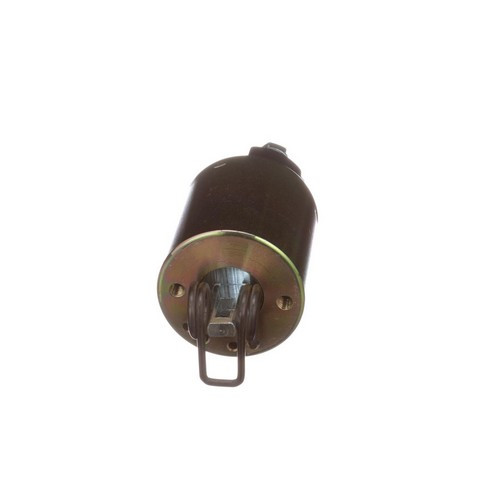

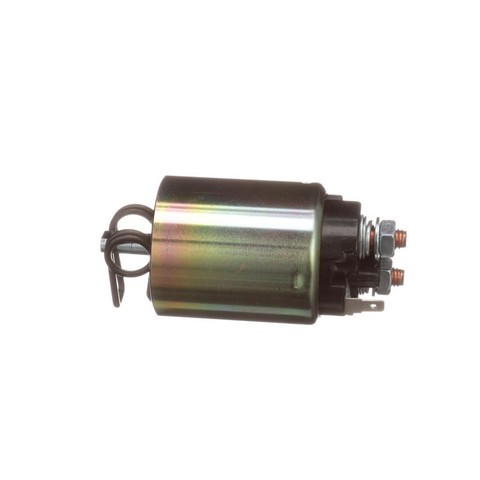

    Standard Ignition Starter Solenoid P/N:SS-252
    Standard Ignition Starter Solenoid P/N:SS-252
    $107.99
    $107.99

    Standard Ignition SS-252 starter solenoid for the 1985-1987 Nissan Sentra 4-cylinder 1.6L, the 1987 Sentra 4-cylinder 1.7L and other vehicles connects battery power to the starter when you turn the key.

    • Polyester-insulated magnet wire, cadmium-plated copper discs and solid contact bolts reduce voltage drop and guard against overload
    • Heavy-duty copper contacts reduce the effect of arcing and extend solenoid life
    • Pure copper windings build a stronger magnetic field
    • Pure copper battery terminal studs reduce resistance to permit higher current flow, even in the hottest environments

    Quick facts

    • Part: Standard Ignition SS-252 starter solenoid
    • Fits: the 1985-1987 Nissan Sentra 4-cylinder 1.6L, the 1987 Sentra 4-cylinder 1.7L and other vehicles
    • Condition: New

    A slow crank, a single click or no crank at all when you turn the key can mean the solenoid contacts are worn. A weak battery, corroded cables or a worn starter motor can be behind the same signs, so find the cause before buying. Each engine takes one solenoid.

    Fits

    It also fits the 1985-1989 Nissan Stanza 4-cylinder 2.0L and the 1988 Nissan Hikari 4-cylinder 1.6L, among other Nissan models. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Length: 2.39 in (60.706 mm)
    • Voltage: 12 V
    • Mounting holes: 6
    • Lug hole diameter: 0.18 in (4.572 mm)
    • Terminals: 3

    Build and materials

    • Terminal type: stud and blade, male
    • Continuous duty: No
    • Condition: New
    • Country of origin: China

    In the box

    One starter solenoid. Hardware, a mounting bracket and a spring are not included; plan on new fasteners, since the old ones may not be reusable.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the right Nissan Sentra solenoid for a 1985-1987 model with the 4-cylinder 1.6L?

    Yes. Standard Ignition SS-252 fits the 1985-1987 Nissan Sentra 4-cylinder 1.6L and the 1987 Sentra 4-cylinder 1.7L. Open the "Vehicles it fits" section for other models.

    Does the SS-252 work on a 1985-1989 Nissan Stanza with the 4-cylinder 2.0L?

    Yes. The SS-252 is listed for the 1985-1989 Nissan Stanza 4-cylinder 2.0L, and that engine takes one solenoid.

    Does this starter solenoid come with mounting hardware?

    No. Hardware, a mounting bracket and a spring are not included, so you need to supply your own fasteners. The listing is one solenoid.

    What terminals and voltage does the Standard Ignition SS-252 have?

    Standard Ignition SS-252 runs on 12 volts and has three male terminals of the stud and blade type. Its length is 2.39 in (60.706 mm).

    Why does this solenoid use copper contacts?

    The heavy-duty copper contacts reduce the effect of arcing and extend solenoid life. The pure copper windings build a stronger magnetic field.
