Starter Solenoid for 1985 Buick Electra & More - Standard Ignition SS-306

$119.99

Vehicles this part fits

    Part number: SS-306
    UPC: 091769027131
    Condition: New
    Weight: 2.40 LBS
    Item Package Quantity: 1
    $119.99
    Adding to cart… The item has been added

    Have questions?

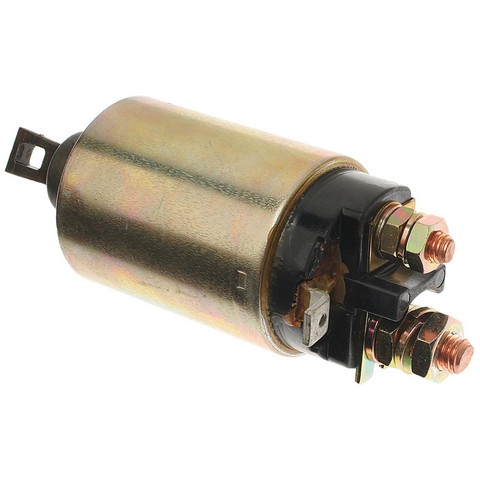

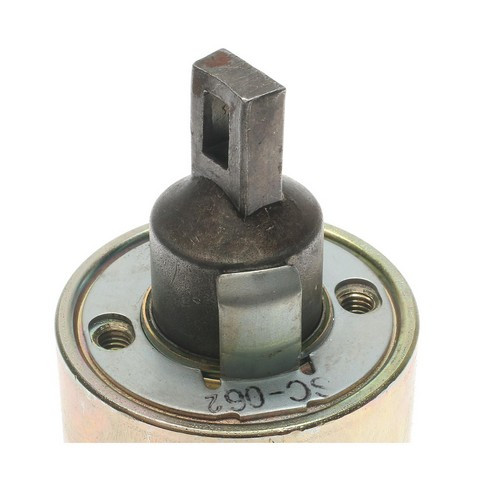

    Standard Ignition Starter Solenoid P/N:SS-306
    Standard Ignition Starter Solenoid P/N:SS-306
    $119.99
    $119.99

    Standard Ignition SS-306 starter solenoid for the 1985 Buick Electra V6 3.0L, 3.8L, 4.3L, V8 5.0L or 5.7L and other vehicles closes the circuit that sends battery current to the starter motor.

    • Polyester-insulated magnet wire, cadmium-plated copper discs and solid contact bolts reduce voltage drop and protect against electrical overload
    • Heavy-duty copper contacts reduce the effect of arcing and extend solenoid life
    • Pure copper windings create a stronger magnetic field
    • Pure copper battery terminal studs reduce resistance to permit higher current flow, even in very hot conditions

    Quick facts

    • Part: Standard Ignition SS-306 starter solenoid
    • Fits: the 1985 Buick Electra V6 3.0L, 3.8L, 4.3L, V8 5.0L or 5.7L and other vehicles
    • Condition: New

    A click without cranking, slow cranking or a starter that does not respond can mean this solenoid is worn, though a weak battery or the starter motor itself can be behind the same signs, so find the cause first. This listing is one solenoid, and each vehicle takes one.

    Fits

    This solenoid is listed for a wide range of Buick, Oldsmobile, Cadillac, Chevrolet and Pontiac models. Other listed cars include the 1982 Oldsmobile Cutlass Ciera 4-cylinder 2.5L, V6 2.8L or 3.0L, the 1982-1985 Cutlass Ciera V6 4.3L and the 1985 Oldsmobile 98 V6 3.0L, 3.8L or 4.3L. If your car is not named here, look up its year and engine in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Voltage: 12 V
    • Length: 2.75 in (69.85 mm)
    • Mounting holes: 2
    • Lug hole diameter: 0.18 in (4.572 mm)
    • Terminals: 3, stud and blade type, male

    Build and materials

    • Condition: New
    • Finish: dichromate, plastic
    • Continuous duty: No
    • Country of origin: Japan

    In the box

    One starter solenoid. Mounting hardware, a mounting bracket and a spring are not included, so plan on new hardware rather than reusing the old pieces.

    Interchange: S5087 · STSB1126 · ST167 · 22516196 · 25516196

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    S5087, STSB1126, ST167, 22516196, 25516196

    Frequently Asked Questions

    Does the Standard Ignition SS-306 fit the 1985 Oldsmobile 98 V6 3.8L?

    Yes. Standard Ignition SS-306 is listed for the 1985 Oldsmobile 98 V6 3.0L, 3.8L or 4.3L. For any other car, look it up in the "Vehicles it fits" section.

    Does this Standard Ignition starter solenoid come with mounting hardware?

    No. Standard Ignition SS-306 is one solenoid; mounting hardware, a mounting bracket and a spring are not included.

    What voltage and terminals does this starter solenoid have?

    This starter solenoid is rated 12 volts and has three male terminals of the stud and blade type. It is 2.75 inches long with two mounting holes.

    Is SS-306 interchangeable with ST167?

    Yes. ST167 is on the interchange list for this solenoid, along with S5087, STSB1126, 22516196 and 25516196.

    Why does this solenoid use copper contacts and windings?

    Heavy-duty copper contacts limit the effect of arcing, which helps the solenoid last longer, and the pure copper windings build a stronger magnetic field.
