Starter Solenoid for 1991-1993 Toyota Previa - Standard Ignition SS-485

$283.99

Vehicles this part fits

    Part number: SS-485
    UPC: 091769524104
    Condition: New
    Weight: 0.70 LBS
    Item Package Quantity: 1
    $283.99
    Adding to cart… The item has been added

    Have questions?

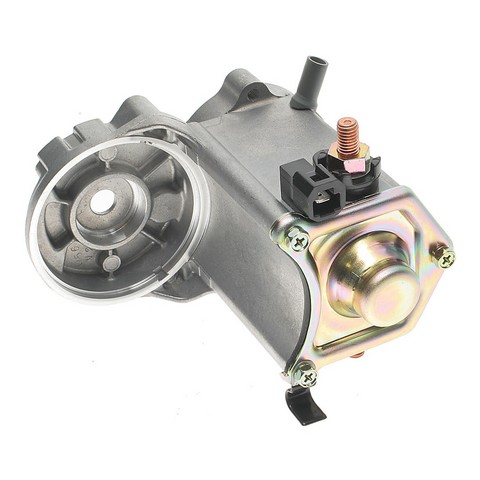

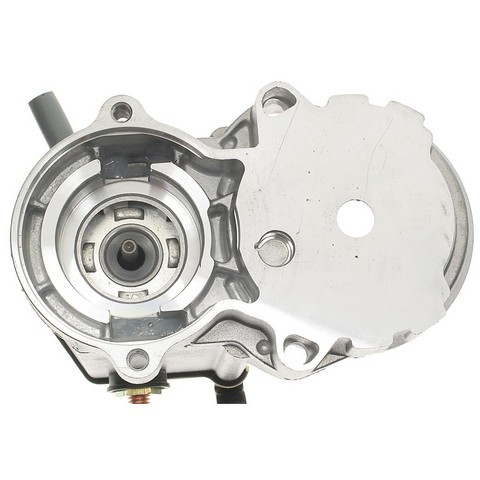

    Standard Ignition Starter Solenoid P/N:SS-485
    Standard Ignition Starter Solenoid P/N:SS-485
    $283.99
    $283.99

    Standard Ignition SS-485 starter solenoid for the 1991-1993 Toyota Previa 4-cylinder 2.4L closes the circuit that sends battery power to the starter motor. This Standard Ignition starter solenoid is made to deliver full battery power to the starter.

    • Polyester-insulated magnet wire, cadmium-plated copper discs and solid contact bolts reduce voltage drop
    • Heavy-duty copper contacts reduce the effect of arcing and extend solenoid life
    • Pure copper windings create a stronger magnetic field
    • Pure copper battery terminal studs reduce resistance to permit higher current flow, even in the hottest environments

    Quick facts

    • Part: Standard Ignition SS-485 starter solenoid
    • Fits: 1991-1993 Toyota Previa 4-cylinder 2.4L
    • Condition: New

    A slow crank, a single click or no crank at all when you turn the key can mean the solenoid is worn, though a weak battery or the starter motor itself can produce those same symptoms, so find the cause before you replace anything.

    Fits

    It is a direct-fit replacement for the 1991-1993 Toyota Previa 4-cylinder 2.4L, which takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Length: 4.2 in (106.68 mm)
    • Mounting holes: 4
    • Lug hole diameter: 0.19 in (4.826 mm)
    • Voltage: 12 V
    • Terminals: 3, screw and blade, male
    • Connector: 1, female

    Build and materials

    • Condition: New
    • Country of origin: United States

    In the box

    One starter solenoid. Mounting hardware, mounting bracket and spring are not included, so plan on new hardware rather than reusing the old.

    Interchange: S35906 · SS1017 · ST594 · 2815076050 · 2815076101

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    S35906, SS1017, ST594, SS-485, 2815076050, 2815076101

    Frequently Asked Questions

    Is the Standard Ignition SS-485 right for a 1991-1993 Toyota Previa 4-cylinder 2.4L?

    Yes. Standard Ignition SS-485 is a direct-fit starter solenoid for the 1991-1993 Toyota Previa 4-cylinder 2.4L, and that engine takes one.

    Does this starter solenoid come with mounting hardware or a bracket?

    No. Standard Ignition SS-485 is the solenoid alone. Mounting hardware, a mounting bracket and a spring are not included, so plan on new hardware.

    What voltage and terminals does this solenoid have?

    It is a 12-volt solenoid with three male screw-and-blade terminals and one female connector.

    What does a failing starter solenoid sound like?

    A single click, or a slow crank or no crank when you turn the key, can be signs of a worn solenoid. A shop can test the starting circuit to confirm it.

    Does the SS-485 replace the ST594 starter solenoid?

    Yes. Standard Ignition SS-485 is listed as a replacement for ST594.
