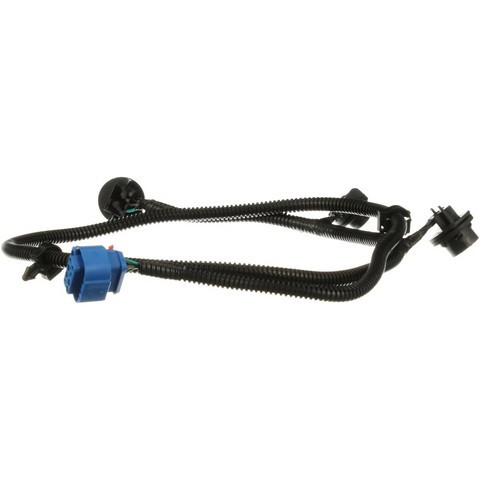

Standard Ignition S2622 left tail light wiring harness for the 2014-2015 Chevrolet Silverado 1500 V6 4.3L, V8 5.3L or 6.2L and other vehicles carries current between the vehicle wiring and the left tail light. It is a taillight connector with its wiring harness included.
- Connector tested 100% for mechanical and electrical fit, form and function
- Housing made from polyamide resins for long connector life in harsh environments
- Terminals made from high grade materials such as copper alloy, brass and phosphor bronze
- Rectangular connector with four female blade terminals on four 20 ga. wires
- 48-inch harness length
Quick facts
- Part: Standard Ignition S2622 tail light wiring harness
- Fits: 2014-2015 Chevrolet Silverado 1500 V6 4.3L, V8 5.3L or 6.2L and other vehicles
- Position: Left
- Material: Polyamide resin housing
- Condition: New
A left tail light that flickers, works only now and then or stays dark can mean the harness has corroded terminals, melted insulation or broken wires. If the harness is the cause, this one replaces it. These signs alone do not prove the harness is the problem, since a burned-out bulb is another common reason a tail light goes dark.
Fits
It is listed for a wide range of Chevrolet and GMC models, including the 2015 Chevrolet Silverado 2500 HD V8 6.0L or 6.6L and the 2015 Silverado 3500 HD V8 6.0L or 6.6L. Each takes one for the left side; the right side is a separate part.
Specifications
Fit and size
- Position: Left
- Quantity per vehicle: 1
- Connector shape: Rectangular, 1 connector
- Terminal quantity: 4
- Wire quantity: 4
- Harness length: 48 in
- Housing length: 1 1/4 in
- Gauge: 20 ga.
Build and materials
- Terminal type: Blade, female
- Housing: Polyamide resins
- Terminals: Copper alloy, brass and phosphor bronze
- Wiring harness: Included
- Condition: New
- Country of origin: China
In the box
One tail light wiring harness with its connector. The bulb and the retainer are not included.
Interchange: PT2608 · CONB11328 · LS2522 · 23141278
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
PT2608, CONB11328, LS2522, 23141278
Frequently Asked Questions
Does the Standard Ignition S2622 fit the 2015 Chevrolet Silverado 2500 HD V8 6.6L?
Yes. Standard Ignition S2622 is the left-side harness for the 2015 Chevrolet Silverado 2500 HD V8 6.0L or 6.6L. For other vehicles, look in the "Vehicles it fits" section.
Does the S2622 left tail light harness come with a bulb?
No. The bulb and the retainer are not included. This listing is one left tail light wiring harness with its connector.
How long is the Standard Ignition S2622 tail light wiring harness?
Standard Ignition S2622 is 48 inches long. It has four 20 ga. wires and four female blade terminals.
What are the terminals on this left tail light wiring harness made of?
The terminals are made from materials such as copper alloy, brass and phosphor bronze. The housing is made from polyamide resins.
What can I look for on a left tail light harness that may be failing?
With the lights off, look for corroded terminals, melted insulation or loose wires at the connector. Flickering or a dead lamp in driving can come from a worn harness, and a shop can test the circuit.
