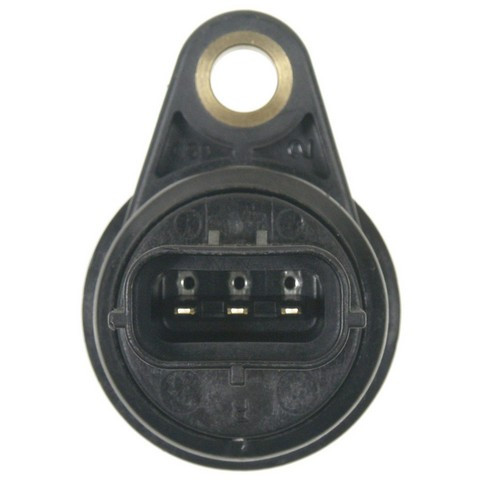

Standard Ignition SC254 vehicle speed sensor for the 1999-2001 Suzuki Vitara sends speed signals that transmission shifting and cruise control rely on. When original equipment fails, it is designed to fix the inherent failure issues.
- Withstands extreme conditions, gunk and transmission fluid contamination
- Extensive testing by a quality assurance team for reliability
- Rectangular female connector with three male blade terminals
- Bolt mount with one mounting hole
Quick facts
- Part: Standard Ignition SC254 vehicle speed sensor
- Fits: 1999-2001 Suzuki Vitara
A failing speed sensor can show up as a speedometer that reads wrong or not at all, odd transmission shifts, or cruise control that will not hold. Before replacing anything, look over the connector and wiring with the engine off for damage, corrosion or fluid, since a poor connection can look like a bad sensor.
Fits
It is a direct-fit OE replacement for the 1999-2001 Suzuki Vitara.
Specifications
Fit and size
- Quantity per vehicle: 1
- Mounting hole quantity: 1
- Connector quantity: 1
- Terminal quantity: 3
Build and materials
- Attachment method: bolt mount
- Connector: rectangular, female
- Terminals: male, blade type
- Country of origin: Japan
In the box
One vehicle speed sensor. This listing holds one, and the 1999-2001 Suzuki Vitara takes one. The wiring harness, mounting hardware and mounting bracket are not included, so plan on a new bolt rather than reusing the old one.
Interchange: SN7187 · VSS787 · 3491065D00 · 3491065D01
This part cross-references / interchanges with the following part numbers:
SN7187, VSS787, SC254, 3491065D00, 3491065D01
Frequently Asked Questions
Is the Standard Ignition SC254 speed sensor right for a 1999-2001 Suzuki Vitara?
Yes. Standard Ignition SC254 is a direct-fit OE replacement for the 1999-2001 Suzuki Vitara, which takes one sensor.
Does the SC254 speed sensor come with a wiring harness and mounting bolt?
No. Standard Ignition SC254 is one speed sensor; the wiring harness, mounting hardware and mounting bracket are not included.
What kind of connector does this vehicle speed sensor have?
It has one rectangular female connector with three male blade terminals. The sensor attaches with a bolt through a single mounting hole.
Can a bad speed sensor affect cruise control and shifting?
Yes. This sensor supports smooth transmission shifts and proper cruise control, so a failed one may show up as odd shifts or cruise that will not work, though other faults can have similar effects.
Is SN7187 an interchange number for this speed sensor?
Yes. SN7187 is listed with this sensor, along with VSS787, 3491065D00 and 3491065D01.
