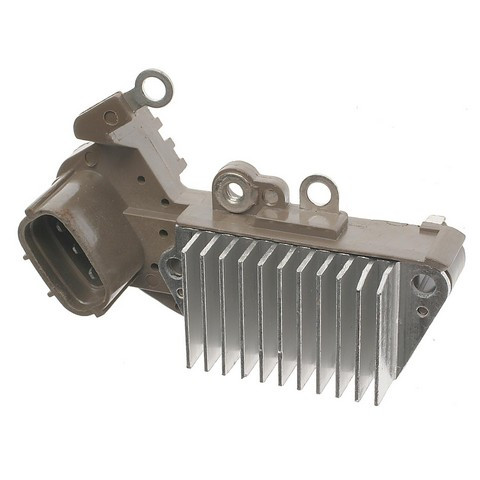

Standard Ignition VR-498 voltage regulator for the 1995 Toyota Tacoma 4-cylinder 2.4L, the 1995-1996 Tacoma 4-cylinder 2.7L, the 1997-2004 Tacoma V6 3.4L, the 2000-2004 Tacoma 4-cylinder 2.4L or 2.7L and other vehicles controls the voltage the charging system sends to the battery and the rest of the electrical system.
- Electronic PC board encapsulated in epoxy to resist failure from vibration and corrosion of electrical connections
- Circuit board made by Standard Ignition for precise operation and a longer service life
- High-grade materials chosen for extended service life in starting and charging system use
- Rectangular connector with five terminals, blade and eye ring types
- 12-volt regulator with an external mounting location
Quick facts
- Part: Standard Ignition VR-498 voltage regulator
- Fits: the 1995 Toyota Tacoma 4-cylinder 2.4L, the 1995-1996 Tacoma 4-cylinder 2.7L, the 1997-2004 Tacoma V6 3.4L, the 2000-2004 Tacoma 4-cylinder 2.4L or 2.7L and other vehicles
A failing voltage regulator can show up as a battery warning light, dim or flickering lights, or a battery that stays low or gets overcharged. Similar symptoms can trace back to the battery, wiring or drive belt, so with the engine off and cool, begin by looking over the connector and terminals for corrosion, cracks or a loose fit. A shop can test charging output. If the regulator is the cause, this one replaces it.
Fits
The vehicles it fits include the Tacoma runs above, the 1993-1997 Toyota Corolla 4-cylinder 1.6L and the 1993-2002 Corolla 4-cylinder 1.8L, and the 1993 Toyota Camry V6 3.0L and the 1993-2001 Camry 4-cylinder 2.2L. The 1993-2001 Camry 4-cylinder 2.2L takes a single regulator. Driving something else? Look up your car in the "Vehicles it fits" section before you order.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V
- Mounting location: external
- Connector: 1, rectangular
- Terminals: 5, blade and eye ring, male
- Dimensions: 86.36 x 58.674 x 29.21 mm (3.4 x 2.31 x 1.15 in)
Build and materials
- Circuit board: PC board encapsulated in epoxy
- Connector gender: female
- Country of origin: China
In the box
One voltage regulator. Mounting hardware, a mounting bracket and instructions are not included, so plan on new fasteners, since the old ones may not be reusable.
Frequently Asked Questions
Is this the right voltage regulator for a 1993-2001 Toyota Camry 4-cylinder 2.2L?
Yes. Standard Ignition VR-498 fits the 1993-2001 Toyota Camry 4-cylinder 2.2L and the 1993 Camry V6 3.0L. For other vehicles, check the "Vehicles it fits" section.
Is the VR-498 voltage regulator right for the 1997-2004 Tacoma V6 3.4L?
Yes. Standard Ignition VR-498 fits the 1997-2004 Toyota Tacoma V6 3.4L, as well as the 2000-2004 Tacoma 4-cylinder 2.4L or 2.7L.
Does the VR-498 voltage regulator come with a mounting bracket or hardware?
No. Standard Ignition VR-498 is sold as one voltage regulator without mounting hardware, a mounting bracket or instructions.
How many terminals does this voltage regulator have, and what type?
This voltage regulator has five male terminals, blade and eye ring types, on one rectangular female connector. It is rated 12 volts.
How does the epoxy-encapsulated circuit board help this voltage regulator?
Its PC board is encapsulated in epoxy to resist failure that vibration and corrosion of electrical connections can cause. The circuit board is made by Standard Ignition.
