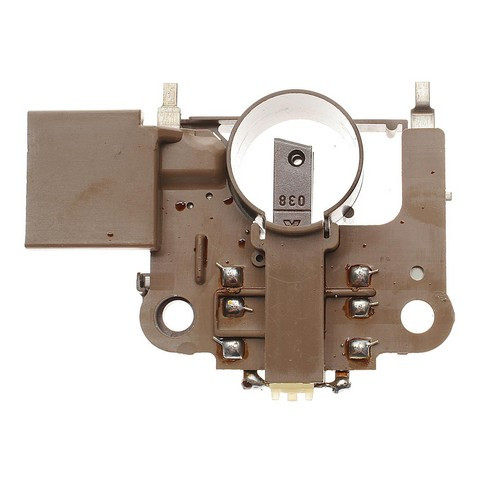

Standard Ignition VR-588 voltage regulator for the 1992-1997 Subaru SVX H6 3.3L regulates the alternator's charging output. It mounts on the alternator and holds voltage steady for the battery and the rest of the electrical system.
- Electronic PC board encapsulated in epoxy to resist failure from vibration and corrosion of electrical connections
- Circuit board manufactured by Standard Ignition for precise operation and reliability
- High-grade materials for extended service life
- Quality control applied from the components through the finished regulator
Quick facts
- Part: Standard Ignition VR-588 voltage regulator
- Fits: 1992-1997 Subaru SVX H6 3.3L
- Condition: New
A charging warning light, dim or flickering lights, or a battery that keeps running down can come from the regulator, but also from the battery, the drive belt or the alternator itself. Before replacing it, look over the connector, wiring and battery terminals with the engine off for corrosion, damage or a loose fit.
Fits
This regulator fits the 1992-1997 Subaru SVX H6 3.3L, which takes a single regulator.
Specifications
Fit and size
- Mounting location: alternator
- Quantity per vehicle: 1
- Voltage: 12 V

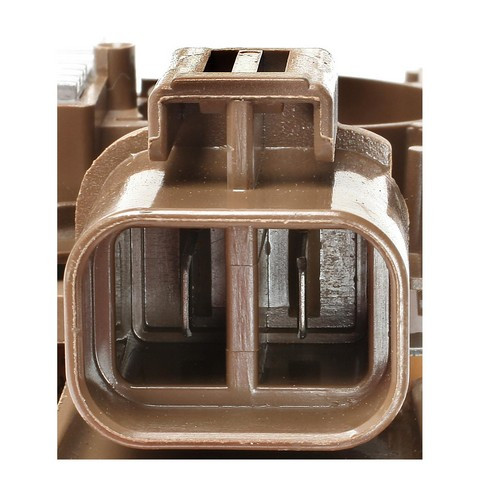

- Connector: 1 rectangular, female
- Terminals: 2 male blade terminals
- Dimensions: 3.39 x 2.56 x 1.21 in (86.1 x 65.0 x 30.7 mm)
Build and materials
- Circuit board: encapsulated in epoxy
- Condition: New
- Country of origin: Japan
In the box
One voltage regulator. Hardware, a mounting bracket and instructions are not included; the old fasteners may not be reusable, so plan on new ones.
Interchange: R847 · VR924 · VR247 · 23815AA030
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
R847, VR924, VR247, VR-588, 23815AA030
Frequently Asked Questions
Does the Standard Ignition VR-588 voltage regulator fit the 1992-1997 Subaru SVX H6 3.3L?
Yes. The VR-588 is listed for the 1992-1997 Subaru SVX H6 3.3L, and that car takes a single regulator.
Does the VR-588 voltage regulator come with a mounting bracket or screws?
No. This listing is the regulator only. Hardware, a mounting bracket and instructions are not included.
Is the VR-588 a 12-volt regulator, and what connector does it have?
Yes, it is a 12-volt regulator. It has one rectangular female connector and two male blade terminals.
What signs can a failing voltage regulator on the alternator show?
A battery or charging warning light, dim or flickering lights, or a battery that keeps running down can point to a charging problem. A shop can test the charging system to find out whether the regulator is involved.
Does the Standard Ignition VR-588 replace number 23815AA030?
Yes. 23815AA030 is one of the numbers on the Interchange line that this Standard Ignition VR-588 replaces.
