Front Left Outer Tie Rod End for 1961-1966 Ford F-250 & More - MOOG Chassis ES150L

$31.99

Vehicles this part fits

    Part number: ES150L
    UPC: 080066106656
    Condition: New
    Weight: 1.30 LBS
    Item Package Quantity: 1
    $31.99
    Adding to cart… The item has been added

    Have questions?

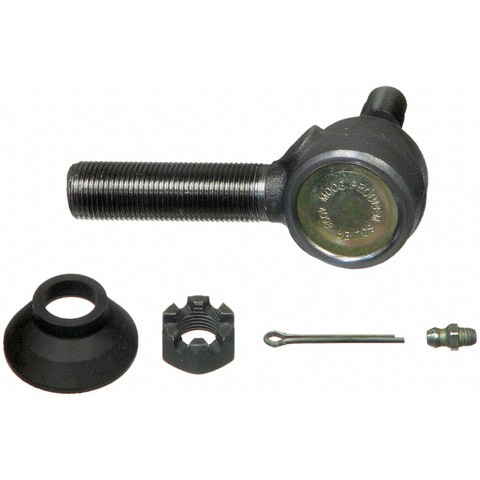

    MOOG Chassis Products Steering Tie Rod End P/N:ES150L
    MOOG Chassis Products Steering Tie Rod End P/N:ES150L
    $31.99
    $31.99

    MOOG Chassis ES150L front left tie rod end for the 1961-1966 Ford F-250 and other vehicles passes steering input from the linkage to the wheel. This steering tie rod end is designed for OE fit and function.

    • QuickSteer line part, designed and tested to restore steering and handling
    • Forged alloy steel construction
    • Heat-treated ball stud to inhibit premature failure and improve fatigue strength
    • Greaseable socket lets new lubricant flush out contaminants, reducing corrosion and wear
    • Dust boot keeps contaminants out of the joint
    • Precision tolerances for easy installation and steering alignment

    Quick facts

    • Part: MOOG Chassis ES150L tie rod end
    • Also called: steering tie rod end
    • Fits: 1961-1966 Ford F-250 and other vehicles
    • Position: Front left outer
    • Material: Forged alloy steel
    • Condition: New

    A worn tie rod end can show up as loose or wandering steering, uneven front tire wear or a clunk from the front end. Those signs alone do not prove the tie rod end is at fault, since a worn ball joint can cause some of them too.

    Fits

    The 1961-1966 Ford F-250, the 1964-1966 Chevrolet Suburban and the 1975-1977 Ford P-500 take this tie rod end, and it fits more besides. Each takes one on the front left; the front right is a separate part, and the two sides of that axle are normally done at the same time. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: Front left outer
    • Quantity per application: 1
    • Rod type: Male, straight
    • End 1 threads: 16 per inch, counterclockwise
    • End 2 threads: 18 per inch

    Build and materials

    • Material: Forged alloy steel
    • Socket: Greaseable
    • Ball stud: Heat treated
    • Dust boot: Included
    • Condition: New

    In the box

    One tie rod end with its dust boot.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this a Ford F-250 tie rod end for the 1961-1966 model years?

    Yes. The MOOG Chassis ES150L fits the 1961-1966 Ford F-250 in the front left outer position; other models are in the "Vehicles it fits" section.

    Does this tie rod end come with the dust boot?

    Yes. The MOOG Chassis ES150L includes its dust boot, and the listing is one front left outer tie rod end.

    Which way do the threads run on this male tie rod end?

    End 1 has 16 threads per inch and runs counterclockwise. End 2 has 18 threads per inch.

    How can I tell if a front left tie rod end is worn?

    Loose or vague steering, uneven front tire wear or a clunk from the front end can all point to wear. A shop can check the joint for play.

    What does the greaseable socket do on this tie rod end?

    New lubricant can flush contaminants out of the socket, which reduces corrosion and wear. The dust boot helps keep contaminants out.
