Front Right Upper Control Arm with Ball Joint for 2008-2009 Mercedes-Benz E300 & More - Mevotech Supreme CMS101074

$205.99

Vehicles this part fits

    Part number: CMS101074
    UPC: 669719829274
    Condition: New
    Weight: 6.40 LBS
    Item Package Quantity: 1
    $205.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS101074
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS101074
    $205.99
    $205.99

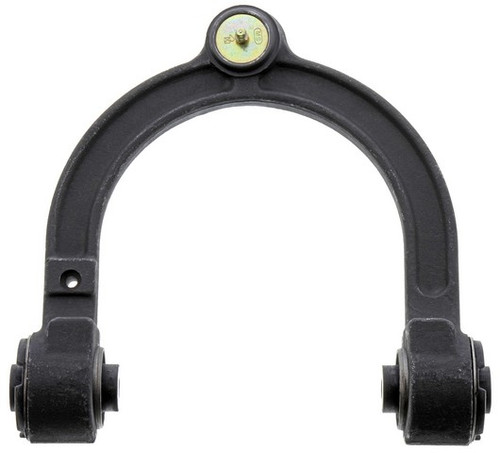

    Mevotech Supreme CMS101074 front right upper control arm with ball joint for the 2008-2009 Mercedes-Benz E300 and other vehicles links the front right wheel to the vehicle and lets it move with the suspension. Also sold as a control arm and ball joint assembly, this Mevotech Supreme suspension control arm has a threaded ball joint stud.

    • Mevotech Supreme control arm engineered in-house with application-specific upgrades for durability and performance
    • Sintered bearings for longer-lasting performance
    • Forged steel construction
    • Protective surface treatment that resists rust build-up
    • Labor Saver designs, tools and hardware for faster installation

    Quick facts

    • Part: Mevotech Supreme CMS101074 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2008-2009 Mercedes-Benz E300 and other vehicles
    • Position: Front right upper
    • Material: Steel
    • Condition: New

    A clunk over bumps, loose steering or uneven tire wear can mean this arm or its ball joint is worn, though a worn tie rod end or wheel bearing can be behind those signs too, so find the cause before you replace anything.

    Fits

    The 2008-2009 Mercedes-Benz E300, the 2006-2009 Mercedes-Benz E350 and the 2007-2009 Mercedes-Benz E550 take this arm, as do other Mercedes-Benz models, one per car on this side. This listing is one arm for the front right upper position; the left side is its own part and is ordered separately, and the two sides are normally replaced together. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: front right upper
    • Quantity per vehicle: 1
    • Maximum width: 11.5 in
    • Maximum length: 14.25 in
    • Ball joint stud: threaded
    • Adjustable: no

    Build and materials

    • Control arm material: steel
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Pre-greased and greaseable
    • Condition: new
    • Country of origin: Taiwan

    In the box

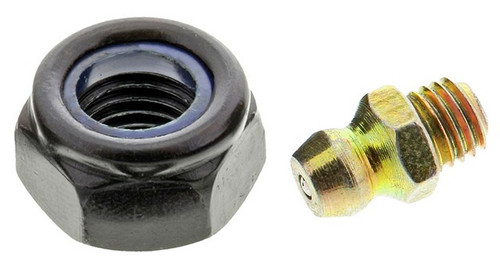

    One control arm with ball joint, with bushings, dust boot, grease fitting, nylon locking nut and mounting hardware.

    Installation notes

    • Arrives pre-greased.
    • The 180 degree SAE grease fitting allows later servicing.
    • A part-specific nylon locking nut is provided for the ball joint.

    Interchange: 101-7025 · 102-7025 · 622.35876 · 521-298
    19288844 · LGS101074 · TC5910 · CB28178 · CB28178PR · CA8713 · FCA1076 · 3CB10198 · CAK621711 · RK621711 · 2103304107 · 2113305707 · A2103304107 · A2113305707 · GS101074 · 2606326 · 30036105 · 5021315 · X31CJ7678

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19288844, 101-7025, 102-7025, LGS101074, 622.35876, TC5910, 521-298, CB28178, CB28178PR, CA8713, FCA1076, 3CB10198, CAK621711, RK621711, 2103304107, 2113305707, A2103304107, A2113305707, GS101074, CMS101074, 2606326, 30036105, 5021315, X31CJ7678

    Frequently Asked Questions

    Will this Mercedes E350 control arm fit a 2006-2009 Mercedes-Benz E350?

    Yes, Mevotech Supreme CMS101074 is listed for the 2006-2009 Mercedes-Benz E350 in the front right upper position, one per vehicle.

    What hardware comes with the Mevotech Supreme CMS101074 control arm?

    The assembly includes bushings, a dust boot, a 180 degree SAE grease fitting, a part-specific nylon locking nut and mounting hardware.

    Is the ball joint stud on this front right upper control arm threaded?

    Yes, the ball joint stud is threaded. The arm is steel with rubber bushings and a sintered metal bearing.

    How can I tell if the ball joint boot on this control arm is damaged?

    A torn dust boot or grease leaking out can be a sign of a worn joint. A shop can inspect the boot and test the joint for play.

    Does the Mevotech Supreme CMS101074 replace number A2103304107?

    Yes. A2103304107 is one of the numbers this arm replaces, along with 2103304107, A2113305707 and 2113305707.
