Front Right Lower Control Arm with Ball Joint for 2011-2018 Volvo S60 & More - Mevotech Supreme CMS101465

$165.99

Vehicles this part fits

    Part number: CMS101465
    UPC: 677319106503
    Condition: New
    Weight: 17.71 LBS
    Item Package Quantity: 1
    $165.99
    Adding to cart… The item has been added

    Have questions?

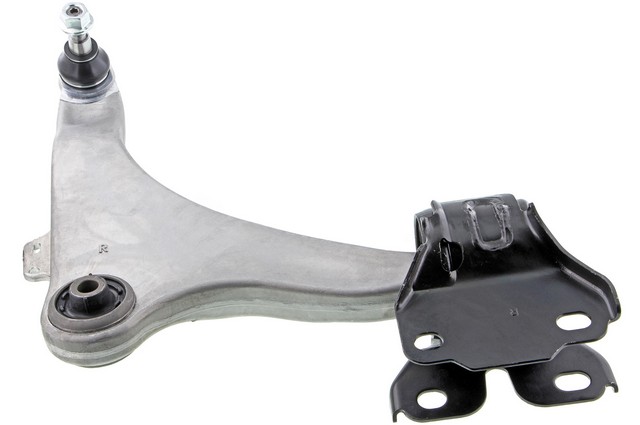

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS101465
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS101465
    $165.99
    $165.99

    Mevotech Supreme CMS101465 front right lower control arm with ball joint for the 2011-2018 Volvo S60 and other vehicles locates the front right wheel and lets it move with the road. This Mevotech Supreme control arm and ball joint assembly replaces the arm and the joint as one piece.

    • Mevotech Supreme line, engineered in-house with application-specific upgrades for durability
    • Labor Saver design and hardware for faster installation
    • Additional surface treatment on the ball joint to prevent rust build-up
    • Part-specific locking nut supplied for the ball joint
    • Forged aluminum construction
    • Pre-greased ball joint and rubber bushings included

    Quick facts

    • Part: Mevotech Supreme CMS101465 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2011-2018 Volvo S60 and other vehicles
    • Position: Front right lower
    • Material: Aluminum
    • Condition: New

    A clunk over bumps, uneven tire wear or loose steering can mean a worn ball joint or a torn bushing. Worn sway bar links, struts or tires can also be behind these symptoms, so find the cause before buying. This listing is one arm for the front right; the front left is a separate part, and both are normally replaced together.

    Fits

    This is a direct-fit replacement for the 2011-2018 Volvo S60, the 2015-2018 Volvo V60 and the 2012-2016 Volvo S80, and each takes one arm on this side. It is built to meet or exceed OE specifications.

    Specifications

    Fit and size

    • Position: Front right lower
    • Quantity per vehicle: 1
    • Control arm maximum length: 16.4 in
    • Control arm maximum width: 16.0 in
    • Ball joint mounting type: Press in
    • Ball joint stud type: Threaded

    Build and materials

    • Control arm material: Aluminum
    • Bushing material: Rubber, bushings included
    • Ball joint: Pre-greased
    • Adjustable: No
    • Condition: New
    • Country of origin: Turkey

    In the box

    One control arm with ball joint, rubber bushings and a part-specific locking nut.

    Interchange: 102-7751 · 527-132 · 716 050 0047
    19383743 · TC3554 · CB45254 · 9CB10714 · RK623653 · GS101465 · 2608501 · 30036405 · X53CJ7120 · 31262473 · 312624730 · 31340127 · 313401270 · 31429320 · 314293200

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19383743, 102-7751, TC3554, 527-132, CB45254, 9CB10714, 716 050 0047, RK623653, GS101465, CMS101465, 2608501, 30036405, X53CJ7120, 31262473, 312624730, 31340127, 313401270, 31429320, 314293200

    Frequently Asked Questions

    Is this a 2011-2018 Volvo S60 control arm for the front right side?

    Yes. Mevotech Supreme CMS101465 is the front right lower control arm with ball joint for the 2011-2018 Volvo S60, and that side takes one.

    Can I use this as a 2012-2016 Volvo S80 control arm?

    Yes. CMS101465 is listed for the 2012-2016 Volvo S80 in the front right lower position. The left side needs its own arm.

    Does the Mevotech Supreme suspension control arm come with a locking nut?

    Yes. A part-specific locking nut is provided for the ball joint, and the rubber bushings are included with the arm.

    What is the CMS101465 control arm made of?

    Mevotech Supreme CMS101465 is an aluminum control arm with rubber bushings. Its ball joint is pre-greased, has a threaded stud and is a press-in mounting type.

    How is the ball joint on this control arm protected from rust?

    The ball joint has an additional surface treatment that prevents rust build-up. It also comes pre-greased.
