Front Left Lower Control Arm with Ball Joint for 1977-1985 Chevrolet Impala & More - Mevotech Supreme CMS20334

$169.99

Vehicles this part fits

    Part number: CMS20334
    UPC: 669719985024
    Condition: New
    Weight: 23.79 LBS
    Item Package Quantity: 1
    $169.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS20334
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS20334
    $169.99
    $169.99

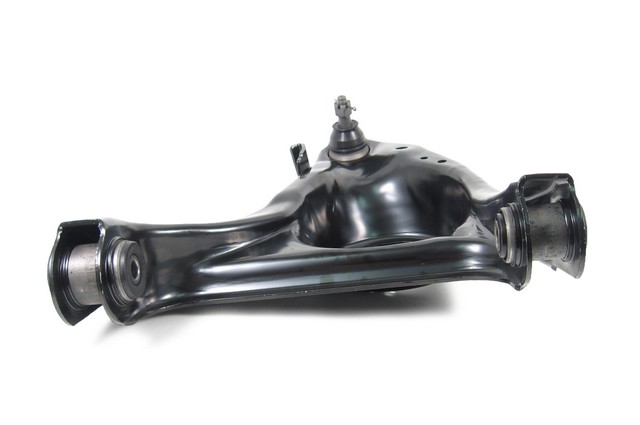

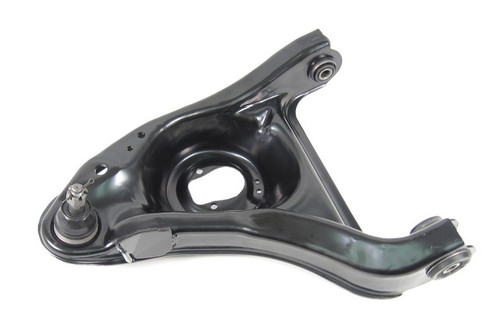

    Mevotech Supreme CMS20334 front left lower control arm with ball joint for the 1977-1985 Chevrolet Impala and other vehicles links the wheel assembly to the frame and gives it a pivot. Sold as a control arm and ball joint assembly, this Mevotech Supreme suspension control arm is built for high-usage commercial and passenger vehicles and working trucks.

    • Mevotech Supreme line, engineered in-house with application-specific upgrades for durability and performance
    • Patented sintered bearings for longer-lasting performance
    • Knurling that locks the control arm bushing to the sub-frame
    • Protective surface treatment to prevent rust build-up
    • Labor Saver designs, tools and hardware for faster, easier installation

    Quick facts

    • Part: Mevotech Supreme CMS20334 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 1977-1985 Chevrolet Impala and other vehicles
    • Position: front left lower
    • Condition: New

    A worn arm or ball joint can show up as a clunk over bumps, loose or wandering steering, or uneven tire wear. These signs alone do not prove this part is at fault, since a worn tie rod end can also cause loose steering. This listing is one front left arm; the front right is a separate part, and the pair is normally replaced together.

    Fits

    The 1977-1985 Chevrolet Impala, the 1980-1981 Chevrolet Camaro, the 1992-1996 Cadillac Commercial Chassis and many more fit this front left lower arm, and each takes one.

    Specifications

    Fit and size

    • Position: front left lower
    • Quantity per vehicle: 1
    • Maximum width: 16.0 in
    • Maximum length: 19.0 in
    • Ball joint mounting type: press in

    Build and materials

    • Condition: New
    • Greaseable: yes
    • Adjustable: no
    • Country of origin: China

    In the box

    One control arm with ball joint and its mounting hardware.

    Installation notes

    • Arrives pre-greased.
    • An SAE grease fitting is included for servicing the joint.

    Interchange: 622.62047 · 622.62802 · 520-117
    19289927 · TGS20334 · 10232819 · 10232815 · TC6553 · CB91073 · CB91073PR · CA16043 · FCA760 · CAK620168 · IK620168 · K620168 · RK620168 · C7GS20334 · GS20334 · 2605533 · 143302 · 30034107 · 9CB50033 · 11348 · 5071324

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19289927, TGS20334, 10232819, 622.62047, 622.62802, 10232815, TC6553, 520-117, CB91073, CB91073PR, CA16043, FCA760, CAK620168, IK620168, K620168, RK620168, C7GS20334, GS20334, CMS20334, 2605533, 143302, 30034107, 9CB50033, 11348, 5071324

    Frequently Asked Questions

    Does this Camaro control arm fit the 1980-1981 Chevrolet Camaro?

    Yes. Mevotech Supreme CMS20334 is a front left lower control arm with ball joint for the 1980-1981 Chevrolet Camaro, one per car on that side. Check your own car in the "Vehicles it fits" section.

    Is this the right Chevy Impala control arm for a 1977-1985 Chevrolet Impala?

    Yes, this front left lower arm fits the 1977-1985 Chevrolet Impala. The right side takes its own separate control arm.

    Does the Mevotech Supreme CMS20334 control arm include its mounting hardware?

    Yes. Mevotech Supreme CMS20334 comes with all essential mounting hardware and an SAE grease fitting for servicing the joint.

    What are the maximum length and width of this front left lower control arm?

    The control arm measures up to 19.0 in long and 16.0 in wide at its maximum.

    Is this Mevotech Supreme control arm greaseable?

    Yes. The arm is greaseable and arrives pre-greased, so the included SAE grease fitting is there for later servicing.
