Front Left Upper Control Arm with Ball Joint for 1996-2002 Chevrolet Express 2500 & More - Mevotech Supreme CMS20346

$167.99

Vehicles this part fits

    Part number: CMS20346
    UPC: 669719930437
    Condition: New
    Weight: 9.40 LBS
    Item Package Quantity: 1
    $167.99
    Adding to cart… The item has been added

    Have questions?

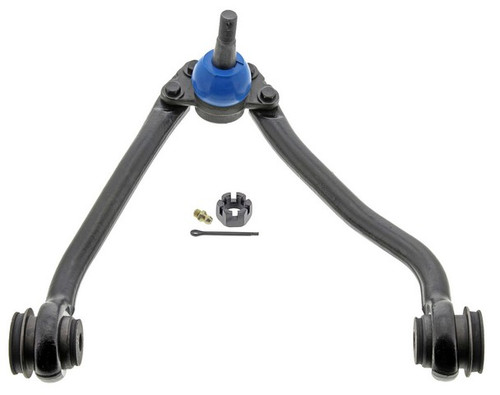

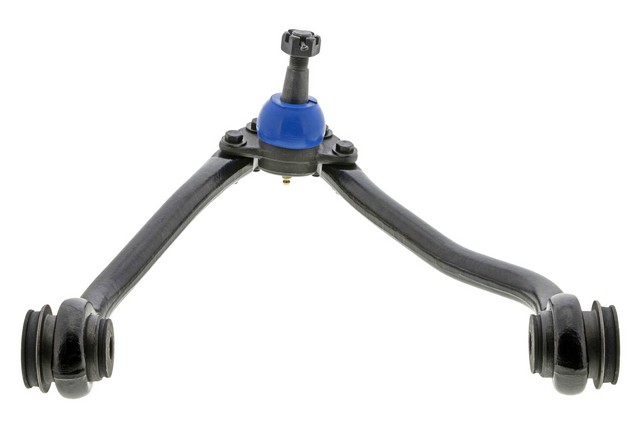

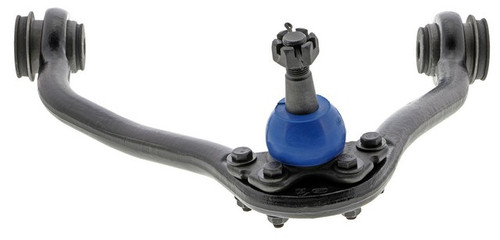

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS20346
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS20346
    $167.99
    $167.99

    Mevotech Supreme CMS20346 front left upper control arm with ball joint for the 1996-2002 Chevrolet Express 2500 and other vehicles links the steering knuckle to the frame. Also sold as a control arm and ball joint assembly, this Mevotech Supreme suspension control arm comes pre-greased with its bushings included.

    • Mevotech Supreme control arm engineered in-house with application-specific upgrades for durability
    • Steel construction with a protective surface treatment that resists rust
    • Sintered metal bearings for longer-lasting performance
    • Application-specific ball stud system with a larger sphere
    • Knurling that locks the control arm bushing to the sub-frame
    • Greaseable through a 180 degree SAE grease fitting

    Quick facts

    • Part: Mevotech Supreme CMS20346 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 1996-2002 Chevrolet Express 2500 and other vehicles
    • Position: Front left upper
    • Material: Steel
    • Condition: New

    A clunk over bumps, uneven tire wear or loose steering can mean the ball joint or bushings are worn. These signs alone do not prove this arm is at fault; a worn tie rod end can cause similar steering looseness. This listing is one arm for the front left upper position; the front right is a separate part, and both sides are normally replaced together.

    Fits

    The 1996-2002 Chevrolet Express 3500 and the 1996-2002 GMC Savana 2500 are also on its fitment, along with many other Chevrolet and GMC models.

    Specifications

    Fit and size

    • Position: front left upper
    • Quantity per application: 1
    • Control arm maximum width: 15.0 in
    • Control arm maximum length: 13.5 in
    • Ball joint mounting type: bolt in
    • Ball joint stud type: threaded
    • Adjustable: no

    Build and materials

    • Control arm material: steel
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Pre-greased: yes
    • Condition: new
    • Country of origin: China

    In the box

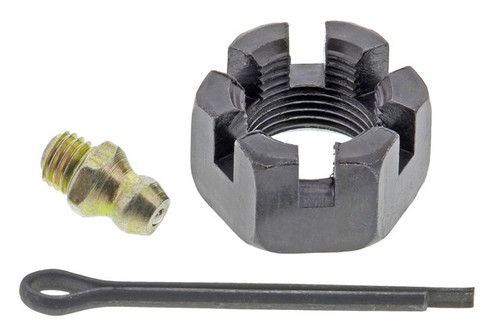

    One control arm with ball joint, bushings, a 180 degree SAE grease fitting, and a part-specific castle nut and cotter pin.

    Installation notes

    • Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
    • Labor Saver™ designs, tools and hardware are meant to make installation faster and easier.

    Interchange: 623.66070 · 520-171
    19290295 · PGS20346 · 12543997 · TC5195 · CB90017 · CB90017PR · CA12270 · CAK621233 · ICA520171 · RK621233 · GS20346 · 2606017 · 164302 · 30034115 · 8CB50043 · 12189 · 5021231 · SRK621233 · X07CJ0633 · JTC2746

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19290295, PGS20346, 623.66070, 12543997, TC5195, 520-171, CB90017, CB90017PR, CA12270, CAK621233, ICA520171, RK621233, GS20346, CMS20346, 2606017, 164302, 30034115, 8CB50043, 12189, 5021231, SRK621233, X07CJ0633, JTC2746

    Frequently Asked Questions

    Is this the right control arm for the 1996-2002 GMC Savana 2500?

    Yes. Mevotech Supreme CMS20346 fits the 1996-2002 GMC Savana 2500 as the front left upper arm. If your van or truck is not named here, find your year and model in the "Vehicles it fits" section.

    Does the Mevotech Supreme CMS20346 control arm come with a castle nut and cotter pin?

    Yes. Mevotech Supreme CMS20346 includes a part-specific castle nut and cotter pin, along with bushings and a 180 degree SAE grease fitting.

    Is the ball joint on this control arm greaseable?

    Yes. This control arm arrives pre-greased and comes with a 180 degree SAE grease fitting, so it can be greased again later.

    What are signs of a worn front upper control arm ball joint?

    A clunk over bumps, uneven tire wear or loose steering can mean a worn ball joint or bushing. Have a shop check for play, and do not put it off.

    What material is this control arm made of?

    This control arm is steel with rubber bushings. Its ball joint uses sintered metal bearings and a threaded ball stud with a bolt-in mounting.
