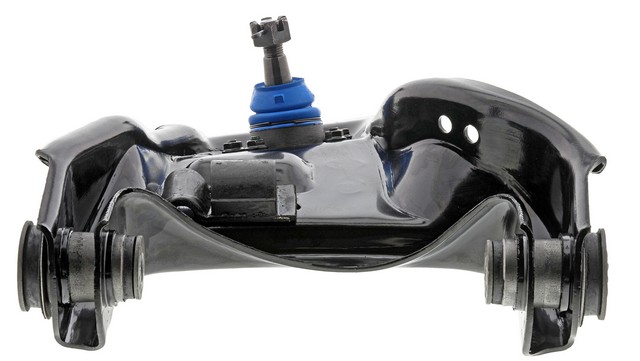

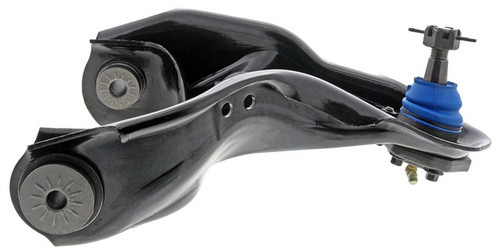

Mevotech Supreme CMS20355 front right upper control arm with ball joint for the 1995-2005 Chevrolet Blazer and other vehicles locates the wheel and lets it move with the road. This Mevotech Supreme suspension control arm is a control arm and ball joint assembly that comes with its bushings and mounting hardware.
- Mevotech Supreme control arm engineered in-house for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks
- Sintered metal bearing for longer-lasting performance
- Greaseable ball joint with a 135 degree SAE grease fitting for servicing
- Knurling locks the control arm bushing to the sub-frame
- Thicker, stronger ball joint flange resists deformation during installation
- Stamped steel construction with a protective surface treatment against rust
Quick facts
- Part: Mevotech Supreme CMS20355 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1995-2005 Chevrolet Blazer and other vehicles
- Position: Front right upper
- Material: Steel
- Condition: New
A clunk over bumps, loose or wandering steering, or uneven front tire wear can mean the ball joint or control arm is worn, though a worn tie rod end or sway bar link can be behind the same signs, so find the cause before replacing anything.
Fits
The vehicles it fits include the 1995-2005 Chevrolet Blazer, the 1992-2005 GMC Jimmy and the 1988-2004 Chevrolet S10. If your car is not named here, open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: Front right upper
- Quantity per application: 1 for this position
- Maximum width: 11.0 in
- Maximum length: 11.4 in
- Ball joint mounting type: Bolt in
- Ball joint stud type: Threaded
Build and materials
- Control arm material: Steel
- Bushing material: Rubber
- Bearing material: Sintered metal
- Pre-greased and greaseable: Yes
- Condition: New
- Country of origin: China
In the box
One control arm with ball joint, with bushings, mounting hardware and a 135 degree SAE grease fitting. This listing is one arm for the front right upper position, which takes one; the front left upper is a separate part ordered on its own, and both sides are normally replaced together.
Installation notes
- Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
- The ball joint comes pre-greased.
- Labor Saver designs, tools and hardware make installation faster and easier.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Does this S10 control arm fit the 1988-2004 Chevrolet S10?
Yes. Mevotech Supreme CMS20355 fits the 1988-2004 Chevrolet S10 as the front right upper control arm with ball joint; the left side is a separate part.
Is this the front right upper GMC Jimmy control arm for 1992-2005?
Yes. Mevotech Supreme CMS20355 fits the 1992-2005 GMC Jimmy at the front right upper position, and the other side is ordered separately.
Does this control arm with ball joint include the castle nut and cotter pin?
Yes. A part-specific castle nut and cotter pin come with it, along with the bushings and a 135 degree SAE grease fitting.
What are the bushing and bearing materials in this control arm?
The bushings are rubber and the bearing is sintered metal. The arm itself is stamped steel with a protective surface treatment.
Can the ball joint on the Mevotech Supreme CMS20355 be greased?
Yes. The ball joint is pre-greased and greaseable, and a 135 degree SAE grease fitting is included for servicing.
