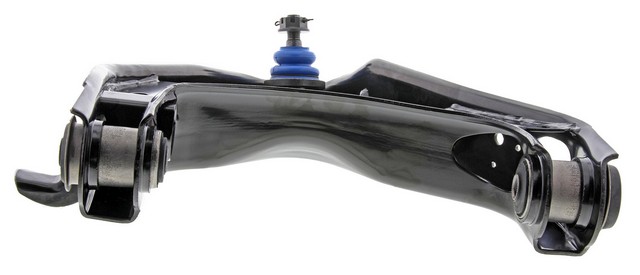

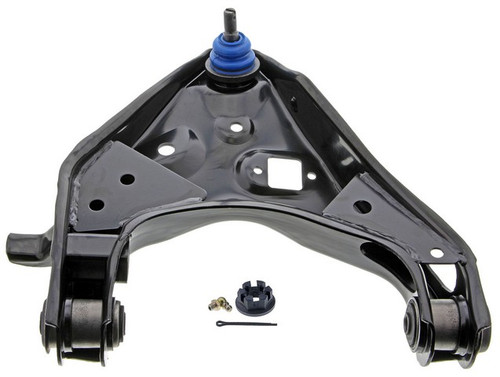

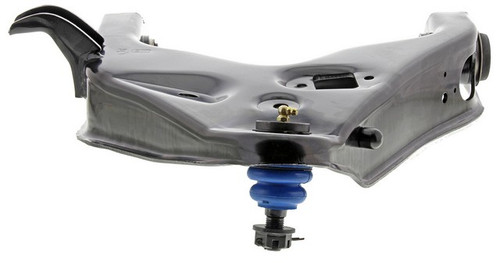

Mevotech Supreme CMS20402 front left lower control arm with ball joint for the 1998-2011 Ford Ranger and other vehicles joins the steering knuckle to the frame and carries the ball joint. Sold as a control arm and ball joint assembly, this Mevotech Supreme suspension control arm includes its bushings.
- Mevotech Supreme line, engineered in-house with application-specific upgrades
- Sintered metal bearing for longer-lasting performance
- Greaseable design with a 90 degree SAE grease fitting for servicing
- Knurling that locks the control arm bushing to the sub-frame
- Thicker, stronger ball joint flange that helps prevent deformation during installation
- Stamped steel construction with a protective surface treatment against rust
Quick facts
- Part: Mevotech Supreme CMS20402 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1998-2011 Ford Ranger and other vehicles
- Position: Front left lower
- Material: Steel
- Condition: New
A worn arm or ball joint can show up as a clunk over bumps, loose or wandering steering, or uneven front tire wear. Before you replace this arm, rule out worn tie rod ends, sway bar links and shocks, since those parts can produce similar noises and wear.
Fits
The vehicles covered include the 1998-2011 Ford Ranger and the 1998-2010 Mazda B4000, and it works as a Ford Explorer control arm for 1995-2001 models. Open the "Vehicles it fits" section to check your exact model and engine. This listing is one side, the front left; the other side of that axle is normally done at the same time.
Specifications
Fit and size
- Position: Front left lower
- Quantity per vehicle: 1 for this side
- Maximum width: 17.0 in
- Maximum length: 21.0 in
- Ball joint mounting type: Press in
- Ball joint stud type: Threaded
Build and materials
- Type: Control arm with ball joint, not adjustable
- Control arm material: Steel
- Bushing material: Rubber
- Bearing material: Sintered metal
- Greaseable: Yes
- Condition: New
- Country of origin: China
In the box

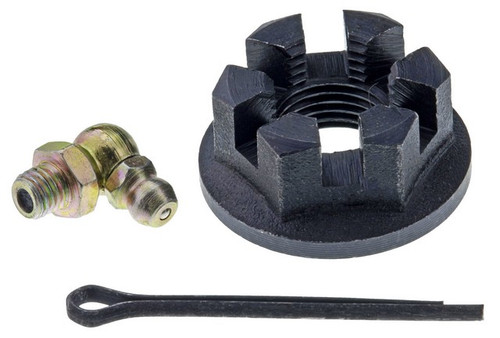

One control arm with ball joint and bushings, plus mounting hardware and the grease fitting. This listing holds one arm, and the front left takes one; the front right is a separate part.
Installation notes
- The ball joint comes pre-greased.
- Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
Product information is for general reference and may contain errors. See our Disclaimer.
Frequently Asked Questions
Is this Ford Ranger control arm right for 1998-2011 models?
Yes, Mevotech Supreme CMS20402 fits the 1998-2011 Ford Ranger in the front left lower position. Open the "Vehicles it fits" section to check your exact model and engine.
Does this Ford Explorer lower control arm fit 1995-2001 models?
Yes, Mevotech Supreme CMS20402 fits the 1995-2001 Ford Explorer in the front left lower position. The front right is a separate part.
Does the CMS20402 come with a castle nut and cotter pin?
Yes. The threaded ball joint stud comes with a part-specific castle nut and cotter pin, and the box also holds the bushings, mounting hardware and a 90 degree SAE grease fitting.
What are the bearing and bushing materials on this control arm?
The bearing material is sintered metal, the bushings are rubber and the arm itself is steel.
Is the ball joint on this Mevotech Supreme control arm pre-greased?
Yes, the ball joint is pre-greased and also greaseable. A 90 degree SAE grease fitting is included for later servicing.
