Front Right Lower Control Arm with Ball Joint for 2013-2019 Nissan Sentra & More - Mevotech Supreme CMS301125

$133.99

Vehicles this part fits

    Part number: CMS301125
    UPC: 669719259804
    Condition: New
    Weight: 11.30 LBS
    Item Package Quantity: 1
    $133.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS301125
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS301125
    $133.99
    $133.99

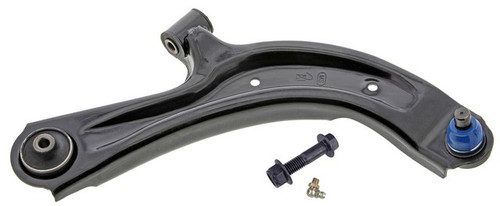

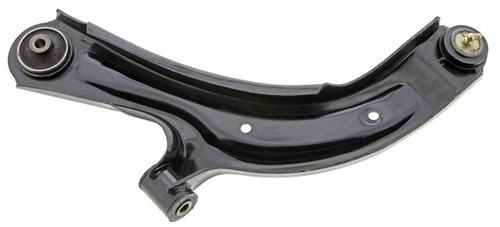

    Mevotech Supreme CMS301125 front right lower control arm with ball joint for the 2013-2019 Nissan Sentra and other vehicles links the wheel to the suspension. Sold as a control arm and ball joint assembly, it comes with the ball joint, bushings and dust boot.

    • Mevotech Supreme line, engineered in-house with application-specific upgrades for durability and performance
    • Stamped steel control arm with a reinforced ball joint head
    • Sintered bearings for longer-lasting performance
    • 90 degree SAE grease fitting included for servicing
    • Application-specific ball stud with a larger sphere and a thicker, stronger flange that resists deformation during installation
    • Protective surface treatment to resist rust buildup

    Quick facts

    • Part: Mevotech Supreme CMS301125 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2013-2019 Nissan Sentra and other vehicles
    • Position: Front right lower
    • Material: Steel
    • Condition: New

    A clunk over bumps, uneven tire wear or loose steering can mean a worn ball joint or bushing. Before you replace this arm, rule out a bad sway bar link, strut mount or tire problem, since those can also produce clunks or uneven wear.

    Fits

    It is a direct-fit replacement for the 2013-2019 Nissan Sentra, the 2013-2021 Nissan NV200 and the 2015-2018 Chevrolet City Express. This listing is one arm for the front right; the front left is a separate part, and the two are normally replaced at the same time.

    Specifications

    Fit and size

    • Position: front right lower
    • Quantity per vehicle: 1 for this side
    • Maximum width: 17.45 in
    • Maximum length: 16.2 in
    • Ball joint mounting type: press in
    • Ball joint stud type: grooved

    Build and materials

    • Control arm material: steel
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Dust boot material: neoprene
    • Pre-greased and greaseable: yes
    • Condition: new
    • Country of origin: China

    In the box

    One control arm with ball joint, dust boot, bushings, a 90 degree SAE grease fitting, and an application-specific pinch bolt and locking nut. This listing holds one arm, and the front right takes one.

    Installation notes

    • Arrives pre-greased.
    • The Labor Saver design is intended to make installation faster and easier.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is CMS301125 the control arm for the 2013-2019 Nissan Sentra front right side?

    Yes. Mevotech Supreme CMS301125 is the front right lower control arm with ball joint for the 2013-2019 Nissan Sentra. The left side takes a separate part.

    Does this arm also fit the 2013-2021 Nissan NV200 or the 2015-2018 Chevrolet City Express?

    Yes. CMS301125 fits both the 2013-2021 Nissan NV200 and the 2015-2018 Chevrolet City Express, in the same front right lower position.

    Is this Mevotech Supreme control arm sold with the ball joint and bushings?

    Yes. Mevotech Supreme CMS301125 comes with the ball joint, bushings, dust boot, and the pinch bolt and locking nut. This listing is one arm.

    Is the Mevotech Supreme suspension control arm greaseable?

    Yes. This arm comes pre-greased and includes a 90 degree SAE grease fitting for later servicing.

    How can I tell if the ball joint on this arm is worn?

    In normal driving, notice clunks over bumps, uneven tire wear or loose steering. A shop can inspect the dust boot, bushings and ball joint play.
