Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS861190

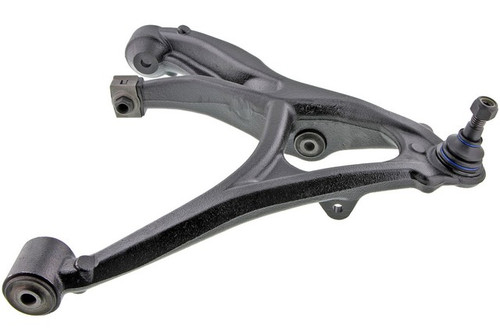

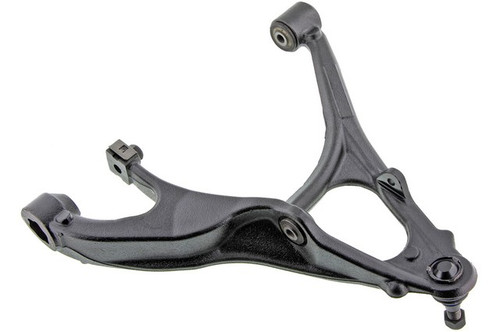

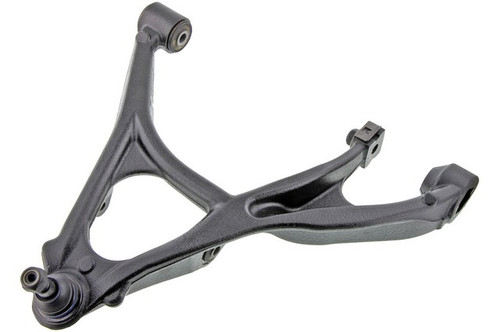

Mevotech Supreme CMS501143 front right lower control arm with ball joint for the 2006-2010 Hummer H3 and other vehicles locates the wheel while letting the suspension move. The assembly includes the ball joint and rubber bushings.
A clunk over bumps, loose or wandering steering, or uneven front tire wear can come from worn bushings or a worn ball joint on this control arm and ball joint assembly. Other suspension parts can produce similar noises, so first look at the bushings and ball joint boot with the engine off for cracks, tears or leaking grease.
This control arm is a direct-fit replacement for the 2006-2010 Hummer H3 and the 2009-2010 Hummer H3T. The front right side of the 2006-2010 Hummer H3 takes one; the front left is a separate part ordered on its own, and the two sides are normally replaced together.
Fit and size
Build and materials
One control arm with ball joint, rubber bushings and a part-specific nylon locking nut.
Interchange: 522-480
19382633 · VGS501143 · CB91274 · CB91274PR · CA16354 · 15082877 · 15082977 · C9GS501143 · GS501143 · 2608452 · 1341105 · 30034592 · 11CB50627
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Is the Mevotech Supreme control arm CMS501143 right for the 2006-2010 Hummer H3?
Yes. Mevotech Supreme CMS501143 is the front right lower control arm with ball joint for the 2006-2010 Hummer H3, and it also fits the 2009-2010 Hummer H3T.
Is this the 2006-2010 Hummer H3 control arm for the left or the right side?
It is for the front right lower position. The front left lower arm is a separate part and is ordered on its own.
Does the Mevotech Supreme suspension control arm come with the ball joint and bushings?
Yes. Mevotech Supreme CMS501143 includes the ball joint and rubber bushings, plus a part-specific nylon locking nut for the ball joint.
What is this control arm made of?
The control arm is steel with forged steel construction, and it has rubber bushings. A protective surface treatment helps resist rust build-up.
Can a worn front right lower control arm cause uneven tire wear?
Yes, it can if worn bushings or a worn ball joint let the wheel sit out of position. A shop can confirm the cause, and a worn arm should be checked or replaced promptly.
