Front Right Lower Control Arm with Ball Joint for 2016-2019 Chevrolet Cruze & More - Mevotech Supreme CMS501254

$145.99

Vehicles this part fits

    Part number: CMS501254
    UPC: 677319200669
    Condition: New
    Weight: 11.30 LBS
    Item Package Quantity: 1
    $145.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS501254
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS501254
    $145.99
    $145.99

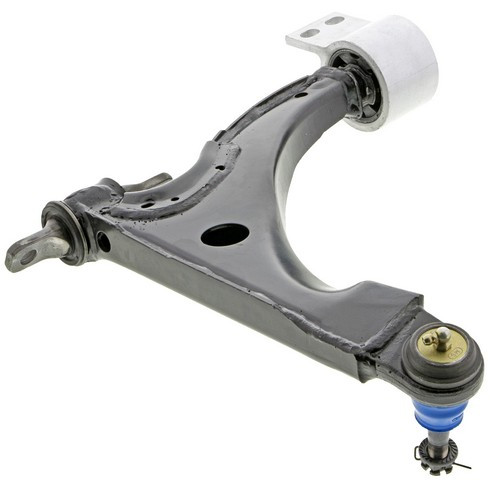

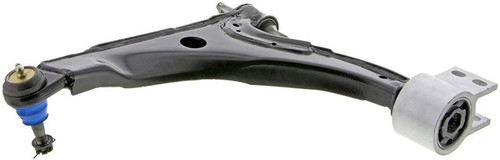

    Mevotech Supreme CMS501254 front right lower control arm with ball joint for the 2016-2019 Chevrolet Cruze and other vehicles links the front right steering knuckle to the chassis. This control arm and ball joint assembly carries the ball joint that lets the wheel pivot as the suspension moves and the car steers.

    • Mevotech Supreme line engineered in-house with application-specific upgrades for durability and performance
    • Stamped steel control arm with a reinforced ball joint head for added durability
    • Sintered bearings for longer-lasting performance
    • Thicker, stronger ball joint flange to prevent deformation during installation
    • Protective surface treatment to resist rust build-up

    Quick facts

    • Part: Mevotech Supreme CMS501254 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2016-2019 Chevrolet Cruze and other vehicles
    • Position: Front right lower
    • Material: Steel
    • Condition: New

    A clunk over bumps, loose steering or uneven tire wear can mean a worn ball joint or bushing, though tie rod ends, strut mounts or a bent wheel can cause them too, so find the cause before buying. The front axle takes one arm per side. This listing is one arm for the front right, and the front left is a separate part; both sides are normally replaced together.

    Fits

    It is a direct-fit Chevy Cruze control arm replacement for the 2016-2019 model years, and it also fits the 2016-2019 Chevrolet Volt.

    Specifications

    Fit and size

    • Position: front right lower
    • Quantity per vehicle: 1
    • Maximum length: 15.25 in
    • Maximum width: 15.1 in
    • Ball joint mounting type: press in
    • Ball joint stud type: threaded

    Build and materials

    • Control arm material: steel
    • Bushing material: rubber
    • Ball joint: pre-greased
    • Adjustable: no
    • Condition: new
    • Country of origin: China

    In the box

    One front right lower control arm with ball joint and bushings, plus mounting hardware.

    Installation notes

    • A part-specific castle nut and an easy-snap cotter pin are included to secure the ball joint to the vehicle.
    • A 90 degree SAE grease fitting is included for servicing.
    • The ball joint comes pre-greased.

    Interchange: 527-374
    19427225 · 39001026 · 39089343 · 84035532 · 84289689 · TC6804 · CB91544 · 13466363 · 23269162 · 23403024 · RK623587 · 2608690 · 30034808 · 5CB50683 · X07CJ0943

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19427225, 39001026, 39089343, 84035532, 84289689, TC6804, 527-374, CB91544, 13466363, 23269162, 23403024, RK623587, CMS501254, 2608690, 30034808, 5CB50683, X07CJ0943

    Frequently Asked Questions

    Is this a 2017 Chevy Cruze lower control arm, and which side does it go on?

    Yes. Mevotech Supreme CMS501254 is a front right lower control arm for the 2016-2019 Chevrolet Cruze and also fits the 2016-2019 Chevrolet Volt.

    What comes with this Mevotech Supreme control arm?

    One control arm with the ball joint and bushings, plus mounting hardware: a castle nut and an easy-snap cotter pin. A 90 degree SAE grease fitting is also included.

    Is this Mevotech Supreme suspension control arm made of steel?

    Yes. The arm is stamped steel with a reinforced ball joint head, and the bushings are rubber. The ball joint presses in and has a threaded stud.

    What does a worn lower control arm ball joint sound like?

    A clunk over bumps, loose steering or uneven front tire wear can be signs of a worn ball joint or bushing. Have a shop inspect the suspension promptly.

    Is 84289689 the same part as Mevotech Supreme CMS501254?

    Yes. 84289689 is one of the numbers Mevotech Supreme CMS501254 replaces, along with 527-374 and 39089343.
