Front Left Lower Control Arm with Ball Joint for 2016-2019 Chevrolet Cruze & More - Mevotech Supreme CMS501255

$145.99

Vehicles this part fits

    Part number: CMS501255
    UPC: 677319200614
    Condition: New
    Weight: 11.56 LBS
    Item Package Quantity: 1
    $145.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS501255
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS501255
    $145.99
    $145.99

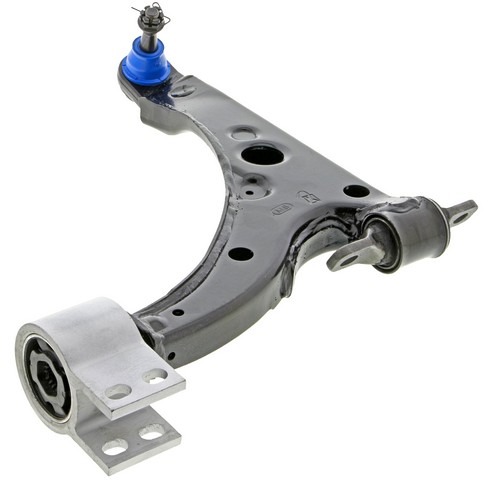

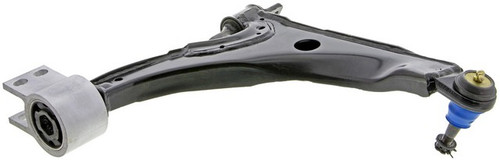

    Mevotech Supreme CMS501255 front left lower control arm with ball joint for the 2016-2019 Chevrolet Cruze and other vehicles connects the wheel to the vehicle and lets the suspension move. This control arm and ball joint assembly includes rubber bushings and a pre-greased ball joint.

    • Mevotech Supreme suspension control arm, engineered in-house with application-specific upgrades for durability and performance
    • Stamped steel control arm with a reinforced ball joint head
    • Sintered bearings for longer-lasting performance
    • Thicker, stronger ball joint flange to prevent deformation during installation
    • Protective surface treatment to resist rust build-up

    Quick facts

    • Part: Mevotech Supreme CMS501255 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2016-2019 Chevrolet Cruze and other vehicles
    • Position: Front left lower
    • Material: Steel control arm, rubber bushings
    • Condition: New

    A worn lower control arm or ball joint can show up as a clunk over bumps, uneven tire wear or wandering steering. These signs alone do not prove this arm is the problem, since a worn tie rod end can cause similar symptoms.

    Fits

    It is a control arm for the 2016-2019 Chevy Cruze and the 2016-2019 Chevrolet Volt. The car takes one on each side of the front axle; this listing is the front left, and the front right is a separate part that is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: Front left lower
    • Quantity per vehicle: 1 on this side
    • Ball joint mounting type: Press in
    • Ball joint stud type: Threaded
    • Control arm maximum length: 15.25 in
    • Control arm maximum width: 15.1 in

    Build and materials

    • Control arm material: Steel
    • Bushing material: Rubber
    • Ball joint: Pre-greased
    • Condition: New
    • Country of origin: China

    In the box

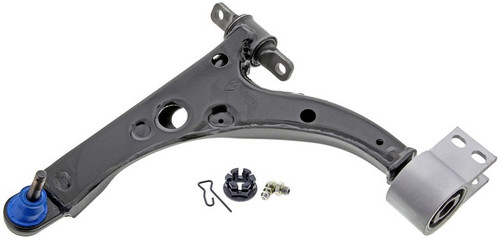

    One control arm with ball joint, rubber bushings and mounting hardware.

    Installation notes

    • Secure the ball joint to the vehicle with the part-specific castle nut and snap cotter pin provided.
    • A 90 degree SAE grease fitting is included for servicing.

    Interchange: 527-373
    19427226 · 13466362 · 39001025 · 39089342 · 84035534 · 84289692 · TC6805 · CB91543 · 23269163 · 23403025 · RK623586 · 2608691 · 30034809 · 5CB50684 · X07CJ0942

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19427226, 13466362, 39001025, 39089342, 84035534, 84289692, TC6805, 527-373, CB91543, 23269163, 23403025, RK623586, CMS501255, 2608691, 30034809, 5CB50684, X07CJ0942

    Frequently Asked Questions

    Is this a 2017 Chevy Cruze lower control arm?

    Yes. Mevotech Supreme CMS501255 is the front left lower control arm with ball joint for the 2016-2019 Chevrolet Cruze, which includes the 2017 model year.

    Is this 2016-2019 Chevy Cruze control arm replacement also made for the 2016-2019 Chevrolet Volt?

    Yes. Mevotech Supreme CMS501255 fits the 2016-2019 Chevrolet Volt as well as the 2016-2019 Chevrolet Cruze, in the front left lower position.

    What is the Mevotech Supreme control arm made of?

    The control arm is stamped steel with a reinforced ball joint head, and the bushings are rubber. A protective surface treatment resists rust build-up.

    Does this control arm come with a castle nut and cotter pin?

    Yes. Mevotech Supreme CMS501255 includes the part-specific castle nut and snap cotter pin for the ball joint, plus a 90 degree SAE grease fitting.

    Is the ball joint on this lower control arm pre-greased?

    Yes. The ball joint on this front left lower arm comes pre-greased, and the 90 degree SAE grease fitting allows later servicing.
