Front Left Upper Control Arm with Ball Joint for 2004-2012 Chevrolet Colorado & More - Mevotech Supreme CMS50136

$144.99

Vehicles this part fits

    Part number: CMS50136
    UPC: 669719450850
    Condition: New
    Weight: 7.71 LBS
    Item Package Quantity: 1
    $144.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS50136
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS50136
    $144.99
    $144.99

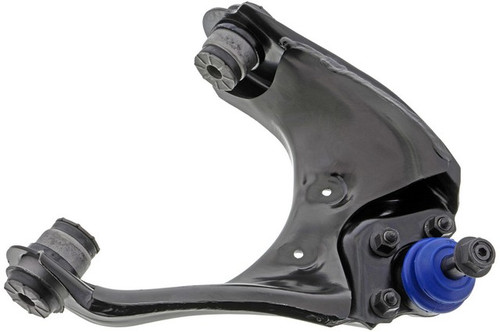

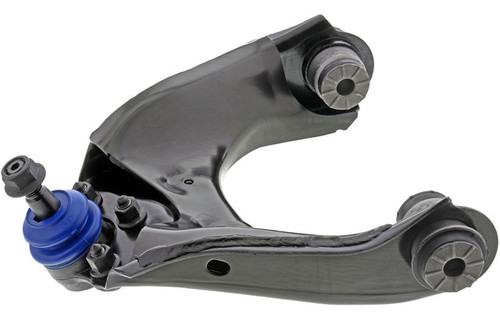

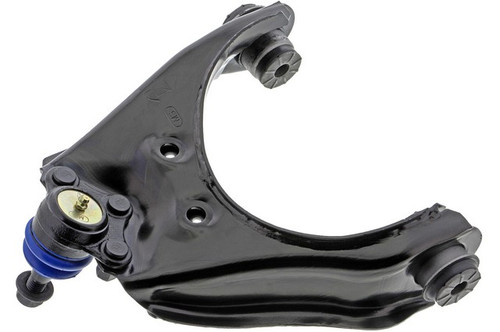

    Mevotech Supreme CMS50136 front left upper control arm with ball joint for the 2004-2012 Chevrolet Colorado and other vehicles connects the steering knuckle to the frame. This Mevotech Supreme suspension control arm is also called a control arm and ball joint assembly, and its bushings are included.

    • Mevotech Supreme line, engineered in-house with application-specific upgrades for durability and performance
    • Patented sintered bearings for longer-lasting performance
    • 180 degree SAE grease fitting included for easy servicing
    • Knurling that locks the control arm bushing to the sub-frame
    • Stamped steel construction with a protective surface treatment that resists rust

    Quick facts

    • Part: Mevotech Supreme CMS50136 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2004-2012 Chevrolet Colorado and other vehicles
    • Position: Front left upper
    • Material: Steel control arm with rubber bushing
    • Condition: New

    A clunk over bumps, uneven tire wear or loose steering can mean this control arm or its ball joint is worn, but a loose tie rod end or sway bar link can be behind those signs too, so trace the cause first.

    Fits

    This control arm is a direct-fit replacement for the 2004-2012 Chevrolet Colorado and the 2004-2012 GMC Canyon, and its stamped steel construction is built to OE-level specifications. This listing is one control arm for the front left; one goes on each side of the front axle, the front right is ordered separately, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: front left upper
    • Quantity per application: 1
    • Maximum length: 12.25 in
    • Maximum width: 13.0 in
    • Ball joint mounting type: bolt in

    Build and materials

    • Construction: stamped steel
    • Control arm material: steel
    • Bushing material: rubber
    • Ball joint stud: threaded
    • Greaseable and pre-greased
    • Condition: new
    • Country of origin: China

    In the box

    One control arm with ball joint. Bushings and mounting hardware are included.

    Installation notes

    • Comes pre-greased.
    • A part-specific locking nut is provided to speed up ball joint installation.
    • Labor Saver designs, tools and hardware are meant to make installation faster and easier.

    Interchange: 622.66032 · 521-383
    19289960 · 15167939 · TC5999 · TC6586 · CA90197 · CB90197 · CB90197PR · CA8674 · 15213849 · RK621900 · 30034684 · 4CB50084 · 12269 · RP12269 · 5021236 · SK521383 · TK621900

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19289960, 622.66032, 15167939, TC5999, TC6586, 521-383, CA90197, CB90197, CB90197PR, CA8674, 15213849, RK621900, CMS50136, 30034684, 4CB50084, 12269, RP12269, 5021236, SK521383, TK621900

    Frequently Asked Questions

    Is CMS50136 one of the Chevy Colorado control arms for 2004-2012?

    Yes. Mevotech Supreme CMS50136 fits the 2004-2012 Chevrolet Colorado and the 2004-2012 GMC Canyon, in the front left upper position.

    Is the Mevotech Supreme control arm greaseable?

    Yes. Mevotech Supreme CMS50136 is greaseable, comes pre-greased and includes a 180 degree SAE grease fitting.

    Does the CMS50136 come with bushings and a locking nut?

    Yes. The bushings and mounting hardware are included, and a part-specific locking nut is provided for the ball joint.

    What are this upper control arm and its bushing made of?

    The control arm is stamped steel and the bushing is rubber. A protective surface treatment helps resist rust.

    Does this upper control arm include the ball joint?

    Yes. The ball joint is part of the assembly; it is a bolt-in type with a threaded stud.
