    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS50148
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS50148
    $118.99
    $118.99

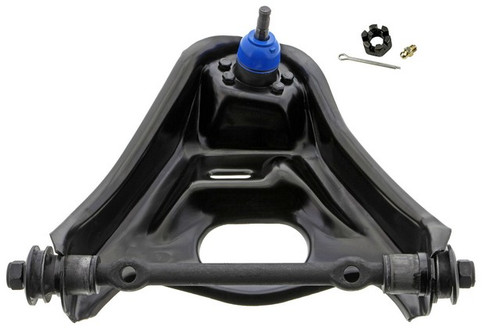

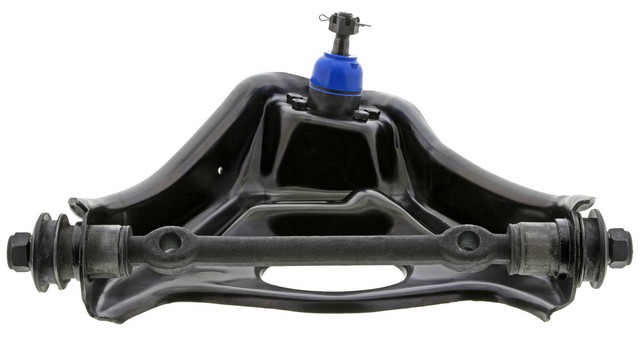

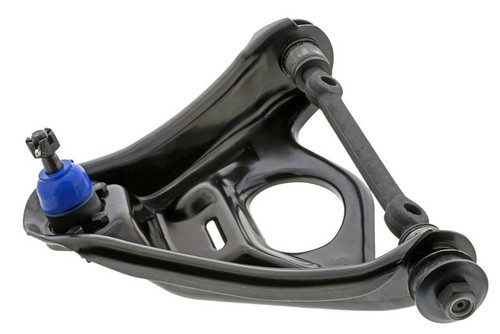

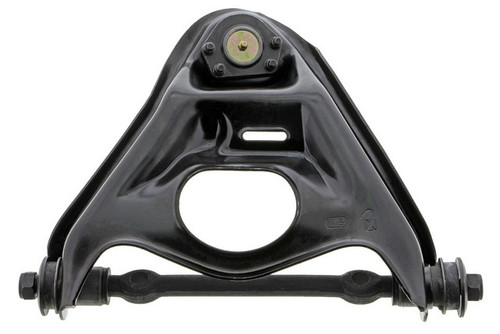

    Mevotech Supreme CMS50148 front left upper control arm with ball joint for the 1990-2005 Chevrolet Astro and other vehicles locates the front left wheel as the suspension moves. Also sold as a control arm and ball joint assembly, it comes with the rubber bushings already in the arm.

    • Mevotech Supreme line, engineered in-house with application-specific upgrades
    • Sintered metal bearing for longer-lasting performance
    • 180 degree SAE grease fitting included, and the ball joint comes pre-greased
    • Stamped steel construction
    • Protective surface treatment to prevent rust build-up

    Quick facts

    • Part: Mevotech Supreme CMS50148 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 1990-2005 Chevrolet Astro and other vehicles
    • Position: Front left upper
    • Material: Steel
    • Condition: New

    A clunk over bumps, loose steering or uneven tire wear can mean a worn control arm or ball joint. Before replacing it, look over the bushing rubber and the ball joint for cracks or leaking grease with the engine off; if they look sound, have a shop find the cause. This listing is one arm for the front left upper position, with a matching arm on the right as a separate part, and both sides are normally replaced together.

    Fits

    It fits the 1990-2005 Chevrolet Astro and the 1990-2005 GMC Safari.

    Specifications

    Fit and size

    • Position: Front left upper
    • Quantity per vehicle position: 1
    • Maximum width: 15.85 in
    • Maximum length: 12.65 in
    • Ball joint mounting: Bolt in
    • Ball joint stud: Threaded

    Build and materials

    • Control arm material: Steel
    • Bushing material: Rubber, included
    • Bearing material: Sintered metal
    • Pre-greased and greaseable, grease fitting included
    • Condition: New
    • Country of origin: Thailand

    In the box

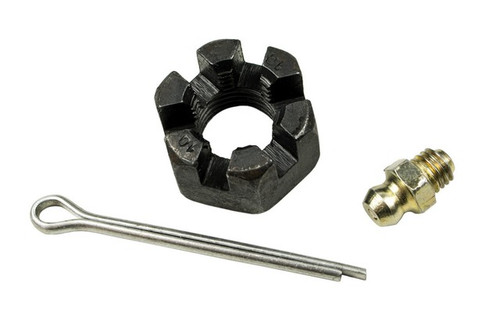

    One control arm with ball joint and rubber bushings, plus the castle nut, cotter pin and grease fitting.

    Installation notes

    • Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
    • Labor Saver™ designs, tools and hardware are intended to make installation faster.

    Interchange: 2703-94968
    19356750 · 12474031 · 15588793 · 15635795 · 2607563 · 30034694 · 8CB50417

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19356750, 2703-94968, 12474031, 15588793, 15635795, CMS50148, 2607563, 30034694, 8CB50417

    Frequently Asked Questions

    Does this control arm fit the 1990-2005 GMC Safari on the front left upper side?

    Yes. Mevotech Supreme CMS50148 is a front left upper control arm for the 1990-2005 GMC Safari and the 1990-2005 Chevrolet Astro, with a matching arm for the right side sold separately.

    Does this front left upper control arm come with a castle nut and cotter pin?

    Yes. It includes the part-specific castle nut and cotter pin for the ball joint, a 180 degree SAE grease fitting, and the rubber bushings already in the arm.

    What is the bearing material in this Mevotech Supreme control arm?

    The bearing is sintered metal. The arm itself is steel, and the bushings are rubber.

    Does this Mevotech Supreme suspension control arm need greasing?

    Yes. The Mevotech CMS50148 ball joint comes pre-greased and is greaseable through the included 180 degree SAE grease fitting.

    How can I tell if the upper control arm bushing is worn?

    With the engine off, cracked, split or torn bushing rubber is visible. A clunk over bumps or uneven tire wear can also come from worn suspension parts, and a shop can check the rest.
