Rear Left Upper Control Arm with Ball Joint for 2016-2023 Honda Pilot & More - Mevotech Supreme CMS601231

$130.99

Vehicles this part fits

    Part number: CMS601231
    UPC: 677319077353
    Condition: New
    Weight: 10.86 LBS
    Sold as: 1 per listing, for the rear left side
    $130.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS601231
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS601231
    $130.99
    $130.99

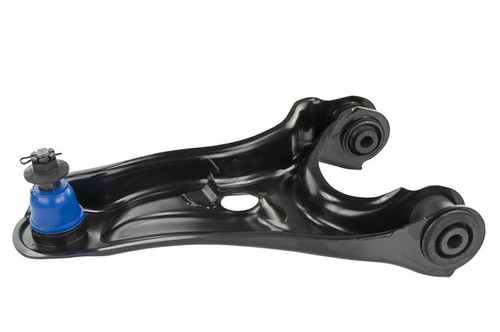

    Mevotech Supreme CMS601231 rear left upper control arm with ball joint for the 2016-2023 Honda Pilot and other vehicles locates the rear wheel and lets it move with the suspension. This Mevotech Supreme suspension control arm includes the ball joint, rubber bushings and dust boot.

    • Mevotech Supreme control arm engineered in-house with application-specific upgrades
    • Sintered bearing for longer-lasting performance
    • Stamped steel construction
    • Protective surface treatment to resist rust build-up
    • Greaseable design with a 90 degree SAE grease fitting for easy servicing

    Quick facts

    • Part: Mevotech Supreme CMS601231 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2016-2023 Honda Pilot and other vehicles
    • Position: Rear left upper
    • Material: Steel
    • Condition: New

    A worn rear upper arm can show up as a clunk over bumps, uneven tire wear or loose, wandering handling. Before you replace the arm, rule out worn tires, a loose wheel bearing or a weak shock, since those can produce similar signs.

    Fits

    This part is listed for a wide range of Honda and Acura models, including the 2019-2025 Honda Passport and the 2017-2025 Honda Ridgeline, and it is a direct-fit replacement rear control arm for the 2016-2023 Honda Pilot. Open the "Vehicles it fits" section to check your exact model and engine. The rear axle takes one upper arm per side; this listing is the left one, and the right side is a separate part that is normally replaced at the same time. The stamped steel construction is built to meet or exceed OE specifications.

    Specifications

    Fit and size

    • Position: rear left upper
    • Quantity: 1 per listing, for the rear left side
    • Maximum length: 16.1 inches
    • Maximum width: 10.25 inches
    • Ball joint mounting: press in
    • Ball joint stud: threaded

    Build and materials

    • Control arm material: steel, not adjustable
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Dust boot material: neoprene
    • Pre-greased and greaseable
    • Condition: new
    • Country of origin: China

    In the box

    One control arm with ball joint, rubber bushings, neoprene dust boot, grease fitting and mounting hardware.

    Installation notes

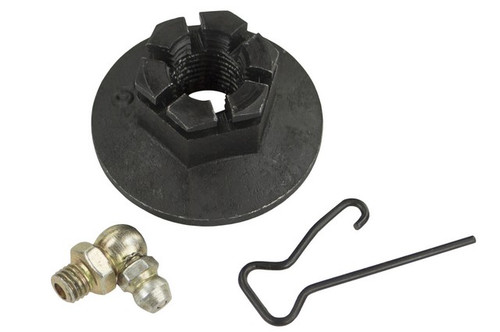

    • The ball joint secures to the vehicle with the part-specific slotted castle nut and snap cotter pin provided.
    • The ball joint comes pre-greased.
    • Labor Saver design, tools and hardware are intended to make installation faster and easier.

    Interchange: 19390869 · CB50607 · 52520T6ZA00 · 52520T6ZA01 · 52520T6ZA02 · 52520T6ZA03 · 52520TZ5A00 · 52520TZ5A10 · RK623635 · 30031484

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19390869, CB50607, 52520T6ZA00, 52520T6ZA01, 52520T6ZA02, 52520T6ZA03, 52520TZ5A00, 52520TZ5A10, RK623635, CMS601231, 30031484

    Frequently Asked Questions

    Is this a 2016-2023 Honda Pilot control arm for the rear left upper position?

    Yes. Mevotech Supreme CMS601231 is the rear left upper control arm with ball joint for the 2016-2023 Honda Pilot. The right side is a separate part.

    Does this 2017-2025 Honda Ridgeline control arm go on the rear left upper side?

    Yes, the 2017-2025 Honda Ridgeline is listed for this part, which mounts at the rear left upper position. For any other model, open the "Vehicles it fits" section and check your exact model and engine.

    Does this control arm and ball joint assembly come with a grease fitting?

    Yes. Mevotech Supreme CMS601231 includes a 90 degree SAE grease fitting, and the ball joint is pre-greased. Mounting hardware is included too.

    What are the bearing and boot on this rear upper control arm made of?

    This arm has a sintered metal bearing and a neoprene dust boot. The bushings are rubber and the arm itself is steel.

    What holds the ball joint on this rear upper arm?

    A part-specific slotted castle nut and a snap cotter pin come with the arm and hold the ball joint to the vehicle.
