Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS301253

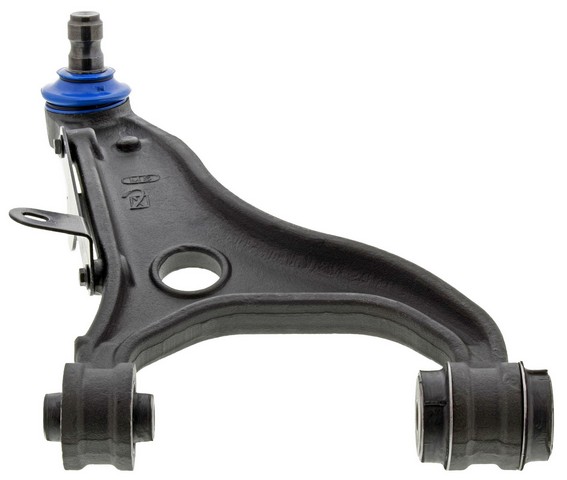

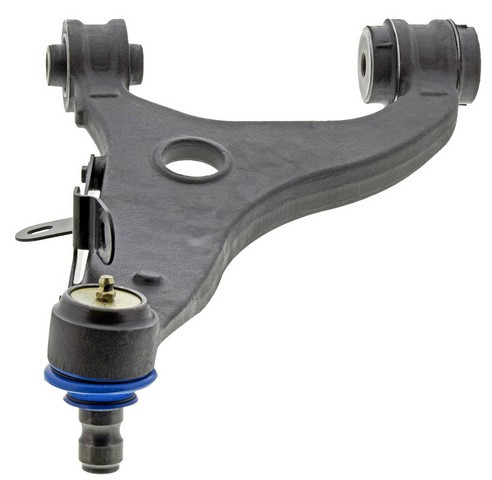

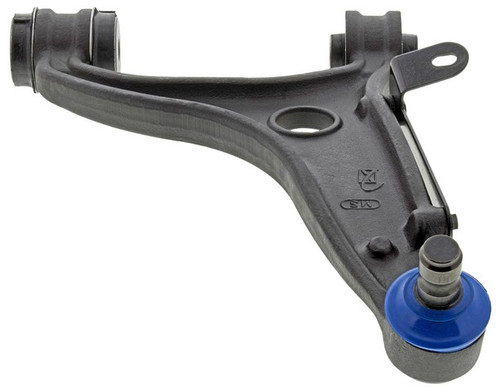

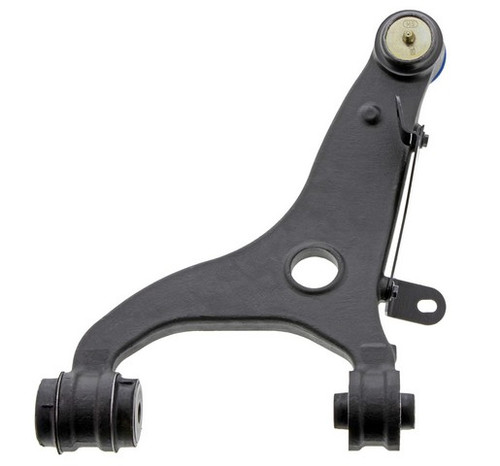

Mevotech Supreme CMS801199 rear left upper control arm with ball joint for the 2008-2013 Subaru Forester and other vehicles links the rear left wheel to the body. The control arm and ball joint assembly keeps the wheel located as the suspension moves up and down.
Clunking over bumps or uneven rear tire wear can mean a worn arm or ball joint, though worn bushings or other links make similar noises. Before you replace this arm, rule out those parts and the tires. Left and right arms are normally replaced together; this listing is one arm for the left side, and one goes on each side of the rear axle.
It is a control arm for the 2008-2013 Subaru Forester and the 2010-2019 Subaru Outback.
Fit and size
Build and materials

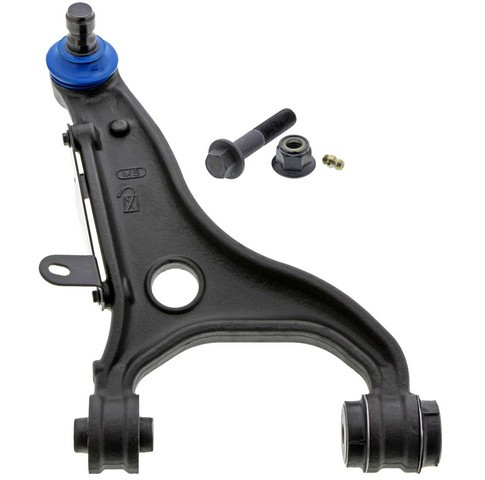

One control arm with ball joint, dust boot, grease fitting, pinch bolt and locking nut.
Interchange: 19429454 · RK623395 · 2608715 · 20252AJ03A · 20252AL03A · 20252SC010
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
Does the Mevotech Supreme CMS801199 fit the 2010-2019 Subaru Outback?
Yes. Mevotech Supreme CMS801199 is a rear left upper control arm with ball joint for the 2010-2019 Subaru Outback and the 2008-2013 Subaru Forester.
Does this control arm come with a grease fitting and a pinch bolt?
Yes. This rear left upper arm includes the ball joint, a neoprene dust boot, a 180 degree SAE grease fitting, an application-specific pinch bolt and a locking nut.
Is the Mevotech Supreme suspension control arm greaseable?
Yes. Mevotech Supreme CMS801199 comes pre-greased and has a 180 degree SAE grease fitting, so the ball joint can be greased during later service.
How can I tell if the ball joint on a rear left upper control arm is worn?
With the engine off, look at the dust boot for tears or leaking grease. Clunking over bumps can also be a sign, and a shop can test the joint for play.
Is 20252AJ03A an interchange number for this control arm?
Yes. Mevotech Supreme CMS801199 is listed as a replacement for 20252AJ03A, along with 20252AL03A and 20252SC010.
