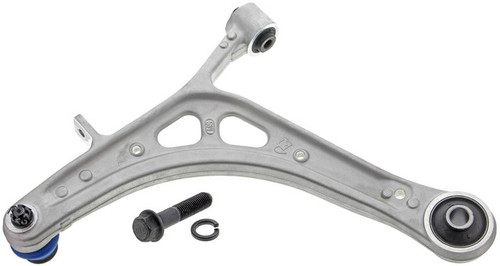

Front Right Lower Control Arm with Ball Joint for 2005-2009 Subaru Outback & More - Mevotech Supreme CMS80181

$147.99

Vehicles this part fits

    Part number: CMS80181
    UPC: 669719210430
    Condition: New
    Weight: 11.30 LBS
    Item Package Quantity: 1
    $147.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS80181
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS80181
    $147.99
    $147.99

    Mevotech Supreme CMS80181 front right lower control arm with ball joint for the 2005-2009 Subaru Outback and other vehicles links the wheel to the vehicle and lets it pivot. This Mevotech Supreme control arm comes as an assembly with the ball joint, bushings and dust boot, and it is also called a control arm and ball joint assembly.

    • Mevotech Supreme line, engineered in-house with application-specific upgrades
    • Sintered metal bearings for durability
    • Surface treatment on the ball joint that prevents rust build-up
    • Rubber bushings with a solid cross section for increased stiffness and durability
    • Application-specific ball stud system with a larger sphere

    Quick facts

    • Part: Mevotech Supreme CMS80181 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2005-2009 Subaru Outback and other vehicles
    • Position: Front right lower
    • Material: Aluminum
    • Condition: New

    A clunk over bumps, uneven tire wear or a loose feel in the steering can mean a worn ball joint or bushing. Worn sway bar links, struts, tie rod ends or a wheel bearing can be behind these signs too, so track down the cause before you buy.

    Fits

    It is a direct-fit replacement for the 2005-2009 Subaru Outback and the 2008-2011 Subaru Impreza, and it is also the 2005-2009 Subaru Legacy control arm, built to OE-level specifications. This listing is one arm for the front right; the front left is a separate part, and both sides are normally replaced together.

    Specifications

    Fit and size

    • Position: Front right lower
    • Quantity per vehicle: 1
    • Maximum width: 15.8 in
    • Maximum length: 15.8 in
    • Ball joint stud type: Threaded
    • Ball joint mounting type: Press in

    Build and materials

    • Control arm material: Aluminum
    • Bushing material: Rubber
    • Bearing material: Sintered metal
    • Dust boot material: Neoprene
    • Pre-greased: Yes
    • Condition: New
    • Country of origin: China

    In the box

    One control arm with ball joint, bushings, dust boot, castle nut and cotter pin. The front right takes one.

    Installation notes

    • The assembly comes pre-greased.
    • The ball joint secures to the vehicle with the part-specific castle nut and cotter pin provided.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the 2005-2009 Subaru Outback lower control arm for the front right?

    Yes. Mevotech Supreme CMS80181 is a front right lower control arm with ball joint for the 2005-2009 Subaru Outback. The front left side is a separate part.

    Is CMS80181 the 2008-2011 Subaru Impreza control arm for the front right?

    Yes. Mevotech Supreme CMS80181 fits the front right lower position on the 2008-2011 Subaru Impreza, and also on the 2005-2009 Subaru Legacy.

    Does the Mevotech Supreme CMS80181 come with a castle nut and cotter pin?

    Yes. This listing is one arm with its ball joint, bushings, dust boot, castle nut and cotter pin, and the front right takes one.

    What are the bearings and bushings made of on this control arm?

    The bearings are sintered metal and the bushings are rubber with a solid cross section. The arm itself is aluminum and the dust boot is neoprene.

    How can I tell if the ball joint on my control arm is worn?

    You may notice a clunk over bumps, a pull to one side or a loose steering feel. Checking the ball joint for play means lifting the vehicle, so have a shop inspect it.
