Front Right Lower Control Arm with Ball Joint for 2008-2019 Toyota Highlander & More - Mevotech Supreme CMS861029

$124.99

Vehicles this part fits

    Part number: CMS861029
    UPC: 669719073790
    Condition: New
    Weight: 11.56 LBS
    Item Package Quantity: 1
    $124.99

    Out of stock

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS861029
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS861029
    $124.99
    $124.99

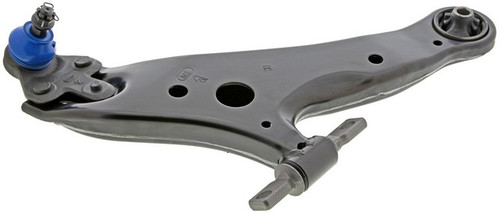

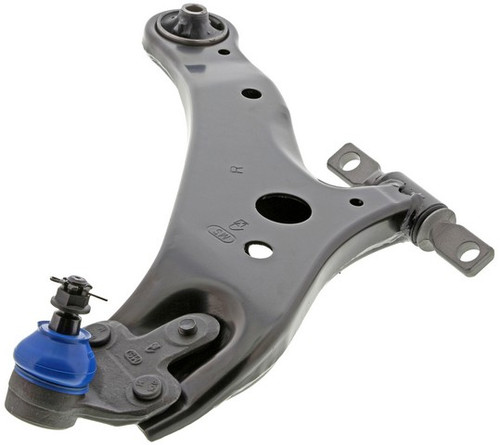

    Mevotech Supreme CMS861029 front right lower control arm with ball joint for the 2008-2019 Toyota Highlander and other vehicles joins the wheel to the chassis. This Mevotech Supreme suspension control arm comes as a control arm and ball joint assembly.

    • Mevotech Supreme control arm engineered in-house with application-specific upgrades for durability and performance
    • Ball joint pre-assembled to the control arm
    • Sintered bearings for longer-lasting performance
    • 180 degree SAE grease fitting included for servicing the greaseable ball joint
    • Knurling that locks the control arm bushing to the sub-frame
    • Application-specific ball stud system with a larger sphere

    Quick facts

    • Part: Mevotech Supreme CMS861029 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2008-2019 Toyota Highlander and other vehicles
    • Position: Front right lower
    • Material: Steel
    • Condition: New

    A clunk over bumps, loose steering or uneven front tire wear can come from a worn arm or ball joint, or from tires and alignment. With the engine off, look for a torn dust boot, leaking grease or cracked bushing rubber first. Front arms are normally replaced as a pair; this listing is one arm, and the front left is a separate part.

    Fits

    Listed for a wide range of Toyota and Lexus models, it fits the 2008-2019 Toyota Highlander, the 2010-2022 Lexus RX350 and the 2018-2022 Lexus RX350L, taking one on this side. Owners of other vehicles can look up their model in the "Vehicles it fits" section.

    Specifications

    Fit and size

    • Position: front right lower
    • Quantity per vehicle: 1
    • Maximum length: 21.0 in
    • Maximum width: 17.0 in
    • Ball joint: bolt-in mounting, threaded stud

    Build and materials

    • Control arm: stamped steel
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Dust boot material: neoprene
    • Surface: protective surface treatment to resist rust
    • Condition: new
    • Country of origin: China

    In the box

    One control arm with ball joint, bushings, dust boot, grease fitting, slotted castle nut and snap cotter pin.

    Installation notes

    • Secure the ball joint to the vehicle with the part-specific slotted castle nut and snap cotter pin provided.
    • The ball joint comes pre-greased.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this the Toyota Highlander control arm for the 2008-2019 model years?

    Yes. Mevotech Supreme CMS861029 is listed for the 2008-2019 Toyota Highlander as the front right lower arm, one per vehicle on that side.

    Which side is this lower control arm for the 2008-2019 Toyota Highlander?

    Mevotech Supreme CMS861029 is the front right side. This listing is one arm; the front left is a separate part.

    What is the Mevotech Supreme lower control arm made of?

    The arm is stamped steel with a protective surface treatment. It also has rubber bushings, sintered metal bearings and a neoprene dust boot.

    Does this control arm with ball joint include the castle nut and cotter pin?

    Yes. The ball joint is pre-assembled, and the part-specific slotted castle nut, snap cotter pin, bushings and dust boot are included.

    Can the ball joint on this control arm be greased?

    Yes. The ball joint comes pre-greased, and a 180 degree SAE grease fitting is included for later servicing.
