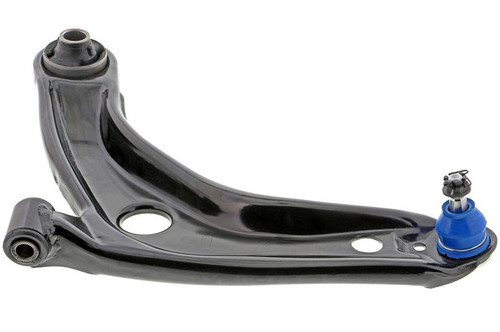

Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS10167
Mevotech Supreme CMS86138 front left lower control arm with ball joint for the 2012-2019 Toyota Prius c and other vehicles links the wheel to the chassis. Sold as a control arm and ball joint assembly, it lets the wheel move up and down while the ball joint lets it steer.
A clunk over bumps, uneven tire wear or loose steering can mean a worn control arm bushing or ball joint. These signs alone do not prove the arm is the problem, since a worn strut mount can make a similar noise.
It is a direct-fit replacement for the 2012-2019 Toyota Prius c, the 2006-2019 Toyota Yaris and the 2008-2014 Scion xD. This listing is one arm for the front left; the front right is a separate part, and both sides are normally replaced together. The front axle takes one arm per side.
Fit and size
Build and materials
One control arm with ball joint, bushings and mounting hardware.
Product information is for general reference and may contain errors. See our Disclaimer.
Will the Mevotech Supreme CMS86138 fit a 2006-2019 Toyota Yaris?
Yes. Mevotech Supreme CMS86138 is a front left lower control arm for the 2006-2019 Toyota Yaris, and it also fits the 2012-2019 Toyota Prius c and the 2008-2014 Scion xD.
Does this Mevotech Supreme control arm come with a castle nut and cotter pin?
Yes. A slotted castle nut and a snap cotter pin come with it for the ball joint, and the rubber bushings are included.
Is the ball joint on the Mevotech Supreme lower control arm press-in or bolt-on?
On the Mevotech Supreme CMS86138, the ball joint has press-in mounting and a threaded stud. It comes pre-greased.
What are the signs a front left lower control arm or its ball joint is worn?
A clunk over bumps, uneven tire wear or a loose feel in the steering can mean wear here. Have a shop inspect it promptly, since this is a steering and suspension part.
What does the knurling on this control arm do?
The knurling locks the control arm bushing to the sub-frame for an optimal fit.
