Front Right Lower Control Arm with Ball Joint for 2012-2019 Toyota Prius c & More - Mevotech Supreme CMS86139

$158.99

Vehicles this part fits

    Part number: CMS86139
    UPC: 669719451000
    Condition: New
    Weight: 7.20 LBS
    Item Package Quantity: 1
    $158.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS86139
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS86139
    $158.99
    $158.99

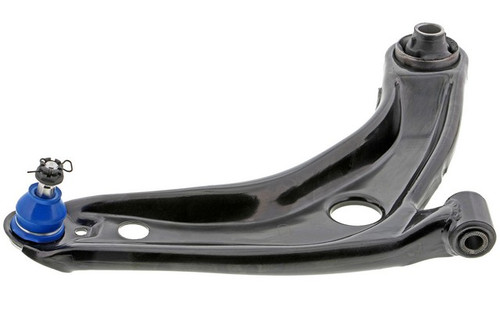

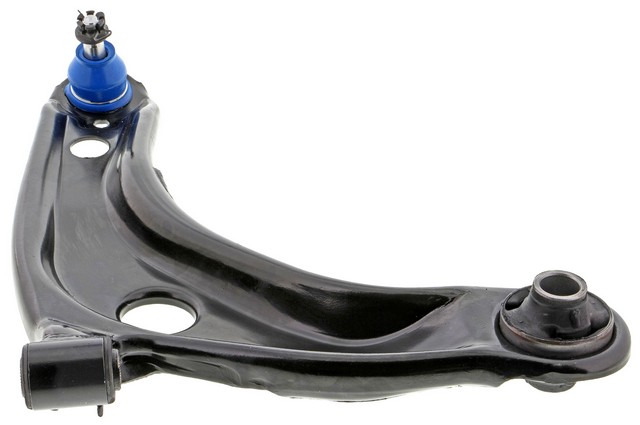

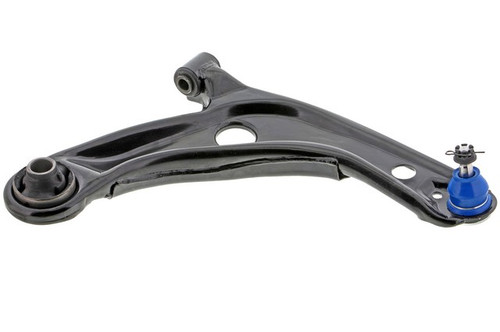

    Mevotech Supreme CMS86139 front right lower control arm with ball joint for the 2012-2019 Toyota Prius c and other vehicles connects the front right wheel to the vehicle and lets it pivot on the ball joint. Sold as a control arm and ball joint assembly, it includes the rubber bushings.

    • Mevotech Supreme lower control arm engineered in-house with application-specific upgrades for durability and performance
    • Labor Saver™ designs, tools and hardware for faster, easier installation
    • Knurling locks the control arm bushing to the sub-frame
    • Stamped steel construction
    • Protective surface treatment resists rust build-up
    • Extensive in-house and third-party durability testing

    Quick facts

    • Part: Mevotech Supreme CMS86139 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2012-2019 Toyota Prius c and other vehicles
    • Position: Front right lower
    • Material: Steel
    • Condition: New

    A clunk over bumps, vague steering or uneven front tire wear can mean a worn control arm bushing or ball joint. These signs alone do not prove the arm is the problem; a worn strut mount can make similar noises.

    Fits

    It is a direct-fit control arm for the 2006-2019 Toyota Yaris, the 2008-2014 Scion xD and the 2012-2019 Toyota Prius c. The front axle has one lower arm on each side; this listing is the right one, so the left is a separate part, and the pair is normally replaced at the same time.

    Specifications

    Fit and size

    • Position: front right lower
    • Quantity per application: 1
    • Maximum length: 14.5 in
    • Maximum width: 17.0 in
    • Ball joint mounting type: press in
    • Ball joint stud type: threaded

    Build and materials

    • Control arm material: steel
    • Bushing material: rubber, bushings included
    • Surface: protective surface treatment
    • Mounting hardware: included
    • Condition: new
    • Country of origin: China

    In the box

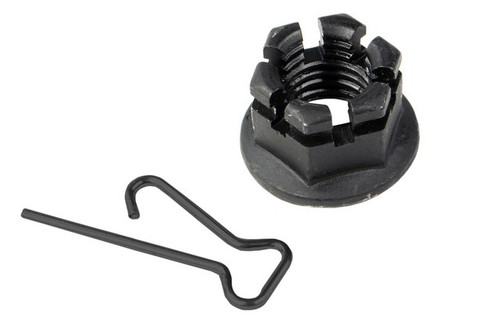

    One control arm with ball joint, bushings, a slotted castle nut and a snap cotter pin.

    Installation notes

    • Secure the ball joint to the vehicle with the part-specific slotted castle nut and easy snap cotter pin provided.
    • The ball joint comes pre-greased.

    Product information is for general reference and may contain errors. See our Disclaimer.

    Frequently Asked Questions

    Is this Mevotech Supreme control arm the right one for the 2006-2019 Toyota Yaris?

    Yes. Mevotech Supreme CMS86139 fits the 2006-2019 Toyota Yaris in the front right lower position, and the same arm also fits the 2012-2019 Toyota Prius c.

    Does the Mevotech Supreme suspension control arm come with bushings and a castle nut?

    Yes. Mevotech Supreme CMS86139 includes the ball joint, the rubber bushings, a slotted castle nut and a snap cotter pin.

    How does the ball joint mount on this control arm, and is it greased?

    The ball joint is a press-in type with a threaded stud. It comes pre-greased.

    Can a worn lower control arm bushing or ball joint cause a clunk over bumps?

    It can. Worn bushings or a worn ball joint can bring clunks over bumps, vague steering or uneven tire wear, and a shop can inspect the front end to find the cause.

    What protects this control arm from rust?

    A protective surface treatment on the stamped steel arm resists rust build-up. Knurling also locks the bushing to the sub-frame.
