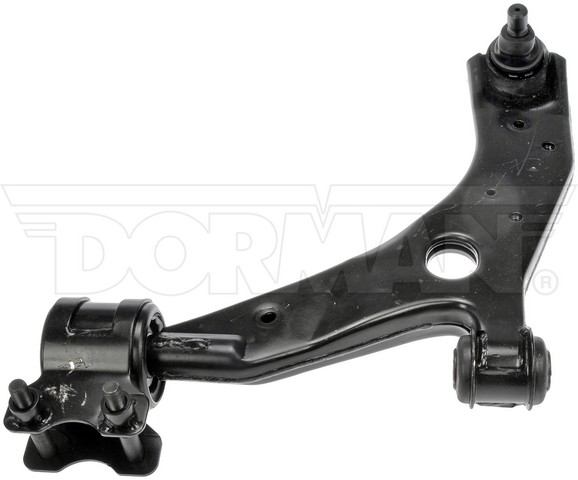

Front Left Lower Control Arm with Ball Joint for 2007-2009 Mazda 3 - Dorman 522-059

$116.99

Vehicles this part fits

    Part number: 522-059
    UPC: 019495438076
    Condition: New
    Weight: 9.26 LBS
    Item Package Quantity: 1
    $116.99
    Adding to cart… The item has been added

    Have questions?

    Dorman - OE Solutions Suspension Control Arm and Ball Joint Assembly P/N:522-059
    Dorman - OE Solutions Suspension Control Arm and Ball Joint Assembly P/N:522-059
    $116.99
    $116.99

    Dorman 522-059 front left lower control arm with ball joint for the 2007-2009 Mazda 3 connects the front left wheel to the chassis and holds the ball joint. The rubber Dorman control arm bushings and the ball joint come pre-installed.

    • Dorman OE Solutions line, standard replacement grade
    • Complete repair assembly that saves installation time and labor
    • Stamped steel arm with boxed construction
    • Additional coatings for rust and corrosion resistance
    • Pre-greased assembly with a pinch-type ball joint stud
    • Testing intended to support a smooth ride and directional stability

    Quick facts

    • Part: Dorman 522-059 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2007-2009 Mazda 3
    • Position: Front left lower
    • Material: Steel control arm, rubber bushings
    • Condition: New

    A clunk over bumps, uneven tire wear or loose steering can go with a worn lower arm, bushing or ball joint. Before you replace this arm, rule out worn sway bar links, tie rod ends or struts. Replace the front lower arms as a pair when you can, since this listing is one arm for the front left and the front right is a separate part.

    Fits

    This Dorman control arm is a direct replacement for the original part on the 2007-2009 Mazda 3, which takes one lower arm on each side of the front axle.

    Specifications

    Fit and size

    • Position: front left lower
    • Quantity per vehicle: 1
    • Maximum length: 237 mm
    • Maximum width: 288.5 mm
    • Mounting hole diameter: 12.3 mm
    • Ball joint thread diameter: 14 mm
    • Ball joint stud length: 14 mm

    Build and materials

    • Type: stamped, boxed construction
    • Control arm material: steel
    • Bushing material: rubber
    • Ball joint and bushings: installed
    • Grease fitting: not included
    • Condition: New
    • Country of origin: Taiwan

    In the box

    One control arm with ball joint, with the bushings pre-installed and mounting hardware included.

    Interchange: CA10423 · 5CB76141 · RK620041 · RK620068 · B37F34350A · B37F34350B · GS801104 · CMS801104 · 2608241

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    CA10423, 5CB76141, RK620041, RK620068, B37F34350A, B37F34350B, GS801104, CMS801104, 2608241

    Frequently Asked Questions

    Is Dorman 522-059 the 2007-2009 Mazda 3 control arm for the front left?

    Yes. Dorman 522-059 is the front left lower control arm with ball joint for the 2007-2009 Mazda 3. The right side is a separate part.

    Does the Dorman suspension control arm and ball joint assembly include a grease fitting?

    No. Dorman 522-059 has no grease fitting; the assembly is pre-greased and comes with the ball joint and bushings installed and mounting hardware included.

    What is this Dorman lower control arm made of?

    The arm is stamped steel with boxed construction, and the bushings are rubber. The ball joint stud is a pinch type with a 14 mm thread.

    Why does my car clunk over bumps, and could the front lower control arm be involved?

    A worn bushing or ball joint can clunk over bumps, loosen steering feel or wear tires unevenly. Look for cracked bushing rubber with the car parked; a shop can check ball joint play.

    Does Dorman 522-059 cross to other part numbers such as RK620041?

    Yes. Dorman 522-059 interchanges with RK620041, RK620068 and CA10423, among the other numbers on the Interchange line.
