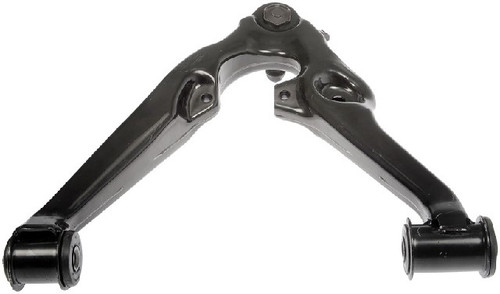

Dorman 527-064 front right lower control arm with ball joint for the 2014-2018 Chevrolet Silverado 1500 and other vehicles links the front right wheel to the suspension. This Dorman suspension control arm and ball joint assembly combines the arm and its ball joint in one piece.
- Tested for a smooth, stable and safe ride
- Ball joint and bushings come pre-installed, which saves time and labor
- Additional coatings give the arm rust and corrosion resistance
- Steel casting/forged control arm with a threaded ball joint stud, 14 mm thread diameter
- Part of the Dorman OE Solutions line
Quick facts
- Part: Dorman 527-064 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 2014-2018 Chevrolet Silverado 1500 and other vehicles
- Position: Front right lower
- Material: Steel
- Condition: New
A clunk over bumps, loose or wandering steering and uneven front tire wear can come from worn control arm bushings or a worn ball joint. Other worn suspension or steering parts can produce them too. Before replacing anything, look the arm over for cracks or bends and the bushings and ball joint boot for splits, wear or rust; a shop can test ball joint play safely.
Fits
The 2014-2018 Chevrolet Silverado 1500, the 2014-2018 GMC Sierra 1500 and the 2015-2020 Chevrolet Tahoe take this Dorman suspension control arm, along with a wide range of other Chevrolet, GMC and Cadillac models. It is a direct replacement for the original equipment on these vehicles, and the front right position takes one arm. This listing is one arm; the front left is a separate part, and both sides are normally replaced together. Open the "Vehicles it fits" section to check your exact model and engine.
Specifications
Fit and size
- Position: front right lower
- Quantity per vehicle: 1
- Mounting hole diameter: 12.3 mm
- Ball joint thread diameter: 14 mm
- Ball joint stud length: 42 mm
- Control arm maximum width: 288.5 mm
- Control arm maximum length: 237 mm
Build and materials
- Type: control arm and ball joint assembly, casting/forged
- Control arm material: steel
- Bushing material: steel
- Ball joint: threaded stud, machined mounting
- Adjustable: no
- Grade: standard replacement
- Condition: new
- Country of origin: Taiwan
In the box
One control arm with the ball joint and bushings already installed. A grease fitting is not included.
Installation notes
- Arrives pre-greased.
- Mounting hardware is included.
Interchange: 820-610114B
CA16514 · 23420262 · 84114506 · 84114508 · CK620889 · RK623299 · GS501185 · CMS501185 · 2608235 · 11CB50562 · SMS501185 · X07CJ1071
This part cross-references / interchanges with the following part numbers:
820-610114B, CA16514, 23420262, 84114506, 84114508, CK620889, RK623299, GS501185, CMS501185, 2608235, 11CB50562, SMS501185, X07CJ1071
Frequently Asked Questions
Does the Dorman 527-064 fit the 2015-2020 Chevrolet Tahoe?
Yes. Dorman 527-064 is a front right lower control arm for the 2015-2020 Chevrolet Tahoe and the 2014-2018 GMC Sierra 1500, and the front right position takes one.
Are the Dorman control arm bushings and ball joint already installed?
Yes. This assembly comes with the ball joint and bushings pre-installed, and mounting hardware is included. A grease fitting is not included.
Is this Dorman lower control arm for the left or right side?
It is for the front right. Dorman 527-064 covers that side only, so the front left needs its own control arm.
What is this Dorman control arm made of?
The control arm is steel, a casting/forged type, with additional coatings for rust and corrosion resistance. The bushing material is steel as well.
Does the ball joint on Dorman 527-064 have a threaded stud?
Yes. The ball joint has a threaded stud with a 14 mm thread diameter and a 42 mm stud length.
