Front Left Lower Control Arm with Ball Joint for 2020-2025 Ford Explorer & More - Mevotech Supreme CMS401286

$200.99

Vehicles this part fits

    Part number: CMS401286
    UPC: 677319508420
    Condition: New
    Weight: 17.71 LBS
    Item Package Quantity: 1
    $200.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS401286
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS401286
    $200.99
    $200.99

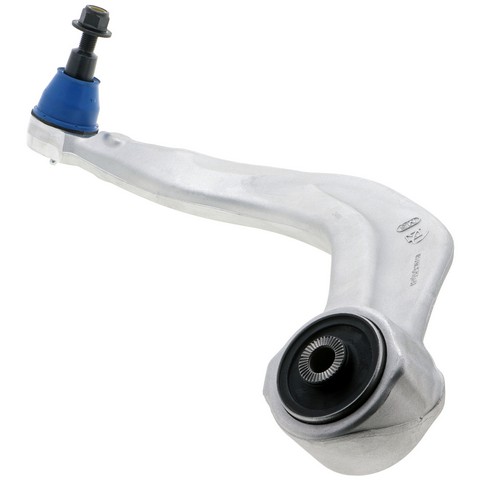

    Mevotech Supreme CMS401286 front left lower control arm with ball joint for the 2020-2025 Ford Explorer and other vehicles joins the wheel to the chassis and pivots on its ball joint. The forged aluminum construction meets or exceeds OE specifications.

    • Mevotech Supreme control arms are engineered in-house with application-specific upgrades for durability and performance
    • Sintered metal bearing for added toughness
    • Rubber bushings upgraded with a double bond for increased stiffness and durability
    • Additional surface treatment on the ball joint that prevents rust build-up
    • 180 degree SAE grease fitting included for servicing
    • Part-specific nylon locking nut provided for ball joint installation

    Quick facts

    • Part: Mevotech Supreme CMS401286 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2020-2025 Ford Explorer and other vehicles
    • Position: Front left lower forward
    • Material: Aluminum
    • Condition: New

    A clunk over bumps, loose steering or uneven front tire wear can mean this control arm, its bushings or the ball joint is worn, though a sway bar link or strut mount can be behind the same signs, so find the source before replacing anything. The 2020-2025 Ford Explorer takes one on the front left; this listing is that single arm, the front right is ordered separately, and the two are normally fitted together.

    Fits

    This lower control arm is a direct-fit replacement for the 2020-2025 Ford Explorer and the 2020-2025 Ford Police Interceptor Utility. The same part is listed as a control arm and ball joint assembly.

    Specifications

    Fit and size

    • Position: Front left lower forward
    • Quantity per application: 1
    • Maximum length: 17.34 in
    • Maximum width: 7.85 in
    • Ball joint stud type: Threaded
    • Adjustable: No

    Build and materials

    • Control arm material: Aluminum
    • Bushing material: Rubber
    • Bearing material: Sintered metal
    • Dust boot material: Neoprene
    • Greaseable and pre-greased: Yes
    • Condition: New
    • Country of origin: China

    In the box

    One control arm with ball joint, bushings, a neoprene dust boot, mounting hardware, a 180 degree SAE grease fitting and a nylon locking nut.

    Installation notes

    • Comes pre-greased.
    • Labor Saver™ designs, tools and hardware are made to make installation faster and easier.

    Interchange: 19531591 · LB5Z3083A · LB5Z3083B · 2609634 · 9CB403111

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19531591, LB5Z3083A, LB5Z3083B, CMS401286, 2609634, 9CB403111

    Frequently Asked Questions

    Is this a control arm for the 2020-2025 Ford Explorer?

    Yes. Mevotech Supreme CMS401286 is the front left lower forward control arm with ball joint for the 2020-2025 Ford Explorer. The right side is a separate part.

    Is this Mevotech Supreme suspension control arm greaseable?

    Yes. Mevotech Supreme CMS401286 is pre-greased and greaseable, and it comes with a 180 degree SAE grease fitting.

    Does this control arm come with a locking nut and dust boot?

    Yes. A part-specific nylon locking nut, a neoprene dust boot, the bushings and mounting hardware are included with the arm and its ball joint.

    What are the bushings and bearing made of on this control arm?

    The bushings are rubber with a double-bonded upgrade, and the bearing is sintered metal. The arm itself is aluminum.

    Which noises can come from a worn control arm ball joint?

    A clunk over bumps, loose steering feel or uneven front tire wear can mean the arm, its bushings or its ball joint is worn. A shop can inspect the suspension to confirm.
