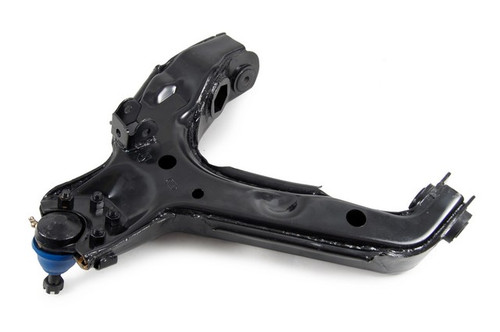

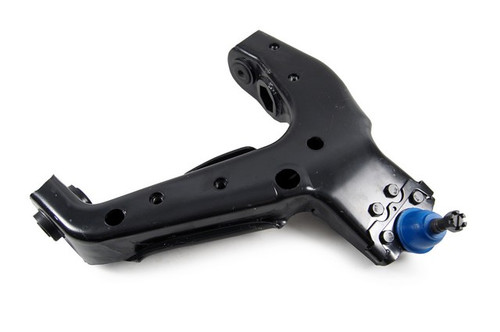

Mevotech Supreme CMS50147 front right lower control arm with ball joint for the 1992-2005 Chevrolet Astro and other vehicles links the front right wheel to the suspension. This Mevotech Supreme control arm, also called a control arm and ball joint assembly, is a steel arm with rubber bushings and a threaded ball joint stud.
- Mevotech Supreme line, engineered in-house with application-specific upgrades for durability and performance
- Protective surface treatment to resist rust build-up
- Pre-greased, greaseable ball joint with a grease fitting included
- Rubber bushings included, with a sintered metal bearing
Quick facts
- Part: Mevotech Supreme CMS50147 control arm with ball joint
- Also called: control arm and ball joint assembly
- Fits: 1992-2005 Chevrolet Astro and other vehicles
- Position: Front right lower
- Material: Steel
- Condition: New
A clunk over bumps, uneven tire wear or loose steering can mean a worn bushing or ball joint, but other worn suspension and steering parts show similar signs. With the engine off, look for cracked bushings, a torn ball joint boot or leaking grease, and find the cause before replacing anything.
Fits
It is a direct-fit control arm for the 1992-2005 Chevrolet Astro and the 1995-2005 GMC Safari. This listing is one arm for the front right; the front left is a separate part, and both sides are normally replaced together. These vehicles take one arm on each side of the front axle.
Specifications
Fit and size
- Position: front right lower
- Quantity per application: 1
- Maximum width: 20 in
- Maximum length: 20.75 in
- Ball joint mounting: bolt-in
- Ball joint stud: threaded
- Adjustable: no
Build and materials
- Control arm material: steel
- Bushing material: rubber
- Bearing material: sintered metal
- Ball joint: pre-greased and greaseable, grease fitting included
- Condition: new
- Country of origin: China
In the box
One control arm with ball joint, bushings, a grease fitting, mounting hardware, and a castle nut and cotter pin.
Installation notes
- Secure the ball joint to the vehicle with the part-specific castle nut and cotter pin provided.
- Labor Saver designs, tools and hardware make installation faster and easier.
Interchange: 521-994
19291122 · VGS50147 · TC6600 · CB91154 · CB91154PR · 15020098 · RK641493 · GS50147 · 2606276 · 174105 · 30034693 · 11CB50097 · 5071784
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
19291122, VGS50147, TC6600, 521-994, CB91154, CB91154PR, 15020098, RK641493, GS50147, CMS50147, 2606276, 174105, 30034693, 11CB50097, 5071784
Frequently Asked Questions
Does the Mevotech Supreme CMS50147 fit the 1995-2005 GMC Safari?
Yes. The Mevotech Supreme CMS50147 is a front right lower control arm with ball joint for the 1995-2005 GMC Safari and the 1992-2005 Chevrolet Astro.
Does the Mevotech Supreme suspension control arm come with a ball joint and hardware?
Yes. This control arm includes the ball joint, bushings, a grease fitting, mounting hardware, and a castle nut and cotter pin for the ball joint.
Is the Mevotech Supreme lower control arm greaseable?
Yes. The CMS50147 ball joint comes pre-greased and is greaseable, and a grease fitting is included.
What secures the ball joint on this front right control arm?
The ball joint is secured to the vehicle with the part-specific castle nut and cotter pin provided. Mevotech Supreme CMS50147 uses Labor Saver designs for faster installation.
Can I keep driving with a worn front control arm?
No. A worn control arm or ball joint affects steering and suspension, so have it checked or replaced promptly.
