Front Left Lower Control Arm with Ball Joint for 2014-2018 Mazda 3 & More - Mevotech Supreme CMS761215

$140.99

Vehicles this part fits

    Part number: CMS761215
    UPC: 677319067163
    Condition: New
    Weight: 12.10 LBS
    Item Package Quantity: 1
    $140.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS761215
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS761215
    $140.99
    $140.99

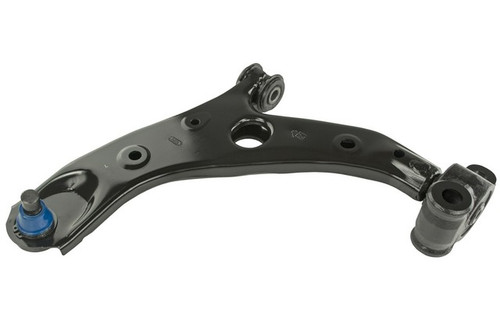

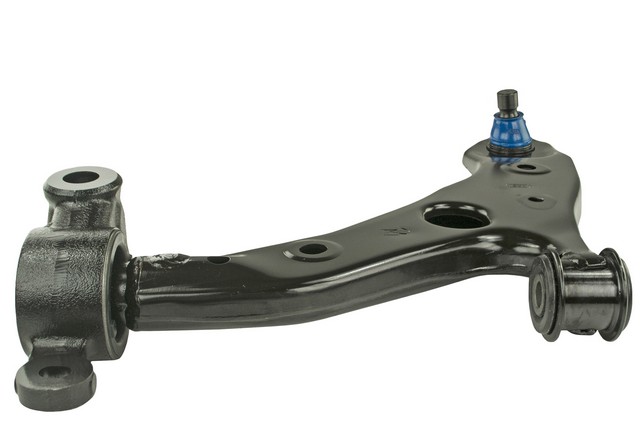

    Mevotech Supreme CMS761215 front left lower control arm with ball joint for the 2014-2018 Mazda 3 and other vehicles links the wheel to the chassis. Sold as a control arm and ball joint assembly, it includes the bushings, ball joint and dust boot.

    • Mevotech Supreme control arm line, engineered in-house with application-specific upgrades
    • Stamped steel control arm with a reinforced ball joint head for added durability
    • Sintered bearings for long-lasting performance
    • 180 degree SAE grease fitting included for servicing
    • Knurling that locks the control arm bushing to the sub-frame
    • Thicker, stronger ball joint flange to prevent deformation during installation

    Quick facts

    • Part: Mevotech Supreme CMS761215 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2014-2018 Mazda 3 and other vehicles
    • Position: Front left lower
    • Material: Steel
    • Condition: New

    A worn control arm or ball joint can show up as a clunk over bumps, loose or wandering steering or uneven tire wear. These signs alone do not prove this part is the problem, since a worn sway bar link can also clunk.

    Fits

    This 2014-2018 Mazda 3 control arm also fits the 2014-2018 Mazda 3 Sport.

    Specifications

    Fit and size

    • Position: front left lower
    • Quantity per vehicle: 1 (this side)
    • Ball joint mounting type: press in
    • Ball joint stud type: grooved
    • Control arm maximum length: 18.5 in
    • Control arm maximum width: 16.45 in

    Build and materials

    • Control arm material: steel
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Dust boot material: neoprene
    • Surface: protective surface treatment against rust
    • Condition: new
    • Country of origin: Taiwan

    In the box

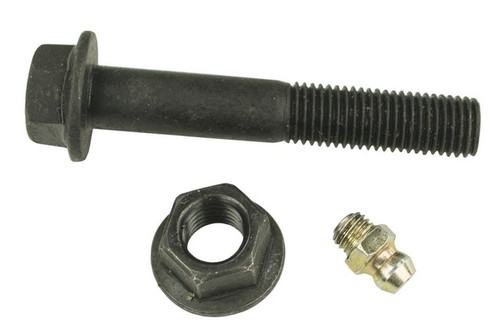

    One control arm with ball joint, bushings, dust boot, grease fitting, and an application-specific pinch bolt and locking nut. This listing is one arm for the front left, and that side takes one. The front right is ordered separately, and the two sides are normally replaced together.

    Installation notes

    • The ball joint comes pre-greased.
    • Labor Saver designs, tools and hardware make installation faster and easier.

    Interchange: 521-205
    19384864 · TC3458 · CB65203 · CB65203PR · CA12873 · RK623508 · B45A34350E · B60S34350 · B60S34350B · B60S34350D · BHN934350 · BPN734350A · 2608540 · 30031488 · X32CJ0992 · X32CJ2628

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19384864, TC3458, 521-205, CB65203, CB65203PR, CA12873, RK623508, B45A34350E, B60S34350, B60S34350B, B60S34350D, BHN934350, BPN734350A, CMS761215, 2608540, 30031488, X32CJ0992, X32CJ2628

    Frequently Asked Questions

    Is this a 2014 Mazda 3 lower control arm (2014-2018 Mazda 3), and which side is it?

    Yes. Mevotech Supreme CMS761215 fits the 2014-2018 Mazda 3 in the front left lower position; the right side is a separate part.

    Does CMS761215 work as a lower arm for the 2014-2018 Mazda 3 Sport?

    Yes. The 2014-2018 Mazda 3 Sport takes this same Mevotech Supreme CMS761215 control arm on the front left, as does the 2014-2018 Mazda 3.

    What is the Mevotech Supreme suspension control arm made of?

    The control arm is stamped steel with a reinforced ball joint head. It also has rubber bushings, a sintered metal bearing and a neoprene dust boot.

    Does this control arm come with a pinch bolt and grease fitting?

    Yes. It includes an application-specific pinch bolt and locking nut plus a 180 degree SAE grease fitting, and the ball joint is pre-greased.

    Is the ball joint on this control arm a press-in type?

    Yes. The ball joint mounting type is press in, and the ball joint stud is grooved.
