Front Left Lower Control Arm with Ball Joint for 2016-2025 Mazda MX-5 Miata - Mevotech Supreme CMS761248

$314.99

Vehicles this part fits

    Part number: CMS761248
    UPC: 677319508871
    Condition: New
    Weight: 17.71 LBS
    Item Package Quantity: 1
    $314.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS761248
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS761248
    $314.99
    $314.99

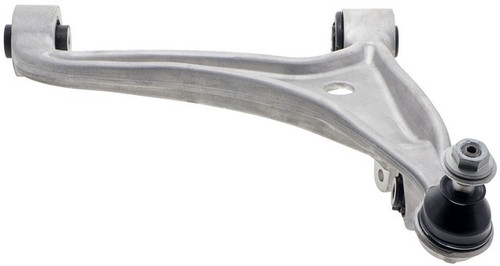

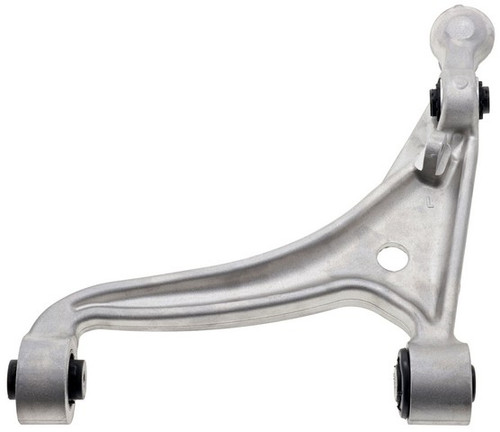

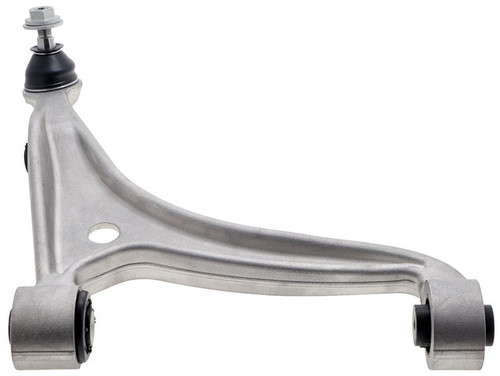

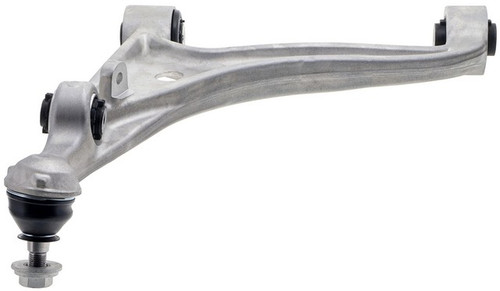

    Mevotech Supreme CMS761248 front left lower control arm with ball joint for the 2016-2025 Mazda MX-5 Miata links the wheel to the chassis. Sold as a control arm and ball joint assembly, its ball joint lets the wheel pivot.

    • Mevotech Supreme line, engineered in-house with application-specific upgrades
    • Aluminum control arm body with rubber bushings
    • Additional surface treatment on the ball joint to prevent rust build-up
    • Labor Saver™ designs and hardware to make installation faster and easier

    Quick facts

    • Part: Mevotech Supreme CMS761248 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2016-2025 Mazda MX-5 Miata
    • Position: Front left lower
    • Material: Aluminum
    • Condition: New

    A clunk over bumps, uneven front tire wear or loose steering can mean the arm, ball joint or bushings are worn, though other worn suspension parts can make similar noises. Before replacing the arm, a shop can measure ball joint play; with the engine off, you can also look behind the front left wheel for a torn dust boot or leaking grease.

    Fits

    This control arm is a direct-fit replacement for the 2016-2025 Mazda MX-5 Miata, front left side.

    Specifications

    Fit and size

    • Position: front left lower
    • Quantity for this position: 1
    • Control arm maximum length: 13.35 in
    • Control arm maximum width: 11.93 in
    • Ball joint stud type: threaded

    Build and materials

    • Control arm material: aluminum
    • Bushing material: rubber
    • Dust boot material: rubber
    • Condition: new
    • Country of origin: Turkey

    In the box

    This listing is one front left lower control arm with ball joint, rubber bushings, dust boot, mounting hardware and a locking nut. The front left takes one; the front right is a separate part ordered separately, and both sides are normally replaced together.

    Installation notes

    • Comes pre-greased.
    • A part-specific locking nut is provided to speed up ball joint installation.

    Interchange: 19531531 · 9CB76224 · N24334350C · 2609637

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    19531531, 9CB76224, N24334350C, CMS761248, 2609637

    Frequently Asked Questions

    Is this Mevotech Supreme control arm the right one for a 2016-2025 Mazda MX-5 Miata?

    Yes. Mevotech Supreme CMS761248 is the front left lower control arm with ball joint for the 2016-2025 Mazda MX-5 Miata. The right side is a separate part.

    Does this Mevotech Supreme lower control arm include a locking nut and hardware?

    Yes. The CMS761248 includes the ball joint, rubber bushings, a dust boot, mounting hardware and a part-specific locking nut for the threaded ball joint stud.

    What is this Mevotech Supreme suspension control arm made of?

    This front left lower control arm is aluminum, with rubber bushings and a rubber dust boot. The ball joint has a threaded stud and a surface treatment against rust build-up.

    How can I tell if the ball joint on this control arm is wearing out?

    A torn dust boot, grease leaking out or a clunk over bumps can mean a ball joint is worn. Play in the front suspension is a reason to have it inspected promptly, not driven on.

    Is the Mevotech Supreme CMS761248 pre-greased?

    Yes. This Mevotech Supreme CMS761248 control arm assembly is pre-greased and includes its rubber dust boot.
