Front Right Lower Control Arm with Ball Joint for 2020-2024 Subaru Outback - Mevotech Supreme CMS801244

$171.99

Vehicles this part fits

    Part number: CMS801244
    UPC: 677319495546
    Condition: New
    Weight: 11.30 LBS
    Item Package Quantity: 1
    $171.99
    Adding to cart… The item has been added

    Have questions?

    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS801244
    Mevotech Supreme Suspension Control Arm and Ball Joint Assembly P/N:CMS801244
    $171.99
    $171.99

    Mevotech Supreme CMS801244 front right lower control arm with ball joint for the 2020-2024 Subaru Outback locates the wheel and lets it move with the suspension. This control arm and ball joint assembly is built to meet or exceed OE specifications.

    • Mevotech Supreme line built for high-usage commercial and passenger vehicles, SUVs, fleets and working trucks
    • Ball joint and bushing pre-assembled to the arm to save installation time
    • Sintered metal bearing for longer-lasting performance
    • Surface treatment on the ball joint that prevents rust build-up
    • Double-bonded rubber bushings for increased stiffness and durability
    • Forged aluminum construction

    Quick facts

    • Part: Mevotech Supreme CMS801244 control arm with ball joint
    • Also called: control arm and ball joint assembly
    • Fits: 2020-2024 Subaru Outback
    • Position: Front right lower
    • Material: Aluminum
    • Condition: New

    A clunk over bumps, loose-feeling steering or uneven front tire wear can mean this arm, its ball joint or its bushings are worn, though a worn sway bar link or strut mount can be behind the same signs, so find the cause first.

    Fits

    This is the front right lower control arm for the 2020-2024 Subaru Outback, and the car takes one on that side. This listing is one arm; the front left is a separate part, and the two on that front axle are normally done at the same time.

    Specifications

    Fit and size

    • Position: front right lower
    • Quantity per vehicle: 1
    • Maximum width: 14.25 in
    • Maximum length: 14.37 in
    • Ball joint mounting type: press in
    • Ball joint stud type: grooved

    Build and materials

    • Control arm material: aluminum
    • Bushing material: rubber
    • Bearing material: sintered metal
    • Dust boot material: neoprene
    • Ball joint: pre-greased
    • Condition: new
    • Country of origin: China

    In the box

    One control arm with ball joint, bushings, dust boot, castle nut, cotter pin and mounting hardware.

    Installation notes

    • The ball joint comes pre-greased.

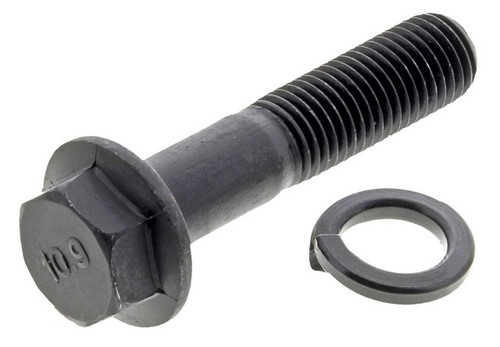

    • Labor Saver hardware is included to simplify installation.

    Interchange: 5CB80359 · GS801244 · 2609024 · 20202AN02A

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    5CB80359, GS801244, CMS801244, 2609024, 20202AN02A

    Frequently Asked Questions

    Will this 2020-2024 Subaru Outback control arm fit the front right lower position?

    Yes. Mevotech Supreme CMS801244 is the front right lower arm for the 2020-2024 Subaru Outback, and the car takes one on that side. The front left needs its own arm.

    Are the control arm bushings for the 2020-2024 Subaru Outback included?

    Yes. Mevotech Supreme CMS801244 comes with rubber bushings, plus the ball joint, dust boot, castle nut, cotter pin and mounting hardware.

    Is this Mevotech Supreme lower control arm aluminum or steel?

    This lower control arm is aluminum. The bushings are rubber, the bearing is sintered metal and the dust boot is neoprene.

    Can a worn ball joint on a control arm cause a clunk over bumps?

    Yes, it can. A worn ball joint or bushing can clunk over bumps or make the steering feel loose, and a shop can inspect the suspension.

    Is Mevotech Supreme CMS801244 the same as 20202AN02A?

    Yes. 20202AN02A is one of the numbers Mevotech Supreme CMS801244 replaces, along with 5CB80359, GS801244 and 2609024.
