Remanufactured Alternator for 2004-2006 BMW X5 - TERREPOWER 11098

$449.99
WARNING:California Proposition 65▾

Vehicles this part fits

    Part number: 11098
    UPC: 784450167314
    Condition: Refurbished
    Weight: 14.00 LBS
    Item Package Quantity: 1
    $449.99

    Out of stock

    Have questions?

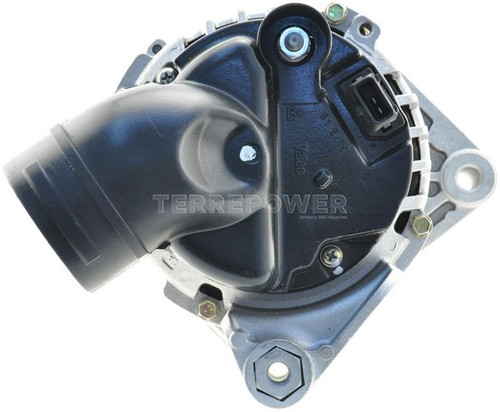

    TERREPOWER formerly BBB Industries Alternator P/N:11098
    TERREPOWER formerly BBB Industries Alternator P/N:11098
    $449.99
    $449.99

    TERREPOWER 11098 alternator for the 2004-2006 BMW X5 6-cylinder 3.0L charges the battery and supplies power to the electrical system while the engine runs. This remanufactured alternator replacement is designed for dependability and reliability throughout the vehicle's service life.

    • Remanufactured unit rated at 140 amperes on a 12-volt DC system

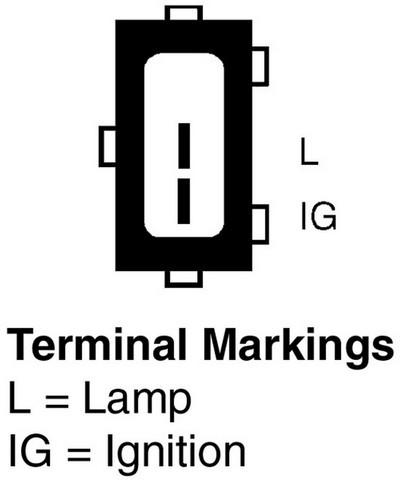

    • Internal regulator with negative ground
    • Air-cooled design with an internal fan

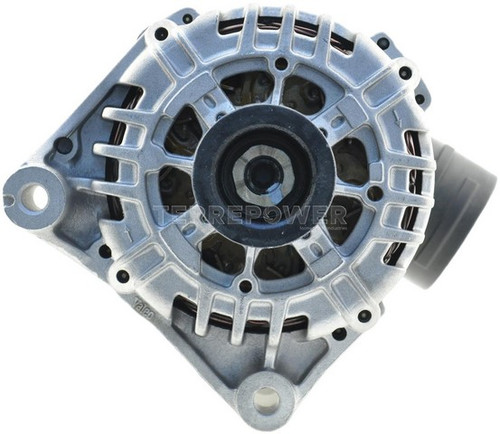

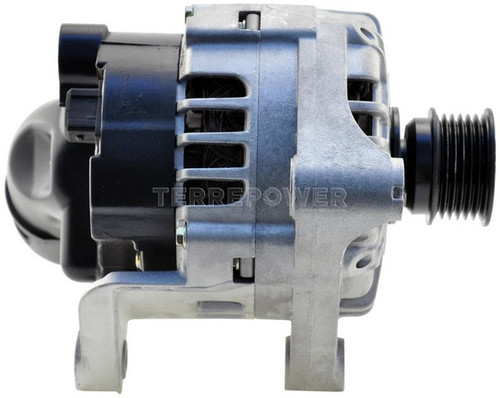

    • Conventional pulley with 6 grooves for a serpentine belt, 50 mm (2 in) outside diameter
    • Clockwise (right) rotation

    Quick facts

    • Part: TERREPOWER 11098 alternator
    • Fits: 2004-2006 BMW X5 6-cylinder 3.0L
    • Condition: Remanufactured

    A failing alternator can show up as a battery warning light, dimming headlights or a battery that keeps going flat. A tired battery, a slipping serpentine belt or corroded battery cable ends can be behind those symptoms too, so track down the actual cause before buying an alternator. A shop can load-test the charging system.

    Fits

    This 2004-2006 BMW X5 6-cylinder 3.0L alternator is a direct-fit replacement sold individually, and the vehicle takes one.

    Specifications

    Fit and size

    • Quantity per vehicle: 1
    • Voltage: 12 V DC
    • Amperage rating: 140 A
    • Rotation direction: clockwise (right)
    • Outside pulley diameter: 50 mm (2 in)
    • Pulley groove quantity: 6
    • Pulley belt type: serpentine

    Build and materials

    • Condition: Remanufactured
    • Regulator type: internal
    • Cooling method: air
    • Pulley type: conventional
    • Country of origin: Mexico

    In the box

    One remanufactured alternator with its pulley.

    Interchange: 12-31-7-530-086 · 12-31-7-532-627 · 12-31-7-551-252 · 12-31-7-551-253
    SG14B019 · SG14B020

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    12-31-7-530-086, 12-31-7-532-627, 12-31-7-551-252, 12-31-7-551-253, SG14B019, SG14B020

    Frequently Asked Questions

    Does the TERREPOWER 11098 work as an alternator replacement for the 2004-2006 BMW X5 6-cylinder 3.0L?

    Yes. TERREPOWER 11098 is listed for the 2004-2006 BMW X5 6-cylinder 3.0L, and that vehicle takes one alternator.

    What is the amp rating of the TERREPOWER 11098 alternator?

    The TERREPOWER 11098 is rated at 140 amperes on a 12-volt DC system. It has an internal regulator and a negative ground.

    Does this alternator come with a pulley, and how many grooves does it have?

    Yes, the pulley is included. It is a conventional pulley with 6 grooves for a serpentine belt, 50 mm (2 in) in outside diameter.

    Can a battery warning light mean the alternator is failing?

    It can. A battery warning light, dimming headlights or a repeatedly dead battery can be signs of a charging problem, and a shop can test the charging system.

    Does the TERREPOWER 11098 replace alternator number 12-31-7-551-252?

    Yes. 12-31-7-551-252 is one of the numbers cross-referenced to TERREPOWER 11098, a remanufactured alternator.
