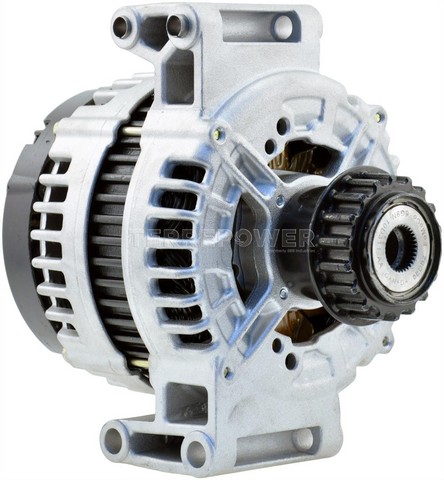

TERREPOWER 11346 alternator for the 2011-2016 Volvo S60 6-cylinder 3.0L, the 2012 S60 5-cylinder 2.5L and other vehicles charges the battery and powers the electrical system while the engine runs. This remanufactured alternator is designed for dependable, reliable service through the vehicle's service life.
- Rated at 180 amps on a 12-volt DC system
- Decoupler pulley, 68 mm outside diameter, with 18 cogs for a cogged belt
- Internal regulator, with an internal fan and air cooling
- Counterclockwise (left) rotation
- Negative ground
Quick facts
- Part: TERREPOWER 11346 alternator
- Fits: the 2011-2016 Volvo S60 6-cylinder 3.0L, the 2012 S60 5-cylinder 2.5L and other vehicles
- Condition: Remanufactured
A battery warning light, dim headlights or a whine from the front of the engine can mean the alternator is worn, though a slipping drive belt or a weak battery can sit behind the same signs, so find the cause before buying. Each engine takes one alternator.
Fits
This alternator is listed for a wide range of Volvo models, including the 2010-2015 Volvo XC60 6-cylinder 3.2L, the 2010-2016 XC60 6-cylinder 3.0L and the 2015-2016 Volvo V60 6-cylinder 3.0L. If your Volvo is not named here, look up its year, model and engine in the Vehicles it fits section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Amperage rating: 180 A
- Outside pulley diameter: 68 mm (2-11/16 in)
- Pulley cogs: 18
- Rotation direction: counterclockwise (left)
Build and materials
- Condition: Remanufactured
- Regulator: internal
- Pulley: decoupler, included
- Pulley belt type: cogged belt
- Cooling: air, internal fan
- Brushless: no
- Country of origin: Mexico
In the box
One alternator with its pulley.
Interchange: 0-121-715-009 · 0-125-811-051 · 0-125-811-052 · 6G9N-10300-MA · 6G9N-10300-XC · 36000209-0 · 36012382-0
30644805 · 31110085 · 36000209 · 36012382
This part cross-references / interchanges with the following part numbers:
0-121-715-009, 0-125-811-051, 0-125-811-052, 6G9N-10300-MA, 6G9N-10300-XC, 30644805, 31110085, 36000209, 36000209-0, 36012382, 36012382-0
Frequently Asked Questions
Is this the right Volvo XC60 alternator for a 2010-2015 model with the 6-cylinder 3.2L?
Yes. TERREPOWER 11346 is listed for the 2010-2015 Volvo XC60 6-cylinder 3.2L, and also for the 2010-2016 XC60 6-cylinder 3.0L. Each engine takes one.
Is this the Volvo V60 alternator replacement for the 2015-2016 model with the 6-cylinder 3.0L?
Yes. The 2015-2016 Volvo V60 6-cylinder 3.0L is on the fitment for this alternator, which is sold as a single unit.
Does this alternator come with the pulley, and what kind is it?
Yes, the pulley is included. It is a decoupler pulley, 68 mm (2-11/16 in) across, with 18 cogs for a cogged belt.
Does this alternator have an internal regulator?
Yes, the regulator is internal. This alternator is not one-wire capable, has no AC service tap and is not brushless.
Is 36000209-0 a number that TERREPOWER 11346 replaces?
Yes. 36000209-0 is one of the interchange numbers for TERREPOWER 11346. Others include 0-121-715-009, 6G9N-10300-MA and 30644805.
