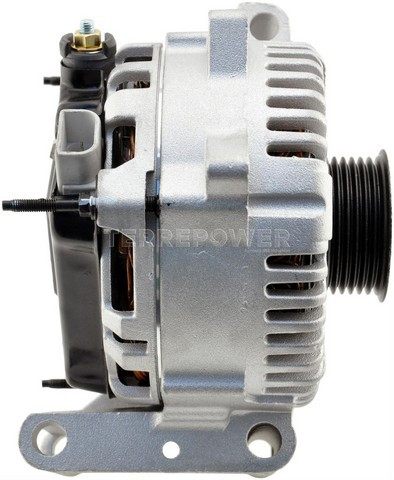

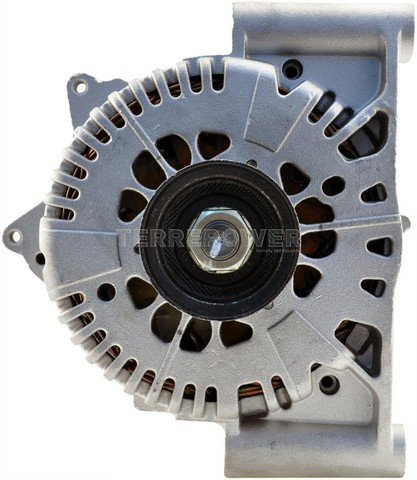

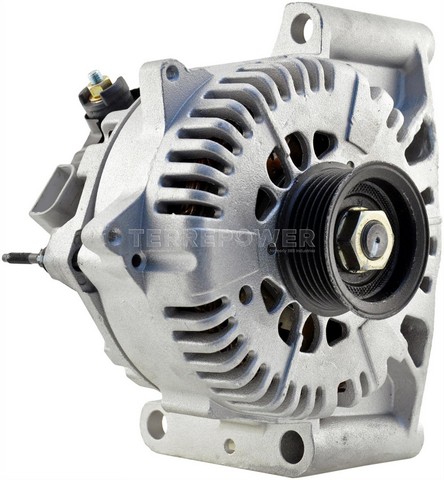

TERREPOWER 8403 alternator for the 2005-2007 Ford Escape V6 3.0L and other vehicles charges the battery and powers the electrical system. This remanufactured unit is designed for dependable service throughout the life of the vehicle.
- Rated at 130 amperes on a 12 volt DC system
- Internal voltage regulator
- Internal fan with air cooling
- Conventional 6-groove serpentine pulley included, 59 mm outside diameter
Quick facts
- Part: TERREPOWER 8403 alternator
- Fits: 2005-2007 Ford Escape V6 3.0L and other vehicles
- Condition: Remanufactured
Dim headlights, a battery warning light or a battery that keeps going flat can mean the alternator is worn, though a slipping serpentine belt or a weak battery can be behind them too. Each engine takes one alternator, and this listing is one.
Fits
It fits the 2005-2007 Ford Escape V6 3.0L and the 2005-2006 Mazda Tribute V6 3.0L, and it is a Mercury Mariner alternator for the 2005-2007 V6 3.0L.
Specifications
Fit and size
- Quantity per vehicle: 1
- Outside pulley diameter: 59 mm (2-5/16 in)
- Pulley grooves: 6
- Rotation direction: clockwise (right)
- Voltage: 12 V DC
- Amperage rating: 130 A
Build and materials
- Condition: Remanufactured
- Regulator: internal
- Pulley: conventional, serpentine belt, included
- Cooling method: air, internal fan
- Ground type: negative
- Family: 4G
- Country of origin: Mexico
In the box
One remanufactured alternator with its pulley.
Interchange: 5L8T-10300-KC · 5L8T-10300-KD · 5L8Z-10346-KA · 6L8T-10300-AB · 6L8T-10300-KA · 6L8Z-10346-AB · 6L8Z-10346-KA · AJC8-18-300B · ZZC2-18-300
This part cross-references / interchanges with the following part numbers:
5L8T-10300-KC, 5L8T-10300-KD, 5L8Z-10346-KA, 6L8T-10300-AB, 6L8T-10300-KA, 6L8Z-10346-AB, 6L8Z-10346-KA, AJC8-18-300B, ZZC2-18-300, JG, JR
Frequently Asked Questions
Will this alternator fit a 2005-2007 Ford Escape V6 3.0L?
Yes. The TERREPOWER 8403 fits the 2005-2007 Ford Escape V6 3.0L, with one alternator per vehicle.
Is the 2005-2006 Mazda Tribute V6 3.0L covered by this alternator?
Yes. This remanufactured alternator fits the 2005-2006 Mazda Tribute V6 3.0L.
How many belt grooves does the TERREPOWER 8403 pulley have?
Six. The pulley is a conventional serpentine-belt type, 59 mm (2-5/16 in) in outside diameter, and it comes with the alternator.
How many amps is this remanufactured alternator rated for?
It is rated at 130 amperes on a 12 volt DC system, and the voltage regulator is internal.
Does the TERREPOWER 8403 replace number 6L8T-10300-KA?
Yes. 6L8T-10300-KA is on the interchange list for the TERREPOWER 8403, along with the other numbers printed at the bottom of the page.
