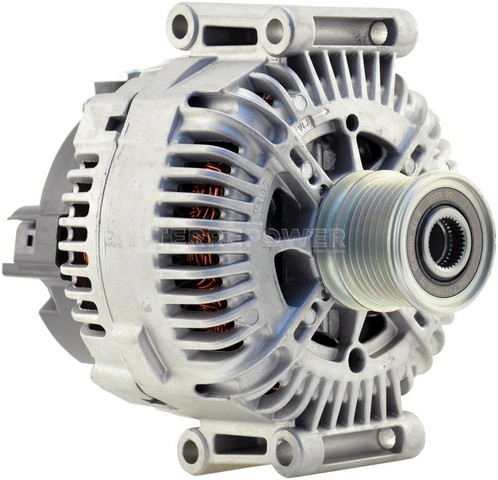

TERREPOWER N11306 alternator for the 2007-2009 Jeep Grand Cherokee V6 3.0L and other vehicles charges the battery and supplies power to the electrical system while the engine runs. It is a new alternator built for dependable operation over the vehicle's service life.
- 12-volt output rated at 180 amps
- Clutch pulley with 7 grooves for a serpentine belt
- Internal voltage regulator
- Air-cooled with an internal fan
- Clockwise (right) rotation direction
Quick facts
- Part: TERREPOWER N11306 alternator
- Fits: 2007-2009 Jeep Grand Cherokee V6 3.0L and other vehicles
- Condition: New
Dimming headlights, a battery warning light or a battery that keeps going flat can mean the alternator is worn, though a slipping belt or a tired battery can produce those symptoms too, so rule them out first.
Fits
TERREPOWER N11306 is listed for a wide range of Jeep, Freightliner, Dodge and Mercedes-Benz models, including the 2007-2009 Jeep Grand Cherokee V6 3.0L, the 2010-2018 Freightliner Sprinter 2500 V6 3.0L and the 2010-2018 Freightliner Sprinter 3500 V6 3.0L. One alternator goes on each engine.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Amperage rating: 180 A
- Rotation direction: clockwise (right)
- Outside pulley diameter: 50 mm (2 in)
- Pulley grooves: 7

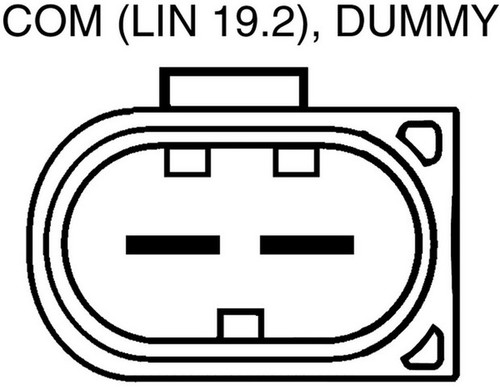

- Plug clock position (rear view, main mounting ear at 6 o'clock): 3
Build and materials
- Condition: New
- Regulator type: internal
- Cooling: air, with an internal fan
- Pulley: clutch type, serpentine belt, included
- One wire capable: No
- Country of origin: China
In the box
One alternator, pulley included.
Interchange: 000-906-27-00 · 642-154-02-02 · 642-154-04-02 · A642-154-02-02 · A642-154-04-02
04801250AA · 04801250AB · 04801250AC · 04801250AD · 4801250AA · 4801250AB · 4801250AC · 4801250AD · 5175765AA · 5175765AB · FG18S056 · TG17C028 · TG17C030 · TG17C030B
This part cross-references / interchanges with the following part numbers:
04801250AA, 04801250AB, 04801250AC, 04801250AD, 4801250AA, 4801250AB, 4801250AC, 4801250AD, 5175765AA, 5175765AB, 000-906-27-00, 642-154-02-02, 642-154-04-02, A642-154-02-02, A642-154-04-02, FG18S056, TG17C028, TG17C030, TG17C030B
Frequently Asked Questions
Is this the Jeep Grand Cherokee alternator for 2007-2009 models with the V6 3.0L?
Yes. TERREPOWER N11306 is listed for the 2007-2009 Jeep Grand Cherokee V6 3.0L. For another vehicle, look it up in the "Vehicles it fits" section on this page and match the year and engine.
Does the TERREPOWER N11306 alternator come with a pulley?
Yes. The pulley is included: a 7-groove clutch pulley for a serpentine belt, 50 mm (2 in) in outside diameter.
How many amps does the N11306 alternator put out?
TERREPOWER N11306 is rated at 180 amps on a 12-volt DC system, and its voltage regulator is internal.
Can a dim headlight or battery light point to a failing clutch-pulley alternator?
They can be signs of a worn alternator. A whining or rough-sounding pulley can be another. A shop can test the charging system to find out for sure.
Can I use N11306 in place of alternator number 04801250AA?
Yes. 04801250AA is one of the numbers on this part's Interchange line, along with 5175765AA and A642-154-02-02.
