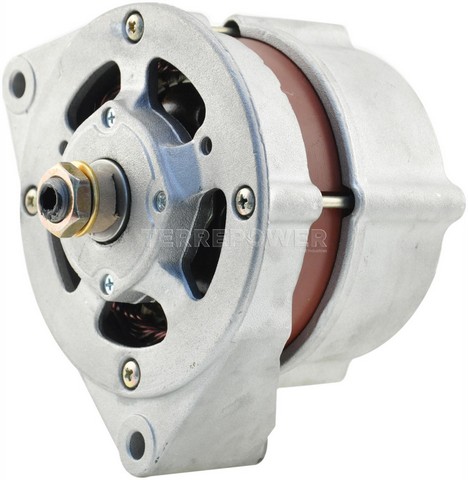

TERREPOWER N14820 alternator for the 1991-1993 Mercedes-Benz 190E 4-cylinder 2.3L and other vehicles turns belt-driven engine rotation into electrical power. It recharges the battery and runs the car's electrical loads.
- Rated at 70 amperes on a 12-volt DC system
- Internal voltage regulator
- Clockwise (right) rotation direction
- Air-cooled alternator body
- Negative ground
Quick facts
- Part: TERREPOWER N14820 alternator
- Fits: the 1991-1993 Mercedes-Benz 190E 4-cylinder 2.3L and other vehicles
- Condition: New
A flat battery, dim headlights or a battery warning light can mean the alternator is not charging. Before you replace it, rule out a slipping drive belt, a corroded battery terminal and a battery that no longer holds a charge, since each can look like a failed alternator.
Fits
The 1991-1993 Mercedes-Benz 190E 4-cylinder 2.3L, the 1990-1993 Mercedes-Benz 300D 5-cylinder 2.5L and the 1986-1989 Mercedes-Benz 190D 5-cylinder 2.5L are among the cars this alternator fits, with more beyond them. A 1991-1993 Mercedes-Benz 190E 4-cylinder 2.3L takes one. If your Mercedes-Benz is a different model, look up its year and engine in the "Vehicles it fits" section.
Specifications
Fit and size
- Quantity per vehicle: 1
- Voltage: 12 V DC
- Amperage rating: 70 A
- Rotation direction: clockwise (right)

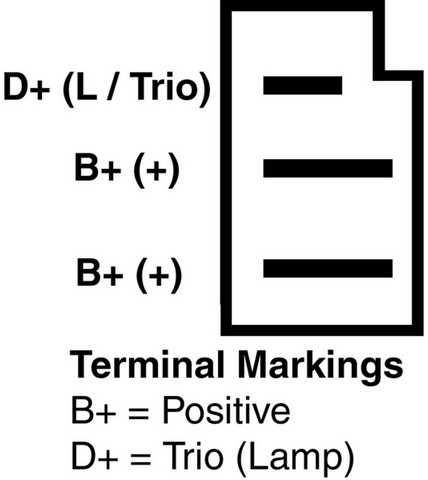

- Plug clock position (rear view, main mounting ear at 6 o'clock): 9
Build and materials
- Regulator type: internal
- Cooling method: air
- Ground type: negative
- Condition: new
- Country of origin: China
In the box
One alternator. The pulley and external fan are not included.
Interchange: 0-120-488-126 · 0-120-489-325 · 0-120-489-326 · 0-120-489-327 · 0-120-489-328 · 0-120-489-329 · 0-120-489-330 · 007-154-53-02 · 007-154-54-02 · 007-154-55-02 · 007-154-56-02 · 007-154-57-02 · 007-154-58-02 · 008-154-20-02
This part cross-references / interchanges with the following part numbers:
0-120-488-126, 0-120-489-325, 0-120-489-326, 0-120-489-327, 0-120-489-328, 0-120-489-329, 0-120-489-330, 007-154-53-02, 007-154-54-02, 007-154-55-02, 007-154-56-02, 007-154-57-02, 007-154-58-02, 008-154-20-02
Frequently Asked Questions
Is this 190E alternator right for a 1991-1993 Mercedes-Benz 190E 4-cylinder 2.3L?
Yes. TERREPOWER N14820 fits the 1991-1993 Mercedes-Benz 190E 4-cylinder 2.3L. If your car is a different model, check its year and engine in the "Vehicles it fits" section.
Does this alternator come with a pulley?
No. TERREPOWER N14820 is sold as the alternator alone; the pulley and external fan are not included.
What amperage and rotation does the TERREPOWER N14820 have?
It is rated at 70 amperes on a 12-volt DC system, turns clockwise (right) and has an internal voltage regulator.
Dim headlights and a battery light: does that mean the alternator is bad?
No, not on their own. Dim headlights, a lit battery warning light or a battery that keeps going flat can all be signs of a charging problem, which a shop can test with the engine running.
Does the TERREPOWER N14820 replace alternator number 0-120-489-325?
Yes. 0-120-489-325 is one of the numbers TERREPOWER N14820 replaces, along with 0-120-488-126 and 007-154-53-02.
