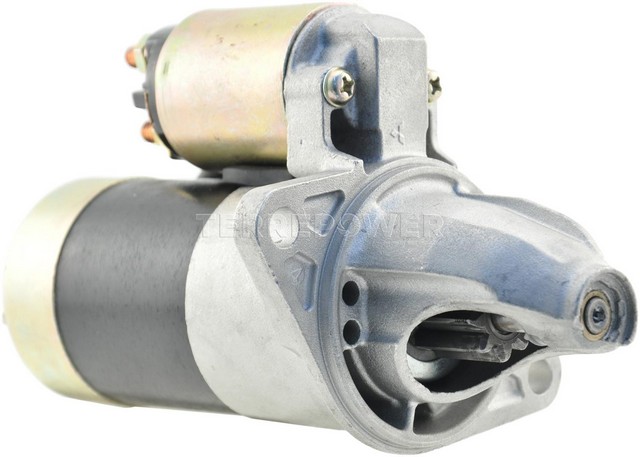

TERREPOWER 17723 starter for the 1998-2002 Subaru Forester H4 2.5L and other vehicles turns the engine over so it can start. It is a remanufactured starter with the solenoid attached.
- Permanent magnet gear reduction design
- 12-volt DC motor with a 1.4 kW power rating
- 9-tooth drive with counterclockwise (left) rotation
- Starter drive included
- Closed nose cone
Quick facts
- Part: TERREPOWER 17723 starter
- Fits: 1998-2002 Subaru Forester H4 2.5L and other vehicles
- Condition: Remanufactured
A starter that is wearing out can show up as slow cranking, a click with no crank, or a grinding noise when you start the engine. Those signs can come from the battery or cables too, so with the engine off, look over the battery terminals and cable ends for corrosion or looseness before you replace the starter.
Fits
This starter is also a direct-fit replacement for the 1997-2001 Subaru Impreza H4 2.2L and the 1998-2003 Impreza H4 2.5L. Sold as a Subaru Forester car starter for the 1998-2002 model with the H4 2.5L, this listing is one starter, and that engine takes just one.
Specifications
Fit and size
- Quantity per vehicle: 1
- Power rating: 1.4 kW
- Voltage: 12 V DC
- Tooth quantity: 9
- Rotation direction: counterclockwise (left)
- Nose cone type: closed nose
Build and materials
- Design: permanent magnet gear reduction
- Condition: remanufactured
- Starter drive: included
- Solenoid: attached
- OE manufacturer: Mitsubishi
- Country of origin: Mexico
In the box
One remanufactured starter with the starter drive and attached solenoid. Mounting bolts and mounting shims are not included, so plan on new bolts rather than reusing the old ones.
Interchange: 23300-AA390
M1T84481 · M1T86481
Product information is for general reference and may contain errors. See our Disclaimer.
This part cross-references / interchanges with the following part numbers:
M1T84481, M1T86481, 23300-AA390
Frequently Asked Questions
Is this the right Subaru Forester starter for the 1998-2002 model with the H4 2.5L engine?
Yes. TERREPOWER 17723 fits the 1998-2002 Subaru Forester H4 2.5L, and that engine takes one starter.
Is this a Subaru Impreza starter for the 1997-2001 H4 2.2L and the 1998-2003 H4 2.5L?
Yes. TERREPOWER 17723 fits the 1997-2001 Subaru Impreza H4 2.2L and the 1998-2003 Impreza H4 2.5L.
Do the mounting bolts come with this remanufactured starter?
No. Mounting bolts and shims are not included; the starter drive and attached solenoid are. Plan on new bolts.
Which way does this starter rotate, and how many teeth does the drive have?
This starter turns counterclockwise (left) and has 9 teeth on the drive. It is a 12-volt, 1.4 kW permanent magnet gear reduction unit.
Does TERREPOWER 17723 cross-reference to interchange number 23300-AA390?
Yes. 23300-AA390 is one of the interchange numbers this starter replaces, along with M1T84481 and M1T86481.
