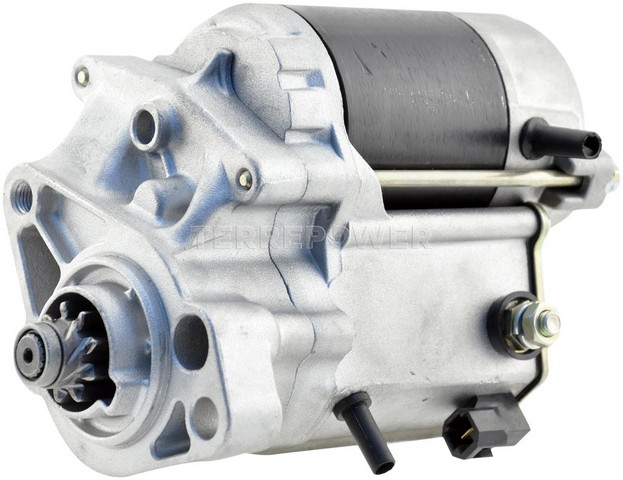

TERREPOWER N17420 starter for the 1988-1993 Toyota 4Runner V6 3.0L and other vehicles spins the engine through its starter drive to get it running. This new starter is designed for dependability and reliability throughout the vehicle's service life.
- Offset gear reduction design
- Solenoid attached to the starter motor
- Starter drive included
- 1.0 kW power rating at 12 V DC
- Open nose cone, 12 teeth and clockwise (right) rotation
Quick facts
- Part: TERREPOWER N17420 starter
- Fits: 1988-1993 Toyota 4Runner V6 3.0L and other vehicles
- Condition: New
A slow crank, a click with no start or a grinding noise when you turn the key can be signs of a worn starter. Before you replace the starter, rule out a weak battery, loose or corroded cable ends and a faulty ignition switch, since those can make an engine crank slowly too.
Fits
It fits the 1988-1993 Toyota 4Runner V6 3.0L, the 1988-1993 Toyota Pickup V6 3.0L and the 1993 Toyota T100 V6 3.0L. Each engine takes one starter.
Specifications
Fit and size
- Quantity per vehicle: 1
- Power rating: 1.0 kW
- Voltage: 12 V DC
- Tooth quantity: 12
- Rotation direction: clockwise (right)
- Nose cone type: open nose
Build and materials
- Design: offset gear reduction
- Solenoid: attached
- Starter drive: included
- Over-crank protection: no
- Condition: new
- Country of origin: China
In the box
One starter with its starter drive and attached solenoid. Mounting bolts and mounting shims are not included, so plan on new bolts.
Interchange: 128000-5360 · 128000-5361 · 128000-5560 · 128000-5561 · 128000-5570 · 128000-5571 · 128000-5580 · 128000-5581 · 128000-5770 · 128000-6560 · 128000-6561 · 128000-9790 · 228000-1150 · 28100-0W020 · 28100-0W030 · 28100-65010 · 28100-65020 · 28100-65030
This part cross-references / interchanges with the following part numbers:
128000-5360, 128000-5361, 128000-5560, 128000-5561, 128000-5570, 128000-5571, 128000-5580, 128000-5581, 128000-5770, 128000-6560, 128000-6561, 128000-9790, 228000-1150, 28100-0W020, 28100-0W030, 28100-65010, 28100-65020, 28100-65030
Frequently Asked Questions
Is this the right starter for the 1993 Toyota T100 V6 3.0L?
Yes. TERREPOWER N17420 fits the 1993 Toyota T100 V6 3.0L, and the engine takes one starter.
Will the N17420 work as a starter for the 1988-1993 Toyota Pickup V6 3.0L?
Yes. TERREPOWER N17420 fits the 1988-1993 Toyota Pickup V6 3.0L with one starter per engine.
Does the N17420 starter come with mounting bolts?
No. Mounting bolts and mounting shims are not included, so plan on new bolts. The starter drive and the attached solenoid are included.
What rotation direction and tooth count does this starter have?
This starter turns clockwise (right) and has 12 teeth. It is a 12 V DC, 1.0 kW offset gear reduction design.
Is 28100-65010 an interchange number for this starter?
Yes. 28100-65010 is among the numbers TERREPOWER N17420 replaces.
