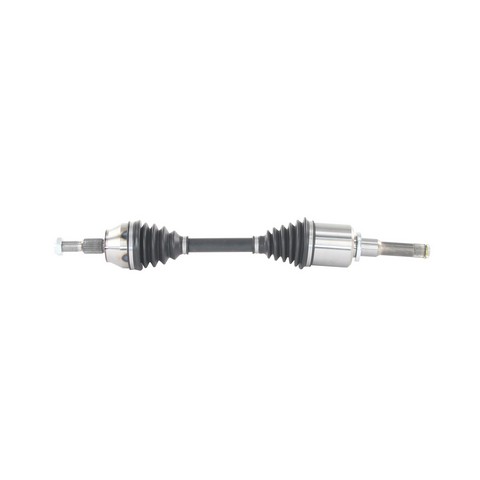

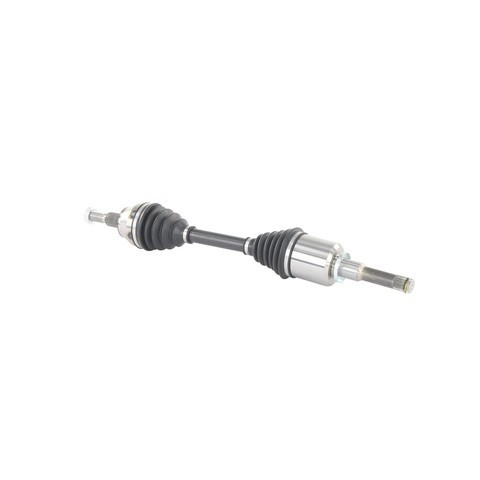

TrakMotive FD-8323 front left CV axle shaft for the 2014-2018 Ford Transit Connect passes drive torque to the wheel while the suspension moves. This TrakMotive CV axle links the drive unit to the wheel hub through a splined joint at each end.
- Neoprene boots on both the inboard and outboard joints
- Male inboard joint with 35 splines
- Conventional outboard joint with 27 splines
Quick facts
- Part: TrakMotive FD-8323 CV axle shaft
- Fits: 2014-2018 Ford Transit Connect
- Position: Front left
- Condition: New
Clicking or popping on turns, vibration when accelerating, or grease thrown from a torn boot can mean a CV axle shaft is wearing out. Before you replace it, rule out a worn wheel bearing, a damaged tire or wheel and worn suspension parts, which can make similar noises and shakes.
Fits
This front left CV axle shaft is a direct-fit replacement for the 2014-2018 Ford Transit Connect. This listing is one shaft for the front left; the front right is a separate part, and the two shafts on that axle are normally done at the same time.
Specifications
Fit and size
- Position: Front left
- Quantity: 1 (front left)
- Overall compressed length: 682 mm (26.83 in)
- Axle nut thread size: M22x1.5
- Axle nut hex size: 32 mm (1.26 in)
Build and materials
- Axle nut locking type: Self-lock
- ABS tone ring: not included
- Condition: New
- Warranty: TrakMotive limited lifetime warranty
- Country of origin: China
In the box
One CV axle shaft and one self-locking hex axle nut.
Interchange: 66-2351
NCV11216 · FD10565ER
This part cross-references / interchanges with the following part numbers:
66-2351, NCV11216, FD10565ER, FD-8323
Frequently Asked Questions
Is the TrakMotive FD-8323 front left CV axle shaft right for the 2014-2018 Ford Transit Connect?
Yes, TrakMotive FD-8323 is the front left CV axle shaft for the 2014-2018 Ford Transit Connect; the front right side is a separate part.
Does this TrakMotive CV axle shaft come with the axle nut?
Yes, the shaft comes with its self-locking hex axle nut (M22x1.5 thread, 32 mm hex), but the ABS tone ring is not included.
How many splines does the TrakMotive FD-8323 CV axle shaft have?
The male inboard joint has 35 splines and the conventional outboard joint has 27 splines. TrakMotive FD-8323 measures 682 mm (26.83 in) overall when compressed.
Does a clicking noise on turns mean this front left CV axle shaft is worn?
It can: clicking or popping on turns, vibration under acceleration or grease around a torn neoprene boot can be signs of a worn joint, so have it checked promptly rather than keep driving on it.
Does NCV11216 interchange with the TrakMotive FD-8323?
Yes. NCV11216 is listed as an interchange number for TrakMotive FD-8323, the front left CV axle shaft.
