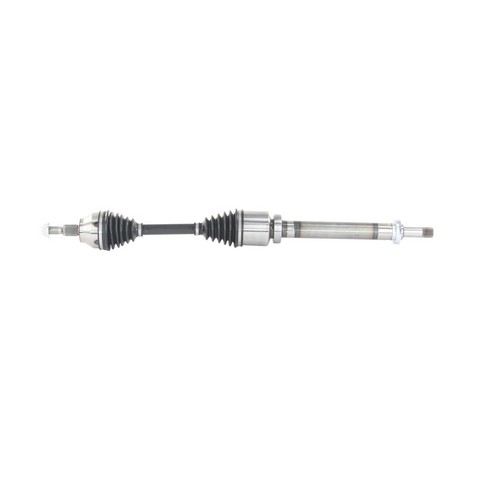

Front Right CV Axle Shaft for 2013-2018 Ford Escape - TrakMotive FD-8340

$201.99

TrakMotive CV Axle Shaft FD-8340

TrakMotive CV Axle Shaft FD-8340 - view 2

TrakMotive CV Axle Shaft FD-8340 - view 3

TrakMotive CV Axle Shaft FD-8340 - view 4

TrakMotive CV Axle Shaft FD-8340

TrakMotive CV Axle Shaft FD-8340 - view 2

TrakMotive CV Axle Shaft FD-8340 - view 3

TrakMotive CV Axle Shaft FD-8340 - view 4

Part number: FD-8340

UPC: 844084045195

Condition: New

Weight: 22.70 LBS

Item Package Code: EA

Part Has Core (Y/N): N

Item Package Quantity: 1

$201.99

Current Stock: 114

Quantity:

Adding to cart… The item has been added

Have questions?

TrakMotive CV Axle Shaft P/N:FD-8340

TrakMotive CV Axle Shaft P/N:FD-8340

$201.99

$201.99

Description

TrakMotive FD-8340 front right CV axle shaft for the 2013-2018 Ford Escape carries drive torque to the wheel and flexes with suspension travel.

Neoprene boots on both the inboard and outboard joints
Male inboard joint with 35 splines
Conventional outboard joint with 27 splines
Self-locking axle nut included, M22x1.5 thread with a 32 mm hex
Overall compressed length of 955 mm (37.6 in)

Quick facts

Part: TrakMotive FD-8340 CV axle shaft
Fits: 2013-2018 Ford Escape
Position: Front right

A torn boot, clicking in tight turns or vibration under acceleration can mean a worn axle. A worn wheel bearing or a bad motor mount can be behind similar signs too, so find the cause before buying. Front axles are normally replaced as a pair; this listing is one TrakMotive CV axle for the front right, and the front left is a separate part.

Fits

This axle shaft fits the 2013-2018 Ford Escape, which takes one on the front right.

Specifications

Fit and size

Position: Front right
Quantity for the front right: 1
Overall compressed length: 955 mm (37.6 in)
Splines: 35 inboard, 27 outboard
Axle nut thread: M22x1.5
Axle nut hex size: 32 mm

Build and materials

Inboard joint: male, splined connection
Outboard joint: conventional, splined connection
Joint boots: neoprene, inboard and outboard
Axle nut: self-locking hex nut, included
ABS tone ring: not included
Warranty: TrakMotive limited lifetime warranty
Country of origin: China

In the box

One CV axle shaft with its axle nut.

Manufacturer's description

Product specs

Vehicles it fits

Interchange numbers

Interchange numbers

This part cross-references / interchanges with the following part numbers:

FD-8340

Buyer's Q&A

Frequently Asked Questions

Is the TrakMotive FD-8340 the right CV axle for a 2013-2018 Ford Escape?

Yes. TrakMotive FD-8340 is the front right CV axle shaft for the 2013-2018 Ford Escape, which takes one on the front right.

Does this TrakMotive CV axle shaft come with the axle nut?

Yes. The self-locking axle nut, with an M22x1.5 thread and a 32 mm hex, is included. The ABS tone ring is not included.

How many splines does the FD-8340 have on each end?

TrakMotive FD-8340 has 35 splines on the male inboard joint and 27 splines on the conventional outboard joint.

Why would a CV axle shaft click when turning?

A click in tight turns can come from a worn joint, and a torn boot that lets grease out is another sign. A shop can inspect the joints and boots.

How long is the FD-8340 axle shaft?

The overall compressed length is 955 mm (37.6 in), and both joints have neoprene boots.
