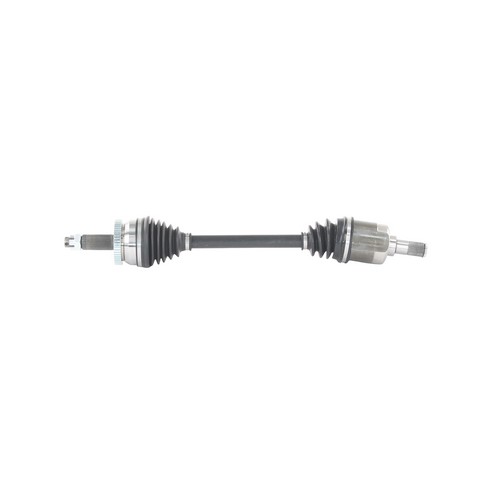

TrakMotive HY-8113 front left CV axle shaft for the 2007-2009 Hyundai Santa Fe sends engine torque out to the wheel. This TrakMotive CV axle flexes with the suspension and steering through its inboard and outboard joints.
A clicking noise on turns, vibration under acceleration or grease flung from a torn boot can mean a worn axle joint. With the engine off, a torn boot or grease spray is something you can see for yourself. Because other worn parts can make similar noises, find the cause before you replace the axle.
This axle fits the 2007-2009 Hyundai Santa Fe. Its ABS design also suits non-ABS applications unless otherwise noted.
Fit and size
Build and materials
One CV axle shaft with its axle nut. This listing holds one axle; the front left of the 2007-2009 Hyundai Santa Fe takes one, and the front right is a separate part ordered on its own.
Interchange: 66-3538 · 80-9329 · HY-8-8594A
199113 · NCV37509 · 88561 · 93530 · 40723050 · 495002B160 · 5002B160 · HY10547
This part cross-references / interchanges with the following part numbers:
Is this the right CV axle shaft for the 2007-2009 Hyundai Santa Fe?
Yes, TrakMotive HY-8113 is a front left CV axle shaft that fits the 2007-2009 Hyundai Santa Fe; the front right side is a separate part.
Does the TrakMotive CV axle shaft come with the axle nut?
Yes. The axle nut is included with this front left axle, and it locks with a cotter pin.
How long is the HY-8113 axle and how many splines does it have?
TrakMotive HY-8113 measures 668 mm (26.3 in) compressed overall, with 27 splines on the inboard end and 30 on the outboard end.
Does this front left axle include an ABS tone ring?
Yes, this axle has a toothed ABS tone ring with 52 teeth, and ABS axles fit non-ABS applications unless otherwise noted.
Does HY-8113 cross-reference to 495002B160?
Yes. 495002B160 is on the interchange list for this axle, along with 5002B160 and several other numbers, so it cross-references to TrakMotive HY-8113.
