Front Left CV Axle Shaft for 2018-2021 Mercedes-Benz S560 & More - TrakMotive MB-86021

$300.99

Vehicles this part fits

    Part number: MB-86021
    UPC: 840140519617
    Condition: New
    Weight: 14.20 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $300.99
    Adding to cart… The item has been added

    Have questions?

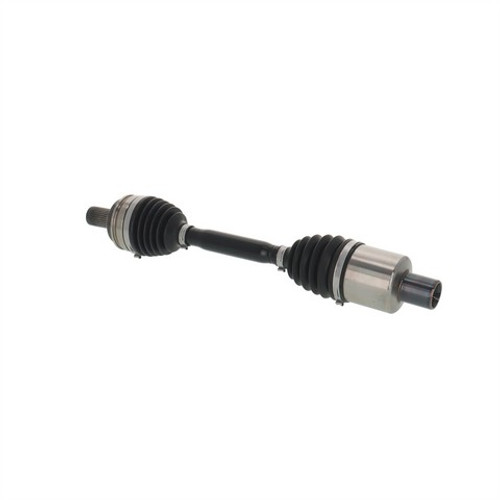

    TrakMotive CV Axle Shaft P/N:MB-86021

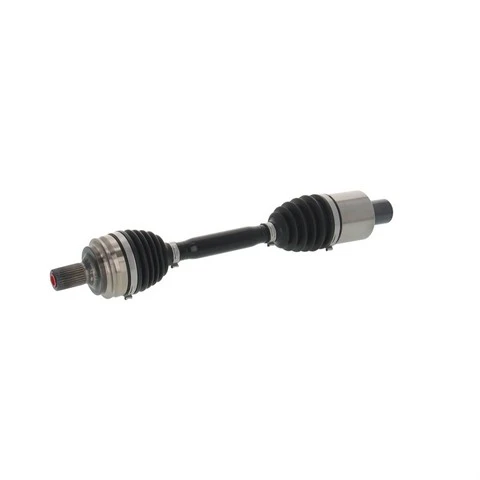

    TrakMotive CV Axle Shaft P/N:MB-86021
    $300.99
    $300.99

    TrakMotive MB-86021 front left CV axle shaft for the 2018-2021 Mercedes-Benz S560 and other vehicles carries drive torque from the transmission to the front left wheel. It replaces an axle whose joints or boots have worn out.

    • Female inboard joint with 27 splines
    • Outboard joint with 30 splines and 1 bolt hole
    • Thermoplastic boots on both the inboard and outboard joints
    • Overall length of 546 mm compressed and 598 mm extended

    Quick facts

    • Part: TrakMotive MB-86021 CV axle shaft
    • Fits: 2018-2021 Mercedes-Benz S560 and other vehicles
    • Position: Front left
    • Condition: New

    A clicking or popping noise when turning, grease thrown from a torn boot, or vibration while driving can mean the axle's joints are worn. Before you replace the axle, rule out other sources of a similar noise, such as a tire or a wheel bearing. Replacing the front axles as a pair is normal practice, but this listing is one axle for the front left.

    Fits

    This axle is listed for a wide range of Mercedes-Benz models, including the 2018-2020 Mercedes-Benz Maybach S560 and the 2018-2020 Mercedes-Benz S450. ABS axles fit non-ABS applications unless otherwise noted. Open the "Vehicles it fits" section to check your exact model and engine.

    Specifications

    Fit and size

    • Position: Front left
    • Quantity for the front left: 1
    • Overall compressed length: 21.5 in (546 mm)
    • Overall extended length: 23.56 in (598 mm)
    • Inboard splines: 27
    • Outboard splines: 30
    • Outboard joint bolt holes: 1

    Build and materials

    • Inboard joint: female, spline connection
    • Outboard joint: Audi Style Spline Bolt, spline connection
    • Joint boots: thermoplastic
    • ABS tone ring: not included
    • Condition: New
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One front left CV axle shaft; the front left takes one, and the front right is ordered separately. The axle nut is not included, so plan on a new one.

    Interchange: NCV48073

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    NCV48073, MB-86021

    Frequently Asked Questions

    Does the TrakMotive MB-86021 fit the 2018-2021 Mercedes-Benz S560?

    Yes. TrakMotive MB-86021 is a front left CV axle shaft for the 2018-2021 Mercedes-Benz S560, and the front left takes one.

    Is the axle nut included with this TrakMotive CV axle?

    No. This listing is one front left axle shaft without the axle nut, so plan on a new nut.

    How many splines does the TrakMotive MB-86021 have?

    TrakMotive MB-86021 has a female inboard joint with 27 splines. The Audi Style Spline Bolt outboard joint has 30 splines and 1 bolt hole.

    Can a torn boot on this CV axle mean it needs replacing?

    A torn boot with grease thrown around the joint, or clicking when turning, can mean the joint is worn. Have it checked and replaced promptly rather than driving on it.

    Does the TrakMotive MB-86021 come with an ABS tone ring?

    No. TrakMotive MB-86021 is sold as one front left axle shaft without an ABS tone ring.
