Front Right CV Intermediate Shaft for 2009-2013 Chevrolet Malibu & More - TrakMotive GM-3506

$109.99

Vehicles this part fits

    Part number: GM-3506
    UPC: 844084089595
    Condition: New
    Weight: 9.70 LBS
    Item Package Code: EA
    Part Has Core (Y/N): N
    Item Package Quantity: 1
    $109.99
    Adding to cart… The item has been added

    Have questions?

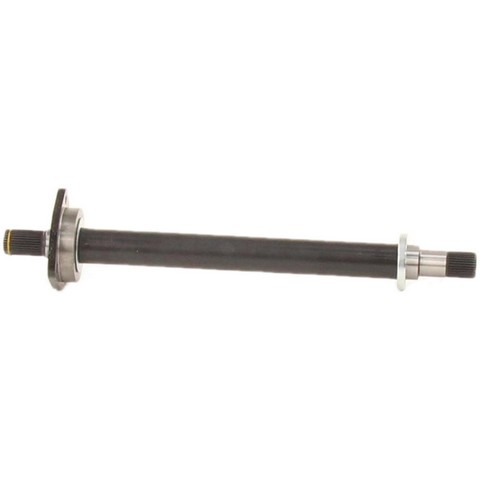

    TrakMotive CV Intermediate Shaft P/N:GM-3506
    TrakMotive CV Intermediate Shaft P/N:GM-3506
    $109.99
    $109.99

    TrakMotive GM-3506 front right CV intermediate shaft for the 2009-2013 Chevrolet Malibu and other vehicles sends drive torque toward the right front wheel.

    • New CV inner shaft for the front right position
    • 34 splines at the inboard end and 34 at the outboard end
    • Spline connection at both ends, with no bolt holes
    • Overall compressed length of 470 mm (18.5 in)

    Quick facts

    • Part: TrakMotive GM-3506 CV intermediate shaft
    • Fits: 2009-2013 Chevrolet Malibu and other vehicles
    • Position: Front right
    • Condition: New

    Vibration or noise from the right front while driving can mean an intermediate shaft is worn, though a different driveline part may be the source. Before replacing it, park the car with the engine off and look for grease spatter or visible damage you can see from the right front wheel area. A shop can test the rest.

    Fits

    This shaft fits the 2009-2013 Chevrolet Malibu, the 2009-2010 Pontiac G6 and the 2009 Saturn Aura.

    Specifications

    Fit and size

    • Position: Front right
    • Quantity per application: 1
    • Overall compressed length: 470 mm (18.5 in)
    • Inboard splines: 34
    • Outboard splines: 34

    Build and materials

    • Condition: New
    • Connection style: Spline at both ends
    • Warranty: TrakMotive limited lifetime warranty
    • Country of origin: China

    In the box

    One CV intermediate shaft; the front right position takes one. The axle nut is not included, so plan on a new one rather than reusing the old.

    Interchange: NEX10002 · 25821838

    Product information is for general reference and may contain errors. See our Disclaimer.

    This part cross-references / interchanges with the following part numbers:

    NEX10002, 25821838, GM-3506

    Frequently Asked Questions

    Does the GM-3506 fit a 2009-2010 Pontiac G6?

    Yes. TrakMotive GM-3506 is listed for the 2009-2010 Pontiac G6, as well as the 2009-2013 Chevrolet Malibu and the 2009 Saturn Aura.

    Does the front right GM-3506 shaft come with an axle nut?

    No. The axle nut is not included. This listing is one front right intermediate shaft only.

    How many splines does the TrakMotive CV intermediate shaft have?

    TrakMotive GM-3506 has 34 splines at the inboard end and 34 at the outboard end, with a spline connection at both ends.

    What can I notice if a front right intermediate shaft is wearing out?

    You can notice vibration or noise from the right front while driving, or leaked grease near the shaft.

    Does GM-3506 replace the NEX10002 shaft?

    Yes. NEX10002 and 25821838 are listed as interchange numbers for TrakMotive GM-3506.
